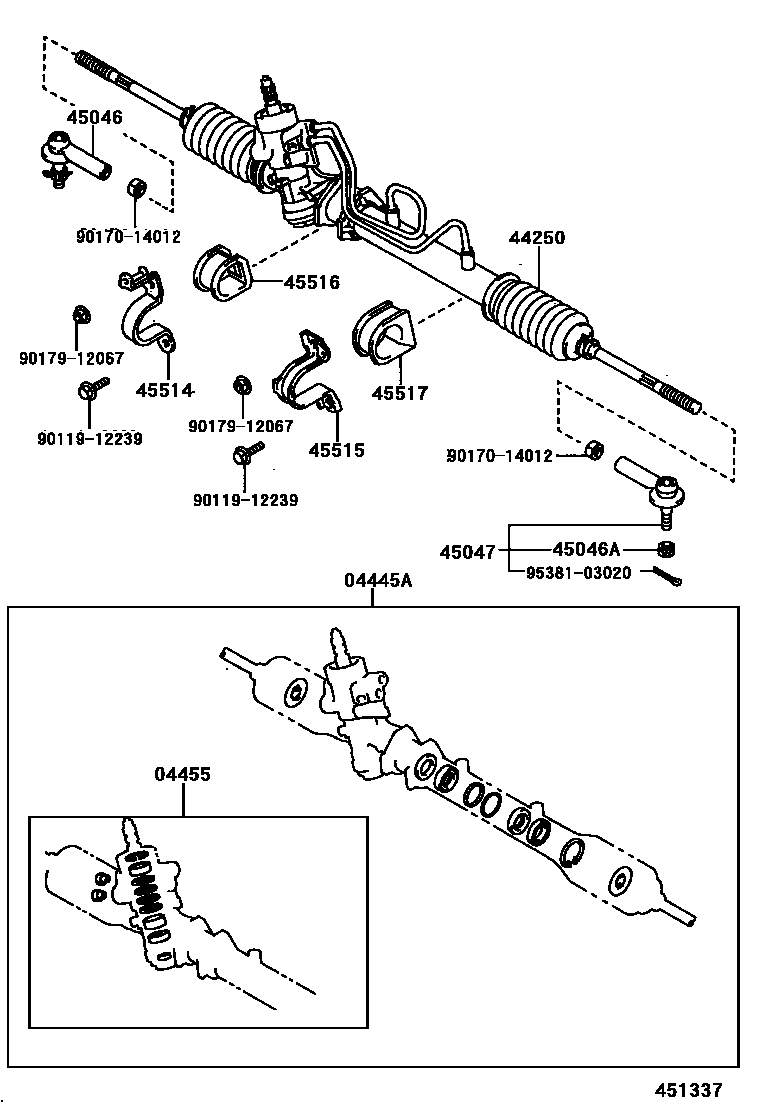

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iAE111199805-200105

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE111199805-200105

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12620iAE111199805-200105

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAE111199805-200105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE111199805

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAE111199805-200105

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE111199805

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE111199805

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE111199805

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE111199805

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
