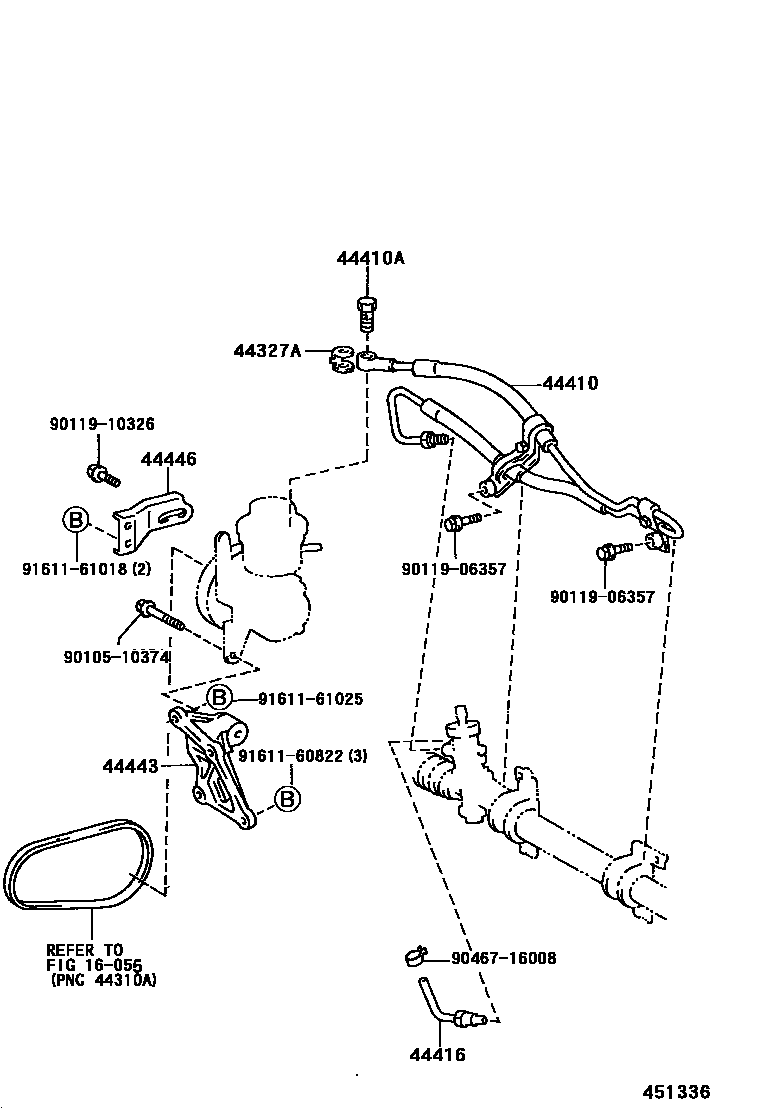

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE111199805

44410TUBE ASSY, PRESSURE FEED

main44410-12500iAE111199805

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE111199805

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12181iAE111199805

44443BRACKET, PUMP

main44443-12100iAE111199805

44446STRUT, ADJUSTING

main44446-12060iAE111199805

9010510374

main90105-10374

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

14 parts on this diagram · 1 diagram in section
