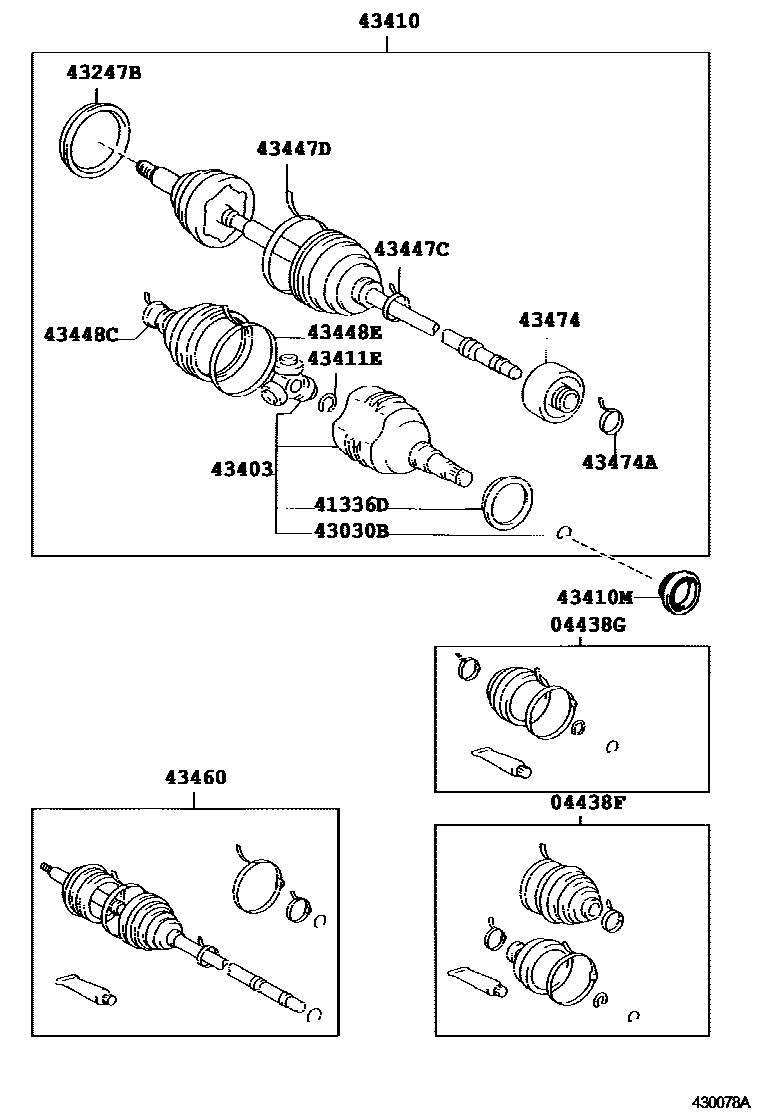

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAE111199805

sub04428-12270

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410iAE111199805

sub04438-12840

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAE111199805

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iAE111199805

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE111199805

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE111199805

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20451iAE111199805

sub43410-20452

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE111199805-199908

main90311-34023iAE111199908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAE111199805

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16010iAE111199805-199904

ID=32.5

main90949-01078iAE111199904

ID=32.7

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020iAE111199805-199904

ID=88.0

main90949-01080iAE111199904

ID=88.2

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE111199805-199904

main90949-01078iAE111199904

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAE111199805-199904

main90949-01076iAE111199904

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29168iAE111199805

sub43460-80095

43474DAMPER, DRIVE SHAFT

main43474-12040iAE111199805

sub43474-12130

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iAE111199805

16 parts on this diagram · 2 diagrams in section
