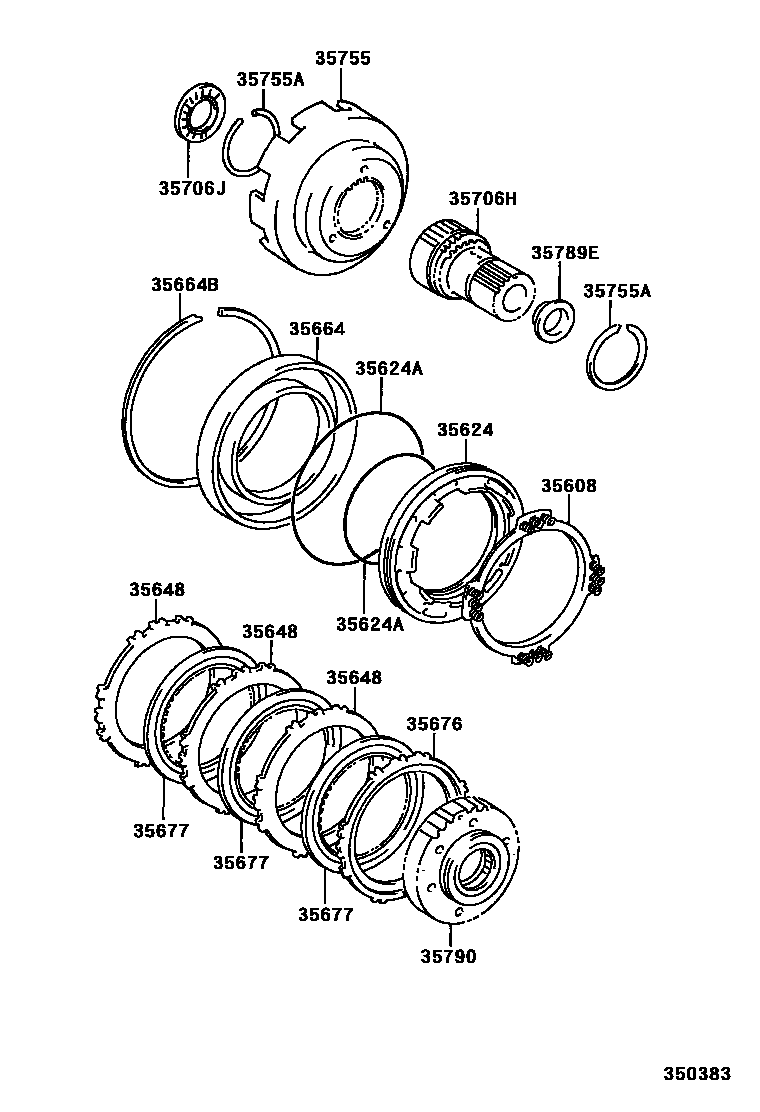

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAE111199805

35624PISTON, 2ND BRAKE

main35624-32010iAE111199805

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAE111199805-200008

INNER

main90301-99023iAE111199805-200008

OUTER

main90301-99100iAE111200008

INNER

main90301-99132iAE111200008

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010×3iAE111199805

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAE111199805

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iAE111199805

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iAE111199904

T=3.5

main35676-32010iAE111199805-199904

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070×3iAE111199805

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAE111199805

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iAE111199805

35755DRUM, SUN GEAR INPUT

main35755-32020iAE111199805

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAE111199805

T=1.2,ID=44.0

main90520-46010iAE111199805

T=2.3,ID=46.0

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAE111199805

35790CLUTCH ASSY, 1 WAY

main35790-32050iAE111199805

14 parts on this diagram · 1 diagram in section
