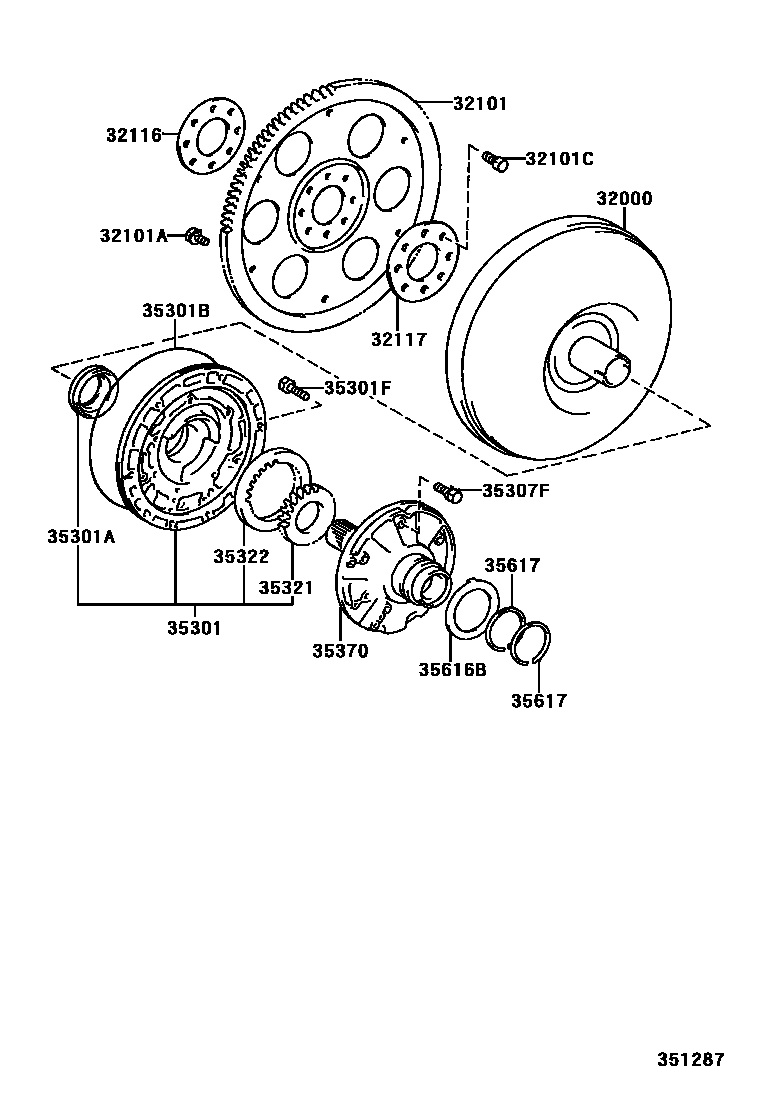

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12190iAE111199805

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12060iAE111199805

sub32101-12061

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iAE111199805

*8-1.25PX12-8.4,GREEN

main90119-08498iAE111199805

*8-1.25PX12-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iAE111199805

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-12010iAE111199805

32117SPACER, DRIVE PLATE, REAR

main32117-12010iAE111199805

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-20010iAE111199805

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE111199805-200009

main90311-38082iAE111200009

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iAE111199805

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198iAE111199805

*8-1.25PX28-28

35307FBOLT (FOR STATOR SHAFT)

main90119-06808iAE111199805

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iAE111199805

T=9.440-9.449

main35321-12080iAE111199805

T=9.450-9.459

main35321-12090iAE111199805

T=9.460-9.470

main35321-12100iAE111199805

T=9.471-9.480

main35321-12110iAE111199805

T=9.481-9.490

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iAE111199805

T=9.440-9.449

main35322-12070iAE111199805

T=9.450-9.459

main35322-12080iAE111199805

T=9.460-9.470

main35322-12090iAE111199805

T=9.471-9.480

main35322-12100iAE111199805

T=9.481-9.490

35370SHAFT ASSY, STATOR

main35370-12050iAE111199805

sub35370-32060

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iAE111199805

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iAE111199805

16 parts on this diagram · 1 diagram in section
