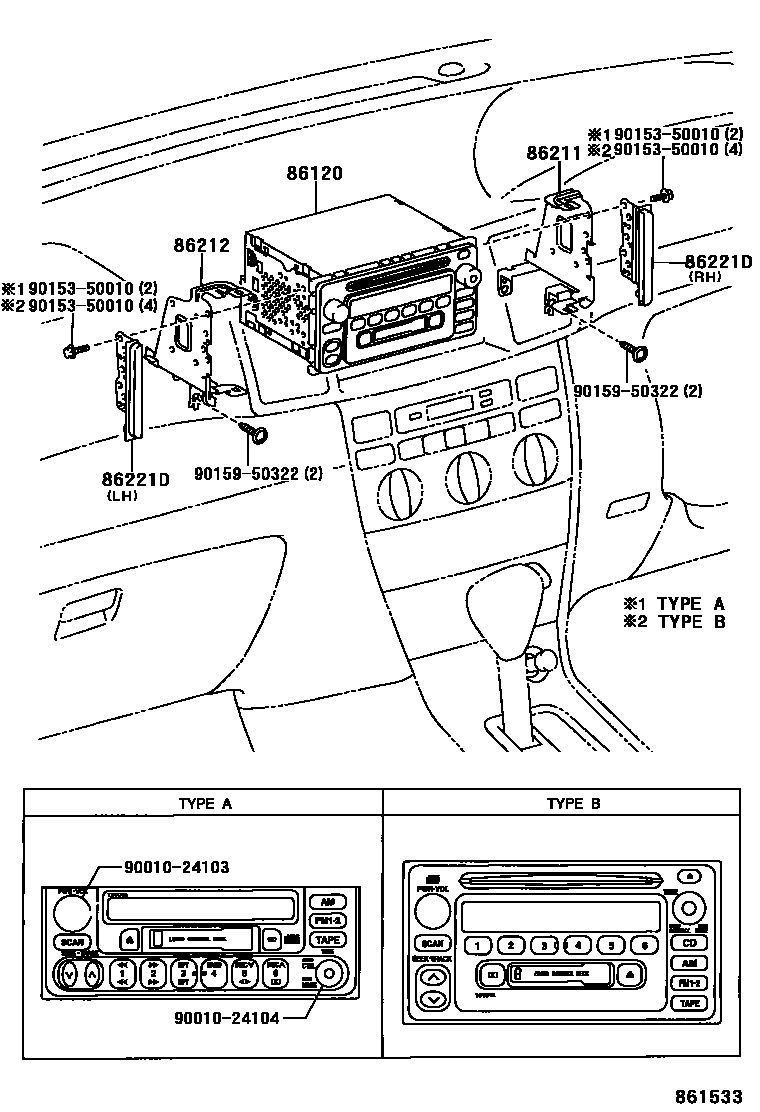

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-33460iZZE122200110-200404

MATSUSHITA,ID=57412,TYPE A:REFER TO ILLUSTRATION

main86120-33470iZZE122..LVN,ULT200404-200702

FUJITSU TEN,ID=17809,TYPE B:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-12370iZZE122200110-200404

86212BRACKET, RADIO, NO.2

main86212-12350iZZE122200110-200404

86221DPANEL, RADIO RECEIVER

main86221-52050iZZE122200110-200404

LH

main86221-52060iZZE122200110-200404

RH

9001024103

main90010-24103

9001024104

main90010-24104

9015350010

main90153-50010

9015950322

main90159-50322

8 parts on this diagram · 2 diagrams in section
