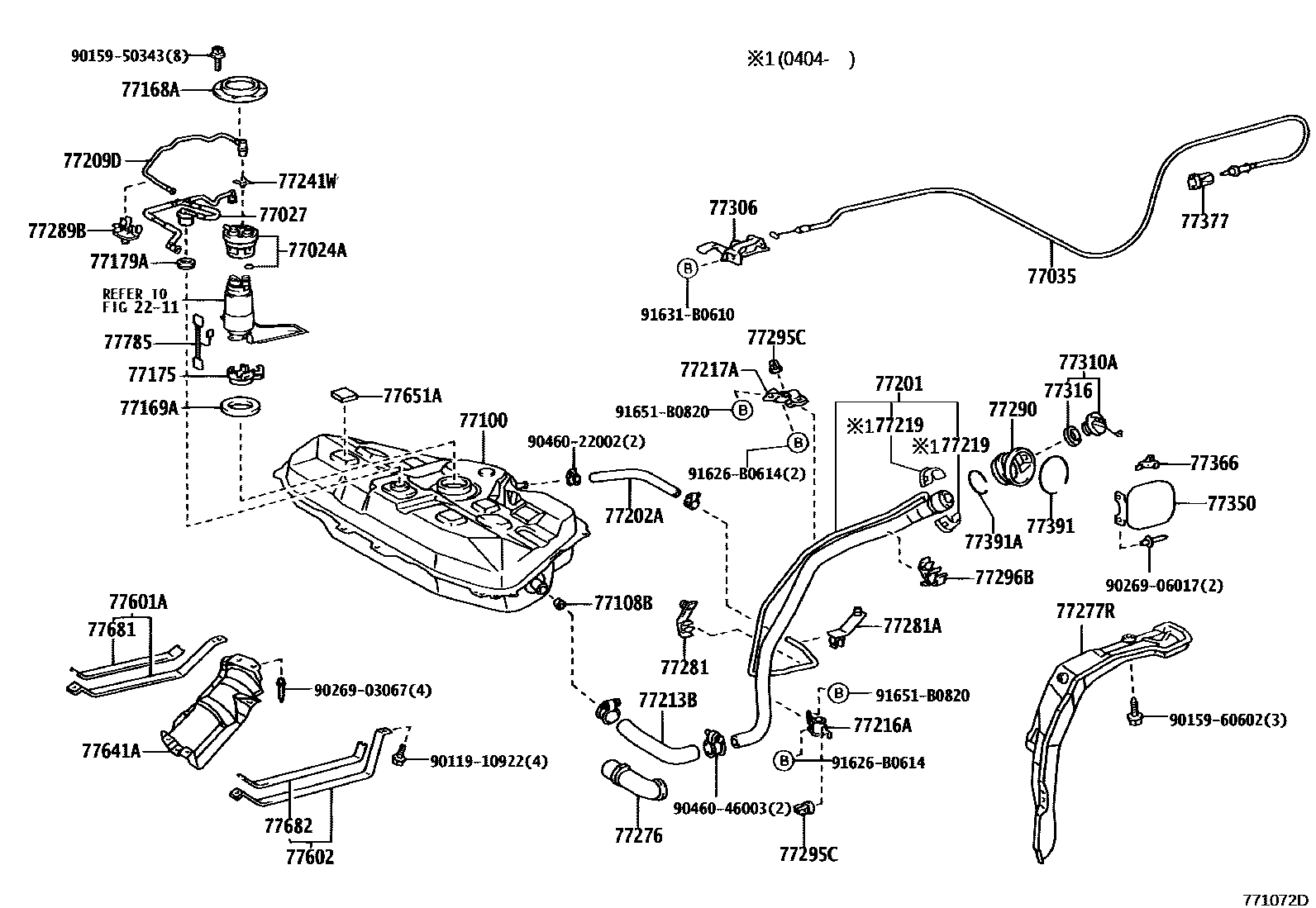

FUEL TANK & TUBE
2211
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=340
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602CASE SUB-ASSY, FUEL TANK, UPPER
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
9011910922
main90119-10922
9015950343
main90159-50343
9015960602
main90159-60602
9026903067
main90269-03067
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
91626B0614
main91626-B0614
91631B0610
main91631-B0610
91651B0820
main91651-B0820
51 parts on this diagram · 2 diagrams in section
