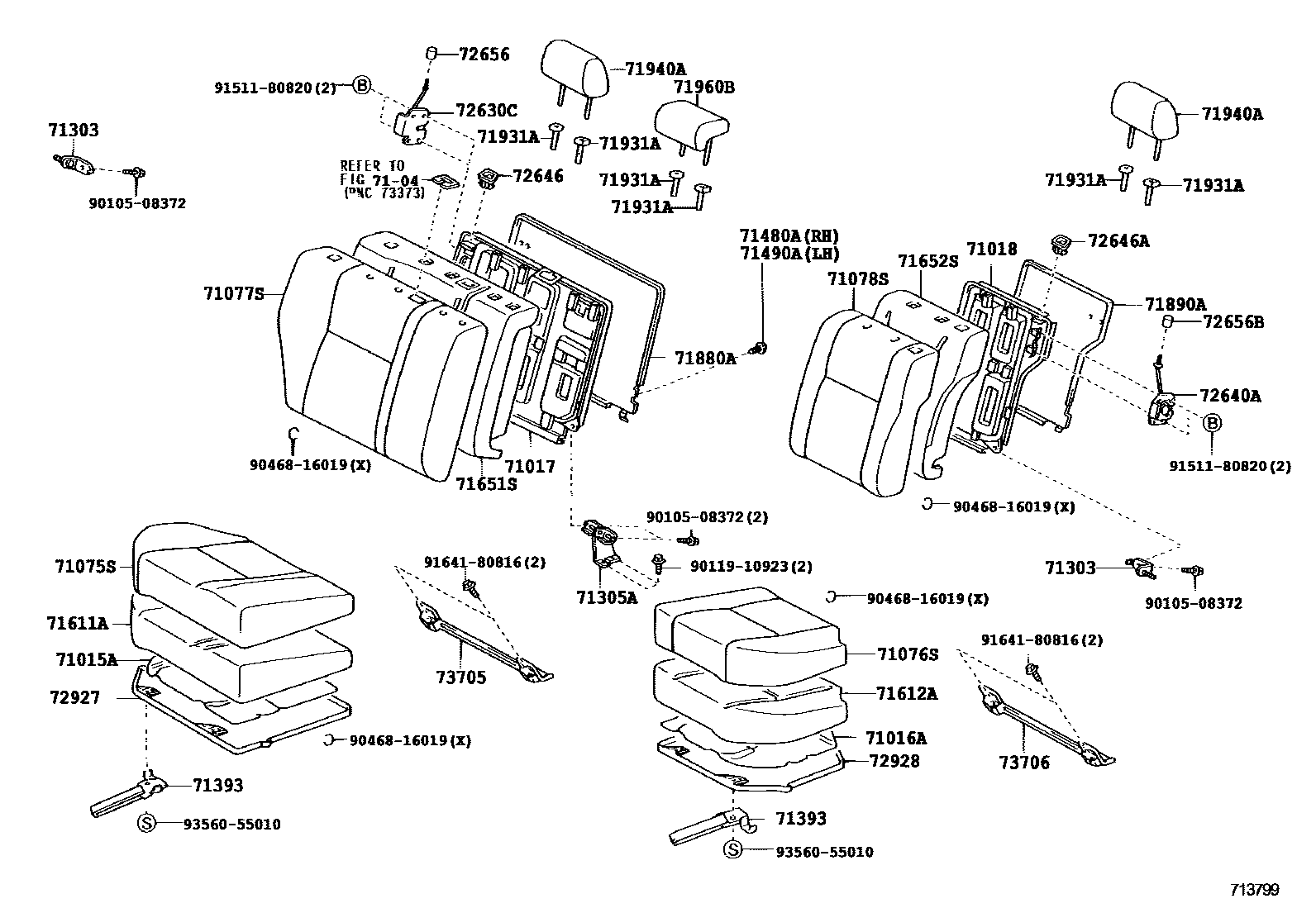

REAR SEAT & SEAT TRACK

0001 1W/O(RECLINING REAR SEAT) 0002 1

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-13070iZZE122200110-200702

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-13040iZZE122200110-200702

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02150iZZE122200411-200702

W/O(RECLINING SEAT)

main71017-13280iZZE122200110-200702

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02080iZZE122200411-200702

W/O(RECLINING SEAT)

main71018-13120iZZE122200110-200702

7104

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-12A90-A1iZZE122..ULT200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),IVORY,TRIM0#

sub71075-12A90

main71075-12A90-B0iZZE122..ULT200404-200408

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),MD.GRAY,TRIM1#

sub71075-12A90

main71075-12C00-B0iZZE122..CONQ200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71075-12C01

main71075-12C10-B0iZZE122..CONQ200404-200702

SEAT = TYPE B-*104 & W(RECLINING SEAT),DK.GRAY,TRIM1#

sub71075-12C11

main71075-12C20-B0iZZE122..ULT200411-200412

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71075-12C20

main71075-12C20-B1iZZE122..ULT200412-200702

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71075-12C20

main71075-12C30-B0iZZE122..LVN200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71075-12C40-B0iZZE122..CONQ200411-200702

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71075-12C50-B0iZZE122..CONQ200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71075-13A00-B0iZZE122..CONQ200303-200404

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71075-13A10-B0iZZE122..CONQ200303-200404

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71075-1F140-B3iZZE122..CONQ200110-200303

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71075-1F160-B0iZZE122..CONQ200110-200303

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71075-1H170-B1iZZE122..LVN200110-200404

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

sub71075-1H170

main71075-1H170-B2iZZE122..LVN200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71075-1H170

main71075-1H330-A2iZZE122..ULT200303-200404

SEAT = TYPE B-*104,IVORY,TRIM0#

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-12020-B1iZZE122..LVN200110-200404

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

sub71076-12020

main71076-12020-B2iZZE122..LVN200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71076-12020

main71076-12060-A2iZZE122..ULT200303-200404

SEAT = TYPE B-*104,IVORY,TRIM0#

main71076-12120-A1iZZE122..ULT200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),IVORY,TRIM0#

sub71076-12120

main71076-12120-B0iZZE122..ULT200404-200408

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),MD.GRAY,TRIM1#

sub71076-12120

main71076-12170-B0iZZE122..CONQ200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71076-12171

main71076-12180-B0iZZE122..CONQ200404-200702

SEAT = TYPE B-*104 & W(RECLINING SEAT),DK.GRAY,TRIM1#

sub71076-12181

main71076-12190-B0iZZE122..ULT200411-200412

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71076-12190

main71076-12190-B1iZZE122..ULT200412-200702

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71076-12190

main71076-12200-B0iZZE122..LVN200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71076-12210-B0iZZE122..CONQ200411-200702

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71076-12220-B0iZZE122..CONQ200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71076-13570-B3iZZE122..CONQ200110-200303

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71076-13590-B0iZZE122..CONQ200110-200303

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71076-13690-B0iZZE122..CONQ200303-200404

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71076-13700-B0iZZE122..CONQ200303-200404

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-12A10-B0iZZE122..CONQ200303-200404

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71077-12A20-B0iZZE122..CONQ200303-200404

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71077-12B60-A1iZZE122..ULT200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),IVORY,TRIM0#

sub71077-12B60

main71077-12B60-B0iZZE122..ULT200404-200408

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),MD.GRAY,TRIM1#

sub71077-12B60

main71077-12E10-B0iZZE122..CONQ200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71077-12E11

main71077-12E20-B0iZZE122..CONQ200404-200702

SEAT = TYPE B-*104 & W(RECLINING SEAT),DK.GRAY,TRIM1#

sub71077-12E21

main71077-12E30-B0iZZE122..ULT200411-200412

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71077-12E30

main71077-12E30-B1iZZE122..ULT200412-200702

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71077-12E30

main71077-12E40-B0iZZE122..LVN200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71077-12E50-B0iZZE122..CONQ200411-200702

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71077-12E60-B0iZZE122..CONQ200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71077-1N280-B0iZZE122..CONQ200110-200303

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

sub71077-1N281

main71077-1N300-B0iZZE122..LVN200110-200404

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

main71077-1N300-B2iZZE122..LVN200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

main71077-1N310-B1iZZE122..CONQ200110-200303

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71077-1N530-A2iZZE122..ULT200303-200404

SEAT = TYPE B-*104,IVORY,TRIM0#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-12A10-B0iZZE122..CONQ200303-200404

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71078-12A20-B0iZZE122..CONQ200303-200404

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71078-12B50-A1iZZE122..ULT200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),IVORY,TRIM0#

sub71078-12B50

main71078-12B50-B0iZZE122..ULT200404-200408

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),MD.GRAY,TRIM1#

sub71078-12B50

main71078-12D20-B0iZZE122..CONQ200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71078-12D21

main71078-12D30-B0iZZE122..CONQ200404-200702

SEAT = TYPE B-*104 & W(RECLINING SEAT),DK.GRAY,TRIM1#

sub71078-12D31

main71078-12D40-B0iZZE122..ULT200411-200412

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71078-12D40

main71078-12D40-B1iZZE122..ULT200412-200702

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

sub71078-12D40

main71078-12D50-B0iZZE122..LVN200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71078-12D60-B0iZZE122..CONQ200411-200702

SEAT = TYPE B-*104,DK.GRAY,TRIM1#

main71078-12D70-B0iZZE122..CONQ200411-200702

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71078-1K010-B1iZZE122..LVN200110-200404

SEAT = TYPE A-*104,DARK GRAY,TRIM1#

sub71078-1K010

main71078-1K010-B3iZZE122..LVN200404-200702

SEAT = TYPE A-*104 & W(RECLINING REAR SEAT),DK.GRAY,TRIM1#

sub71078-1K010

main71078-1K050-B0iZZE122..CONQ200110-200303

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

sub71078-1K051

main71078-1K070-B1iZZE122..CONQ200110-200303

SEAT = TYPE D-*104,DK.GRAY,TRIM1#

main71078-1K230-A2iZZE122..ULT200303-200404

SEAT = TYPE B-*104,IVORY,TRIM0#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-02030iZZE122200411-200702

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02060iZZE122200411-200702

71393BAND, REAR SEAT CUSHION

main71393-13120-A0iZZE122..ULT200110-200404

IVORY,TRIM0#,RH

main71393-13120-A0iZZE122..ULT200404-200702

IVORY,TRIM0#,RH SEAT

main71393-13120-C0iZZE122..CONQ,LVN200110-200404

BLACK,TRIM1#,RH

main71393-13120-C0iZZE122..CONQ,LVN200404-200702

BLACK,TRIM1#,RH SEAT

main71393-13130-A0iZZE122..ULT200404-200702

IVORY,TRIM0#,LH SEAT

main71393-13130-A0iZZE122..ULT200110-200404

IVORY,TRIM0#,LH

main71393-13130-C0iZZE122..CONQ,LVN200404-200702

BLACK,TRIM1#,LH SEAT

main71393-13130-C0iZZE122..CONQ,LVN200110-200404

BLACK,TRIM1#,LH

71480ACLIP (FOR REAR SEATBACK)

main90467-08188iZZE122200411-200702

71490ACLIP, REAR SEATBACK, LH

main90467-08188iZZE122200411-200702

71611APAD, REAR SEAT CUSHION, RH

main71611-12660iZZE122200411-200702

W/O(RECLINING SEAT)

main71611-13240iZZE122200110-200702

71612APAD, REAR SEAT CUSHION, LH

main71612-12310iZZE122200411-200702

W/O(RECLINING SEAT)

main71612-13110iZZE122200110-200702

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12820iZZE122200411-200702

W/O(RECLINING SEAT)

main71651-13320iZZE122200110-200702

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12700iZZE122200411-200702

W/O(RECLINING SEAT)

main71652-13170iZZE122200110-200702

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71885-12090-B0iZZE122..LVN200411-200702

GRAY,TRIM1#

main71885-12090-C0iZZE122..CONQ,ULT200411-200702

BLACK,TRIM1#

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71886-12080-B0iZZE122..LVN200411-200702

GRAY,TRIM1#

main71886-12080-C0iZZE122..CONQ,ULT200411-200702

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-A0iZZE122..ULT200110-200404

W(LOCK),W(CENTER HEADREST),IVORY,TRIM0#

sub71930-47010

sub71930-44020

main71930-47010-A0iZZE122..ULT200404-200702

W(LOCK),IVORY,TRIM0#,CENTER

sub71930-47010

sub71930-44020

main71930-47010-B2iZZE122200404-200702

W(LOCK),DK.GRAY,TRIM1#,CENTER

sub71930-47010

sub71930-44020

main71930-47010-B2iZZE122..CONQ,LVN200110-200404

W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1#

sub71930-47010

sub71930-44020

main71931-47010-A0iZZE122..ULT200404-200702

W/O(LOCK),IVORY,TRIM0#,CENTER

sub71931-47010

sub71931-42020

main71931-47010-A0iZZE122..ULT200110-200404

W/O(LOCK),W(CENTER HEADREST),IVORY,TRIM0#

sub71931-47010

sub71931-42020

main71931-47010-B2iZZE122..CONQ,LVN200110-200404

W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1#

sub71931-47010

sub71931-42020

main71931-47010-B2iZZE122200404-200702

W/O(LOCK),DK.GRAY,TRIM1#,CENTER

sub71931-47010

sub71931-42020

main71956-47010iZZE122..CONQ200110-200303

W/O(LOCK)

sub71956-02040

main71956-47010-A0iZZE122..ULT200110-200702

W/O(LOCK),IVORY,TRIM0#

sub71956-02040

sub71956-47010

main71956-47010-B2iZZE122..CONQ200110-200702

W/O(LOCK),DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71956-47010-B2iZZE122200411-200702

W/O(LOCK),NEWZEALAND,DK.GRAY,TRIM1#

sub71956-02040

sub71956-47010

main71970-47010-A0iZZE122..ULT200110-200702

W(LOCK),IVORY,TRIM0#

sub71970-02040

sub71970-47010

main71970-47010-B2iZZE122..CONQ,LVN200110-200702

W(LOCK),DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

main71970-47010-B2iZZE122200411-200702

W(LOCK),NEWZEALAND,DK.GRAY,TRIM1#

sub71970-02040

sub71970-47010

71940AHEADREST ASSY, REAR SEAT

main71940-12430-A0iZZE122..ULT200110-200404

IVORY,TRIM0#

main71940-12440-B0iZZE122..LVN200110-200702

DARK GRAY,TRIM1#

main71940-12460-B0iZZE122..CONQ200110-200303

DARK GRAY,TRIM1#

sub71940-12460

main71940-12560-B0iZZE122..CONQ200303-200702

DARK GRAY,TRIM1#

main71940-12680-A0iZZE122..ULT200404-200702

IVORY,TRIM0#

main71940-12680-B0iZZE122..ULT200404-200702

MD.GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-12100-A0iZZE122..ULT200110-200404

IVORY,TRIM0#

main71960-12170-B2iZZE122..CONQ200411-200702

NEWZEALAND,DARK GRAY,TRIM1#

main71960-12230-A0iZZE122..ULT200404-200702

IVORY,TRIM0#

main71960-12230-B0iZZE122..ULT200404-200609

MD.GRAY,TRIM1#

main71960-12290-B0iZZE122..ULT200411-200702

NEWZEALAND,MD.GRAY,TRIM1#

main71960-12340-B0iZZE122..LVN200411-200702

NEWZEALAND,DARK GRAY,TRIM1#

main71960-13050-B0iZZE122..LVN200110-200702

DARK GRAY,TRIM1#

main71960-13060-B0iZZE122..CONQ200110-200303

DARK GRAY,TRIM1#

main71960-13130-B0iZZE122..CONQ200303-200702

DARK GRAY,TRIM1#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-13140iZZE122200411-200702

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-13130iZZE122200411-200702

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-B6iZZE122200411-200702

DK.GRAY,TRIM1#

sub72646-33020

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-B6iZZE122200411-200702

DK.GRAY,TRIM1#

sub72646-33020

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-20020-B8iZZE122200411-200702

DK.GRAY,TRIM1#

sub72661-20020

sub72661-35010

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-20020-B8iZZE122200411-200702

DK.GRAY,TRIM1#

sub72661-20020

sub72661-35010

72927COVER, REAR SEAT CUSHION UNDER, RH

main72927-13040iZZE122200110-200702

72928COVER, REAR SEAT CUSHION UNDER, LH

main72928-13030iZZE122200110-200702

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-02050iZZE122200411-200702

W/O(RECLINING SEAT)

main73705-13010iZZE122200110-200702

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-02040iZZE122200411-200702

W/O(RECLINING SEAT)

main73706-13010iZZE122200110-200702

9010508372

main90105-08372

9011910923

main90119-10923

9046816019

main90468-16019

9151180820

main91511-80820

9164180816

main91641-80816

9356055010

main93560-55010

39 parts on this diagram · 2 diagrams in section
