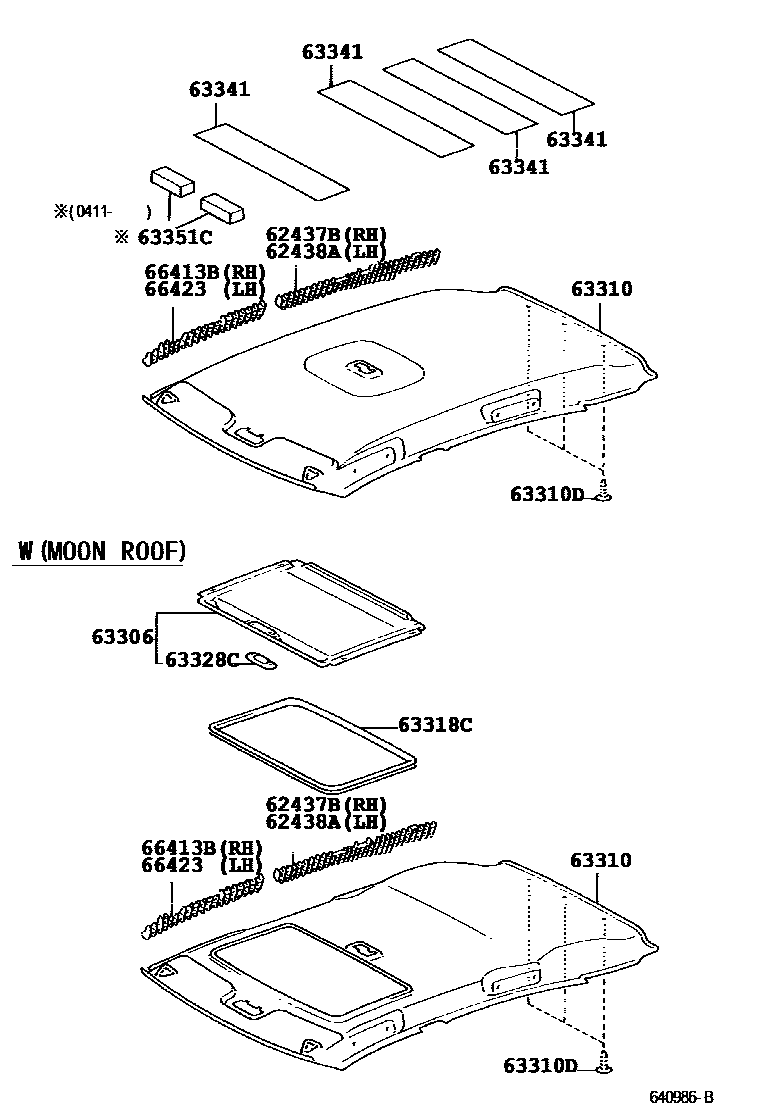

ROOF HEADLINING & SILENCER PAD

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-13010iZZE122200110-200702

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-13010iZZE122200110-200702

63306TRIM SUB-ASSY, SUNSHADE

main63306-12090-A0iZZE122..ULT200110-200702

IVORY,TRIM0#

main63306-12090-B0iZZE122..LVN200110-200702

LT. GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-13560-A0iZZE122..ULT200110-200311

W(MOON ROOF),IVORY,TRIM0#

main63310-13560-B0iZZE122..LVN200110-200311

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-13561-A0iZZE122..ULT200311-200702

W(MOON ROOF),IVORY,TRIM0#

main63310-13561-B0iZZE122..LVN200311-200702

W(MOON ROOF),LT. GRAY,TRIM1#

main63310-13570-A0iZZE122..ULT200110-200311

IVORY,TRIM0#

sub63310-13570

main63310-13570-B0iZZE122..CONQ,LVN200110-200311

LT. GRAY,TRIM1#

sub63310-13570

main63310-13571-A0iZZE122..ULT200311-200702

IVORY,TRIM0#

main63310-13571-B0iZZE122200311-200702

LT. GRAY,TRIM1#

main63310-13661-B0iZZE122200411-200702

NEW ZEALAND SPEC,LT.GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05021-A1iZZE122..ULT200110-200702

IVORY,TRIM0#

sub90467-05021

sub90467-06177

main90467-05021-P4iZZE122200110-200702

LT.GRAY,TRIM1#

sub90467-05021

sub90467-06177

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-52010-A0iZZE122..ULT200110-200702

L=2185,IVORY,TRIM0#

main63318-52010-B0iZZE122..LVN200110-200702

L=2185,LT.GRAY,TRIM1#

63328CKNOB, SUNSHADE TRIM

main63328-12030-A1iZZE122..ULT200110-200702

IVORY,TRIM0#

main63328-12030-B7iZZE122..LVN200110-200702

LT.GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-16010iZZE122200110-200702

sub63341-12330

63351CPAD, ROOF HEADLINING

main63351-13020iZZE122200411-200702

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12010iZZE122200110-200702

10 parts on this diagram · 1 diagram in section
