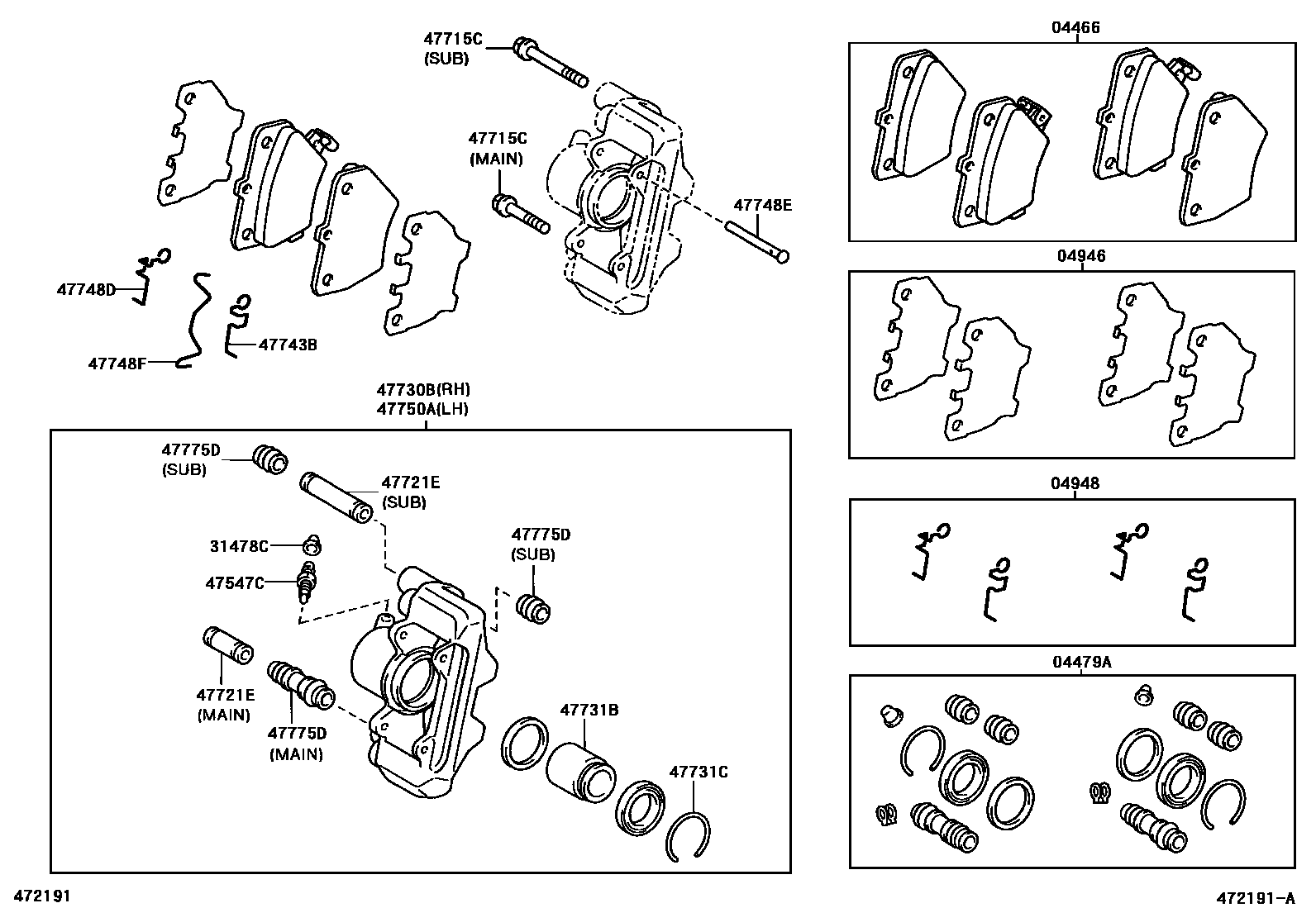

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-20090iZZE122200110-200404

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20340iZZE122..CONQ200510-200702

main04479-42020iZZE122200110-200404

main04479-52030iZZE122..CONQ200404-200510

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iZZE122200110-200404

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iZZE122200110-200404

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZZE122200110-200404

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iZZE122200110-200404

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030×2iZZE122200404-200702

MAIN

main47715-20040×2iZZE122200404-200702

SUB

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053×2iZZE122200110-200404

SUB

main90389-10054×2iZZE122200110-200404

MAIN

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12500iZZE122..LVN,ULT200404

main47730-20630iZZE122..CONQ200510-200702

47731BPISTON, REAR DISC BRAKE

main47731-20250×2iZZE122..CONQ200510-200702

main47731-42020×2iZZE122200110-200404

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-37016×2iZZE122200110-200404

main90522-40043×2iZZE122..CONQ200510-200702

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030×2iZZE122200404-200702

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040×2iZZE122200404-200702

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021×4iZZE122200404-200702

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025×2iZZE122200110-200404

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12500iZZE122..CONQ200510-200702

W(ABS)

main47750-20620iZZE122..CONQ200510-200702

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2iZZE122200110-200404

MAIN

main47775-42010×4iZZE122200404-200702

SUB

17 parts on this diagram · 1 diagram in section
