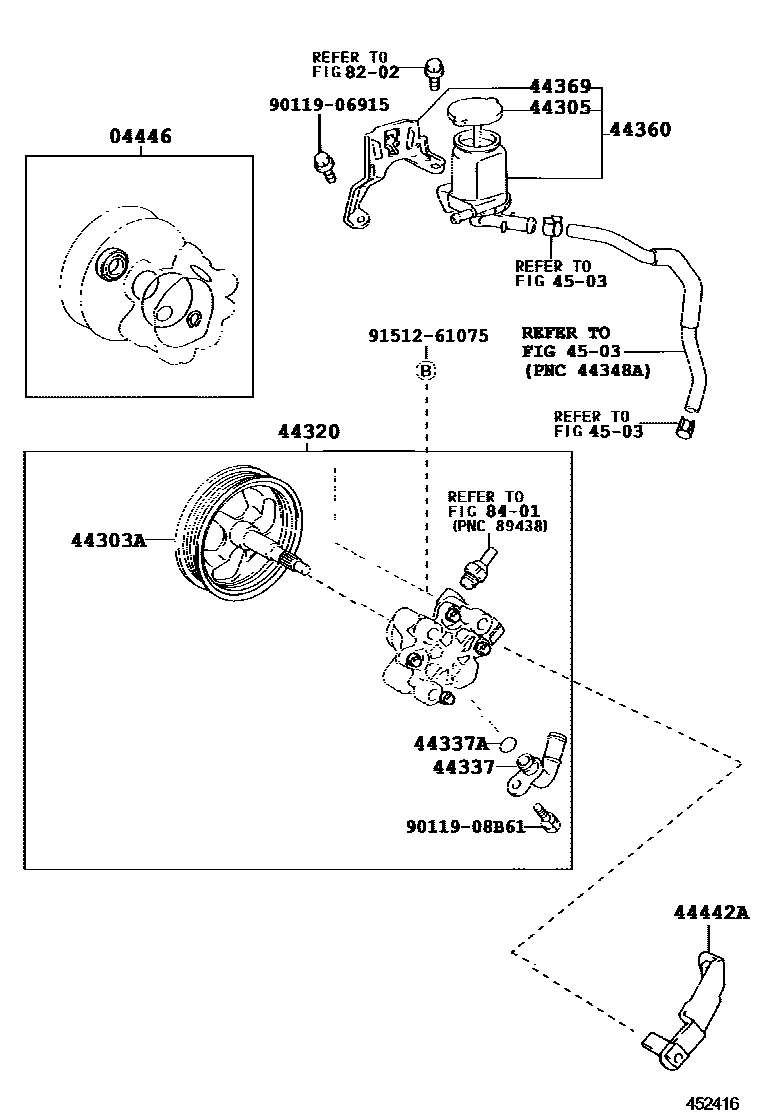

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iZZE122200510-200702

main04446-32050iZZE122200110-200404

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-32010iZZE122200404-200702

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iZZE122200110-200404

sub44305-28060

44320PUMP ASSY, VANE

main44310-12540iZZE122200110-200404

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iZZE122200404-200702

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iZZE122200110-200404

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12100iZZE122200110-200404

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE122200110-200404

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE122200110-200404

4503

8202

8401

9011906915

main90119-06915

9011908B61

main90119-08B61

9151261075

main91512-61075

15 parts on this diagram · 1 diagram in section
