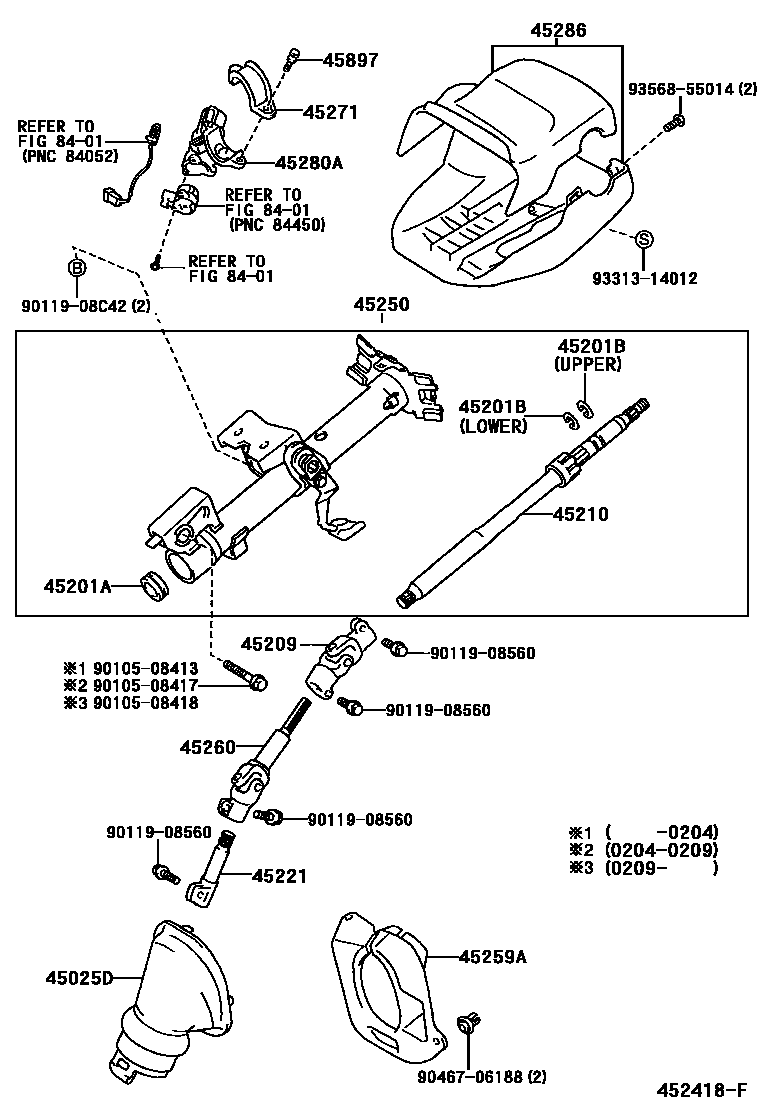

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12230iZZE122200110-200510

main45025-13020iZZE122200510-200702

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-42010iZZE122200110-200702

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iZZE122200110-200702

T=1.20,LOWER

main90520-17269iZZE122200110-200702

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12150iZZE122200110-200509

sub45209-12151

main45209-12151iZZE122200510-200702

45210SHAFT ASSY, STEERING MAIN

main45210-42020iZZE122200110-200702

45221SHAFT, STEERING INTERMEDIATE

main45221-12291iZZE122200110-200702

45250COLUMN ASSY, STEERING

main45250-1E200iZZE122200110-200702

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iZZE122200110-200702

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12460iZZE122200110-200404

sub45260-12461

main45260-12461iZZE122200404-200702

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iZZE122200110-200702

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52020iZZE122..MTM200110-200702

sub45280-52030

main45280-52030iZZE122..ATM200110-200702

45286COVER, STEERING COLUMN

main45286-12968-B2iZZE122..CONQ,LVN200110-200702

DK.GRAY,TRIM1#

sub45286-12967

main45286-12968-E0iZZE122200110-200404

SANDAL WOOD,TRIM0#

sub45286-12967

45897BOLT, STEERING LOCK SET

main45897-12020iZZE122200110-200702

8401

9010508413

main90105-08413

9010508417

main90105-08417

9010508418

main90105-08418

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

22 parts on this diagram · 1 diagram in section
