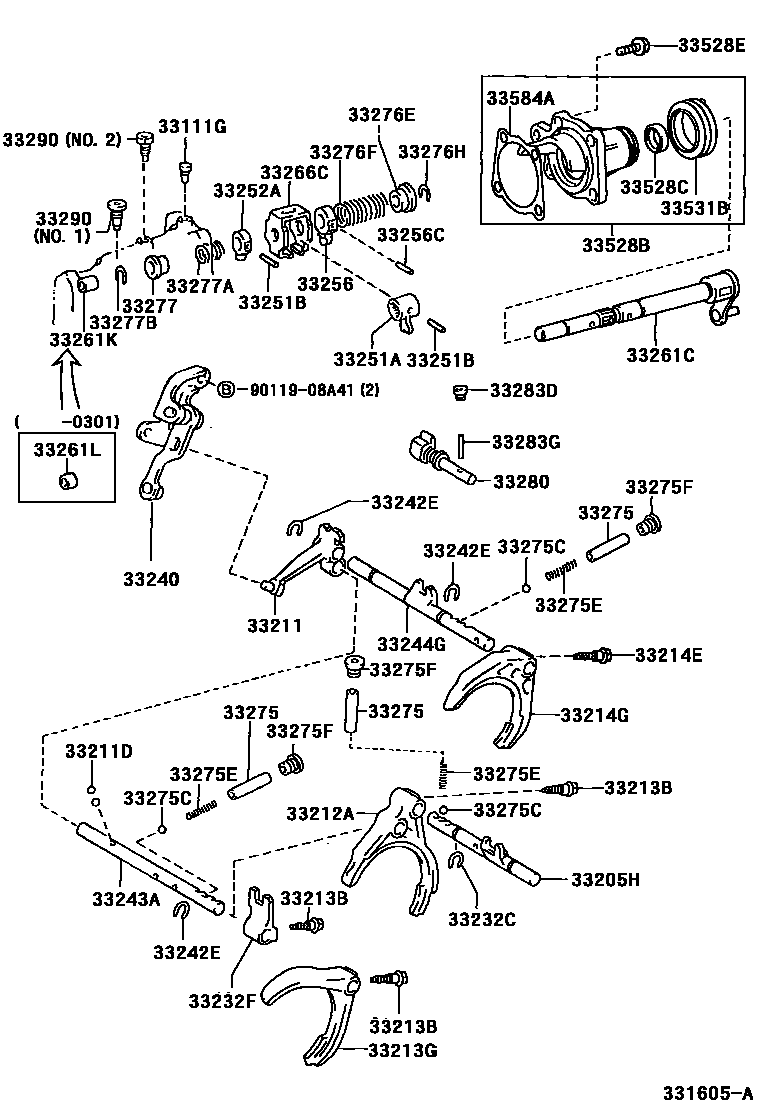

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
T=10.4
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
NO.1
NO.2
NO.2
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
*10-1.25PX25-25
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908A41
main90119-08A41
44 parts on this diagram · 1 diagram in section
