HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

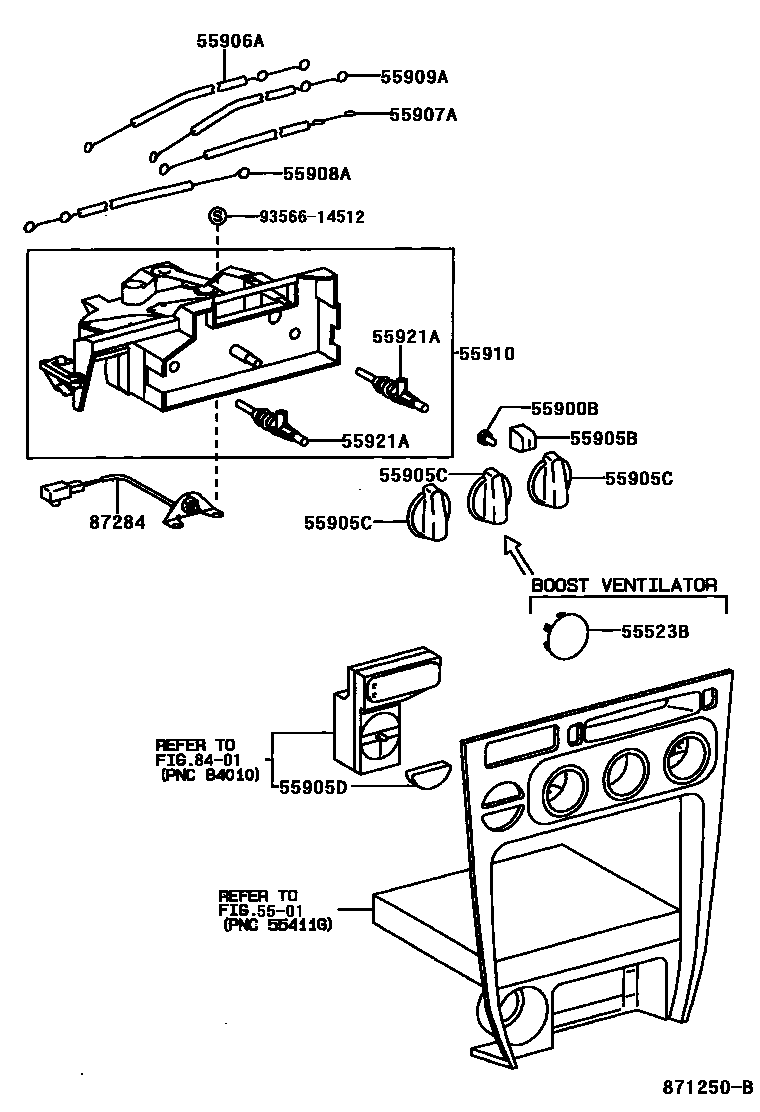

0001 1HEATER CONTROL---LEVER TYPE 0002 1HEATER CONTROL---PUSH TYPE 0003 1AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55523BCOVER, HEATER CONTROL OPENING

main55523-12100-B0iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

DK.CHARCOAL,TRIM1#

55900BBULB, AIR CONDITIONER CONTROL

main90010-05102iAE111..GLI..GEN199704-199910

14V 1.12W,W(CAP)

main90981-11014iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

14V 1.4W

55905BKNOB, HEATER CONTROL, NO.2

main55905-12450-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main55905-12450-B1iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

DK.CHARCOAL,TRIM1#

55905CKNOB, HEATER CONTROL, NO.3

main55905-12440-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main55905-12440-B1iAE11#,EE110..GCC,GEN199704-200109

DK.CHARCOAL,TRIM1#

main55905-12440-B1iAE11#,EE110..GCC,GEN199704-200109

W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#

main55905-12440-B1iAE11#,EE110..GCC,GEN199704-200109

DEALER OPTION,DK.CHARCOAL,TRIM1#

55905DKNOB SUB-ASSY, CONTROL

main55905-12490-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main55905-12490-B1iAE11#,EE110..RHD199704-200109

DK.CHARCOAL,TRIM1#

main55905-12500-B1iAE112,EE110..GCC199704-200008

DK.CHARCOAL,TRIM1#

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12380iAE11#,EE110..LHD199704-200008

main55906-12390iAE11#..RHD..(ARL,GEN)199704-200109

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12450iAE112,EE110..GCC199704-200008

main55907-12470iAE11#..RHD..(ARL,GEN)199704-200109

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12290iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12280iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12650iAE111..GLI..GEN199704-200109

HEATER CONTROL---PUSH TYPE

main55910-12660iAE111,EE110..RHD..GEN199704-200109

W(HEATER)

main55910-12660iAE11#..ARL199710-200109

main55910-12670iAE111..GLI..GEN199704-200109

W(COOLER)

main55910-12680iAE111,EE110..RHD..GEN199704-200109

main55910-12690iAE11#,EE110..LHD199704-200008

W(HEATER)

main55910-12700iAE111..GL199704-199910

W(COOLER)

main55910-12710iAE112,EE110..GCC199704-200008

55921ARETAINER, HEATER CONTROL

main55921-12080iAE111..GLI..GEN199704-200109

HEATER CONTROL---PUSH TYPE

main55921-12090iAE111..GLI199704-200109

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12170iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

9356614512

main93566-14512

15 parts on this diagram · 3 diagrams in section
