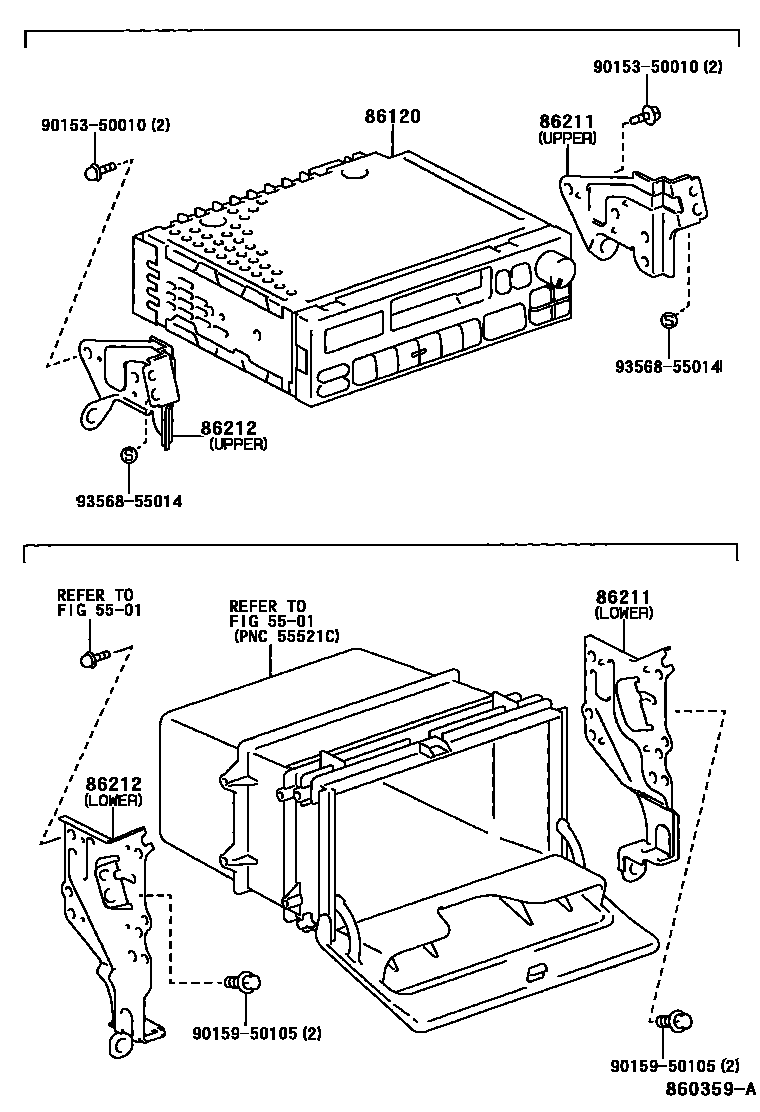

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

5501

86120RECEIVER ASSY, RADIO

main86120-08020iAE111..GLI..GEN199804-200109

FUJITSU TEN,ID=11801,AM/FM CD

main86120-10470iAE11#,EE110..GCC,GEN199808-200109

MATSUSHITA, ID=57207,AM/SW1/SW2 CASSETTE

main86120-16650iAE111,EE110..GEN199808-200109

MATSUSHITA, ID=52201,AM/FM

main86120-16660iAE111..GLI..GEN;AE112,EE110..GCC199808-200109

FUJITSU TEN,ID=17409,AM/FM CASSETTE 2 SPEAKER

main86120-16680iAE112,EE110..GCC199808-200008

MATSUSHITA, ID=57206,AM/FM/SW1/SW2

main86120-1A030iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

FUJITSU TEN,AM/FM CASSETTE 4 SPEAKER

main86120-1A040iAE111,EE110..GEN199704-199808

FUJITSU TEN,ID=12101,AM

main86120-2A070iAE111,EE110..GEN199704-199808

MATSUSHITA,AM/FM

main86120-2A190iAE11#,EE110..GCC,GEN199704-199808

MATSUSHITA,ID=57202,AM/SW1/SW2 CASSETTE

sub86120-35100

main86120-2B360iAE111,EE110..GEN199704-199808

MATSUSHITA,ID=57400,AM/FM CASSETTE 4 SPEAKER

main86120-2B380iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

FUJITSU TEN,ID=17202,AM/FM CASSETTE 2 SPEAKER

main86120-2B610iAE111..GLI..GEN;AE112,EE110..GCC199808-200109

FUJITSU TEN,ID=17411,AM/FM CASSETTE 4 SPEAKER

main86120-2B610iAE11#..ARL199808-200109

FUJITSU TEN,ID=17411

main86120-2B620iAE111,EE110..GEN199808-200109

MATSUSHITA,ID=57410,AM/FM CASSETTE 4 SPEAKER

main86120-35080iAE111,EE110..GEN199808-200109

MATSUSHITA,ID=52100,AM

sub86120-60N00

main86120-35100iAE112,EE110..GCC199704-199808

MATSUSHITA,ID=57401,AM/FM/SW1/SW2

86211BRACKET, RADIO, NO.1

main86211-12340iAE11#,EE110199704-200109

UPPER

main86211-12350iAE11#,EE110199704-200109

LOWER

main86211-12360iAE11#..ARL199910-200109

UPPER

86212BRACKET, RADIO, NO.2

main86212-12320iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

UPPER

main86212-12330iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

LOWER

main86212-12340iAE11#..ARL199910-200109

UPPER

9015350010

main90153-50010

9015950105

main90159-50105

9356855014

main93568-55014

7 parts on this diagram · 4 diagrams in section
