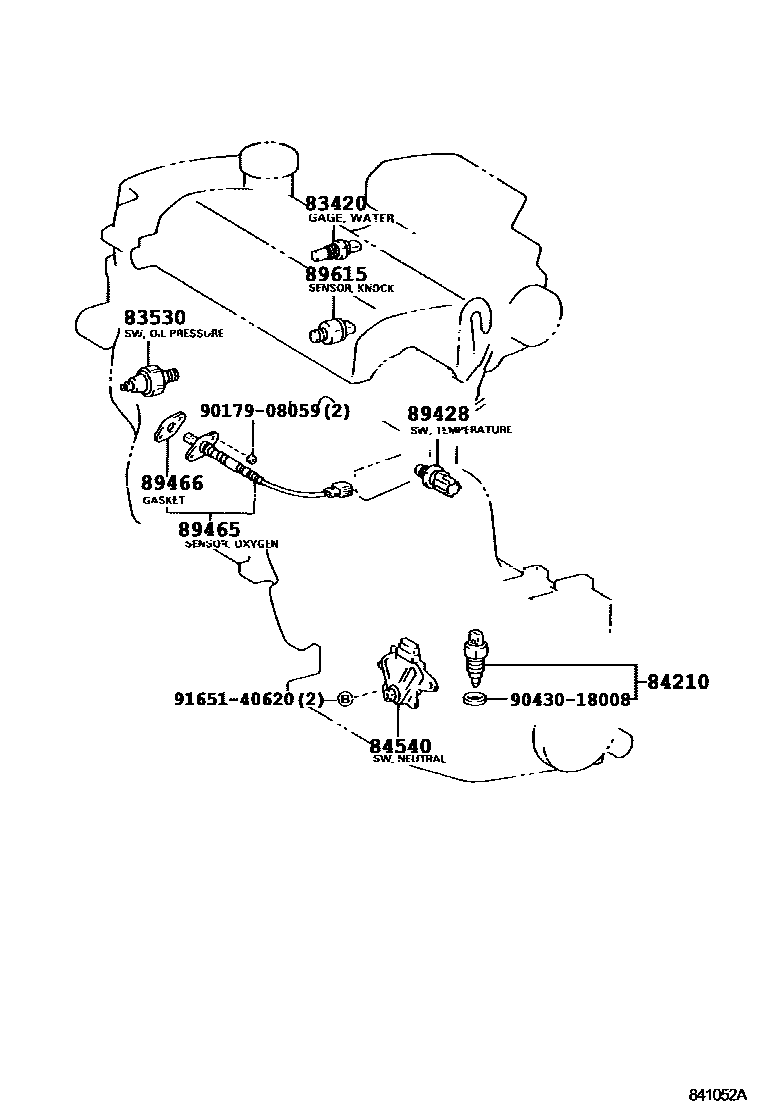

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE111,EE110..GL,XL199704-200008

main83420-20040iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE11#,EE110..GLI,XL,XLI199803-200109

DENSO

main83530-30051iAE111..GL199704-199803

sub83530-60050

main83530-30090iAE111..GLI..GEN;AE112,EE110..GCC199704-199803

sub83530-60020

main83530-60020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199803-200109

YAZAKI

main83530-60050iAE111..GL199803-199910

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iAE11#..4FC199704-200109

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

89465SENSOR, OXYGEN

main89465-12520iAE111..4FC..GEN199808-200010

main89465-19675iAE112..ARL;AE111..4FC..ARL;AE111..RHD..5F..(ARL,GEN)199704-200109

main89465-19745iAE111..5F;AE111..4FC..ARL199912-200109

89466GASKET, OXYGEN SENSOR

main89466-12020iAE11#..RHD199704-200109

89615SENSOR, KNOCK CONTROL

main89615-12030iAE11#..(GLI,XLI)..(ARL,GCC,GEN)199704-199809

TOYOTA

sub89615-22050

main89615-22030iAE11#..GLI,XLI199704-199909

MATSUSHITA

main89615-22050iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199809-200109

TOYOTA

sub89615-52010

main89615-52010iAE11#..GLI,GT,XLI199909-200109

MATSUSHITA

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

11 parts on this diagram · 10 diagrams in section
