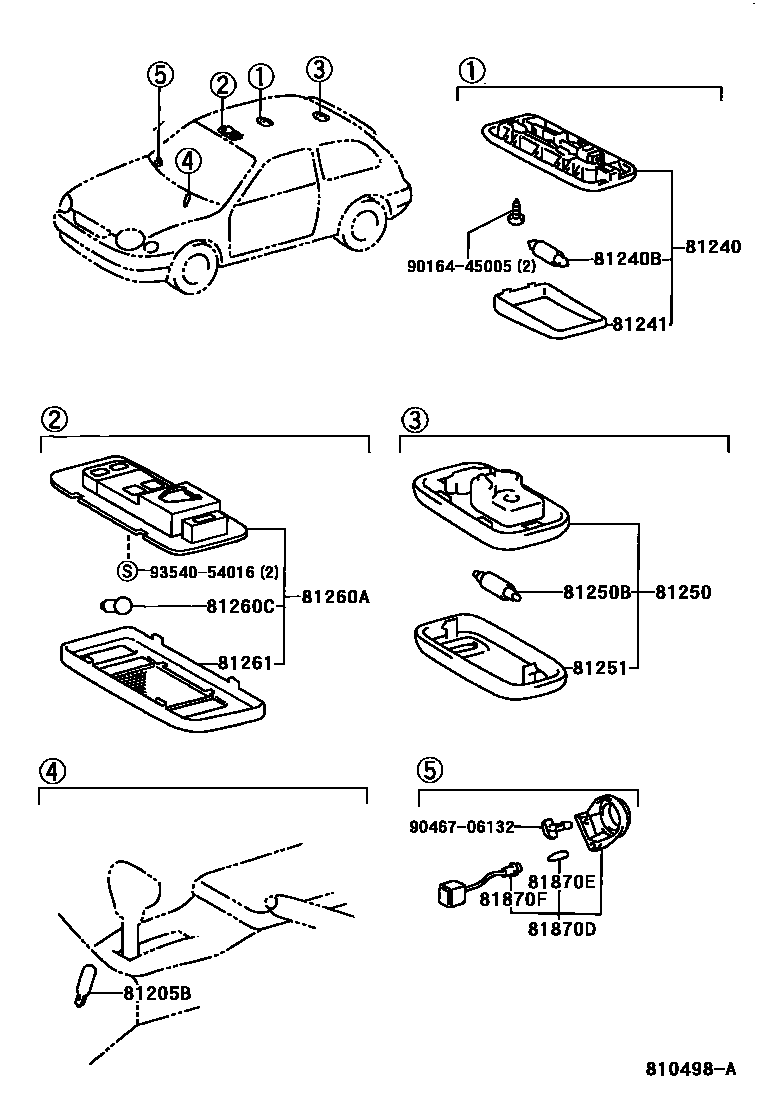

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

12V 1.2W W/O SOCKET

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B6iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAE11#,EE110199704-199910

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

81250LAMP ASSY, ROOM, NO.2

main81250-12030-B5iAE11#200101-200109

DK.GRAY,TRIM1#

sub81250-95J05

main81250-12030-P0iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200101

SHADOW GRAY,TRIM1#

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE11#,EE110199704-199910

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

81260ALAMP ASSY, MAP

main81260-20160-B2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12014iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20160-B4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

81870DLAMP ASSY, KEY CYLINDER

main81870-32051iAE112..NZ199710-199808

sub81870-33020

81870EBULB, KEY CYLINDER LAMP

main90981-11018iAE112..NZ199710-199808

12V 1.2W W/O SOCKET

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iAE112..NZ199710-199810

9016445005

main90164-45005

9046706132

main90467-06132

9354054016

main93540-54016

16 parts on this diagram · 1 diagram in section
