BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-13010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

74413BOLT, BATTERY CLAMP

main74451-12061iAE111..GLI..GEN;AE112,EE110..GCC199704-199807

main74451-12130iAE11#200009-200109

sub74451-12140

74431TRAY, BATTERY

main74431-12020iAE111..5F;AE112,EE110;AE111..4FC..(ARL,GEN)199704-199910

main74431-12030iAE111..4FC..NZ199807-199810

main74431-12060iAE11#..ARL199808-200109

W(32B24L BATTERY)

74481CLAMP, BATTERY HOLD DOWN

main74404-12290iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

main74404-12320iAE111..4FC..NZ199807-199810

main74404-12330iAE11#..ARL199808-200109

W(32B24L BATTERY)

9017906146

main90179-06146

91621B0612

main91621-B0612

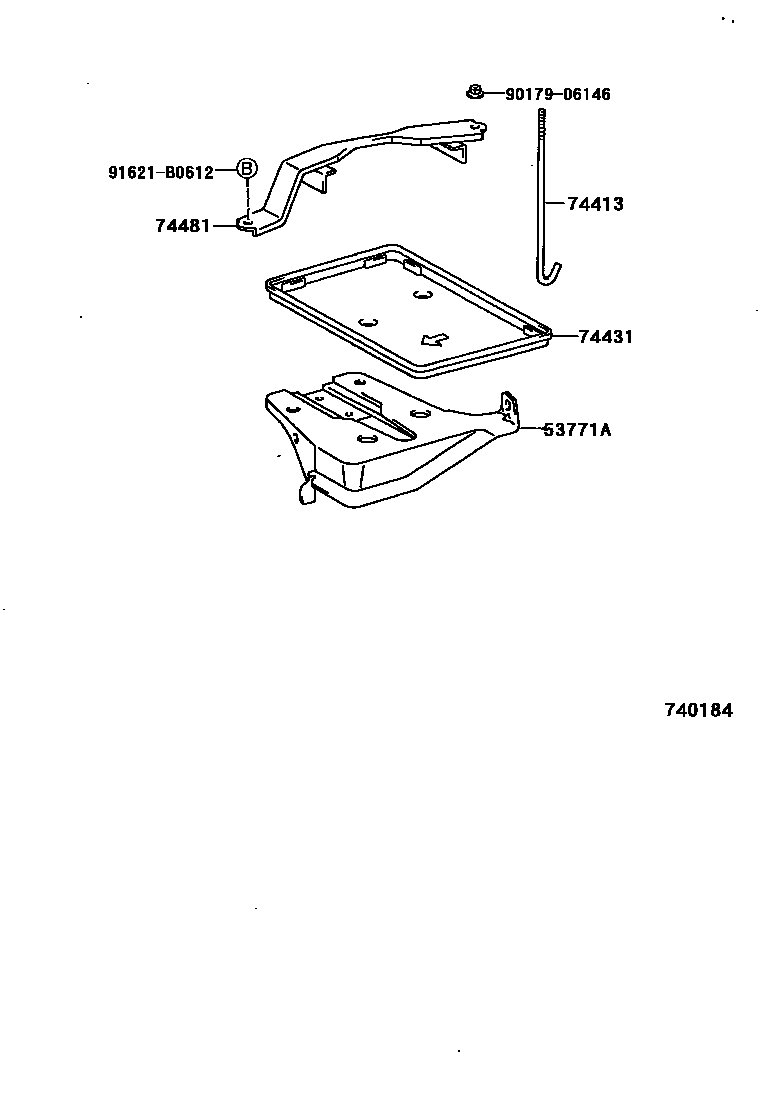

6 parts on this diagram · 1 diagram in section
