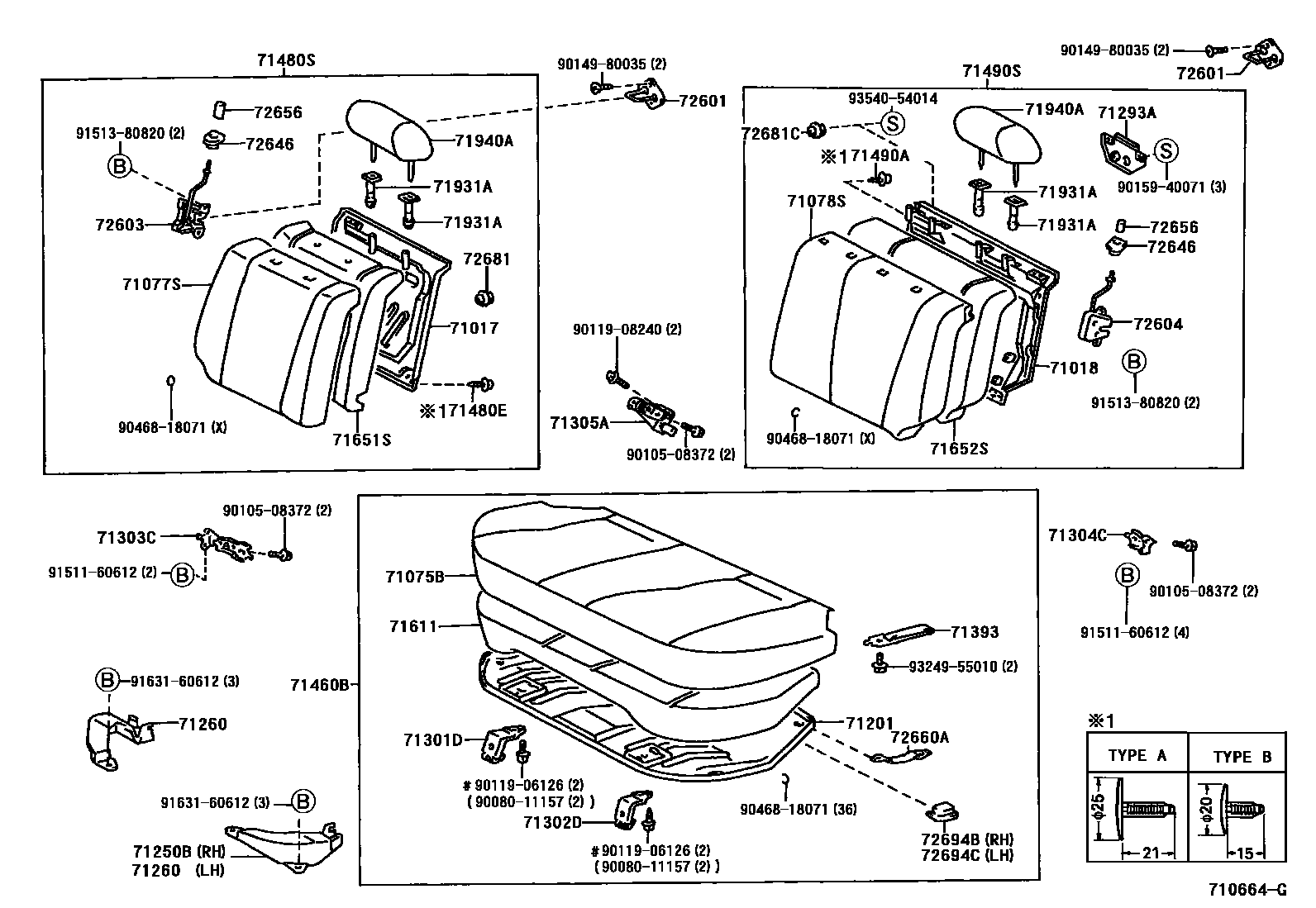

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-12500iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199808-200109

main71017-12540iEE110..GEN199704-199910

W(*80)

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-12200iAE11#..ARL199808-200109

main71018-12210iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main71018-12260iEE110..GEN199704-199910

W(*80)

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-1E460-B0iEE110..GEN199704-199910

LEATHER TYPE-*104,MD. CHARC0AL,TRIM1#

main71065-1E470-B0iAE112,EE110..GCC199704-199901

MD. CHARC0AL,TRIM1#

main71065-1E480-B0iAE11#..XLI..ARL199808-199910

MD. CHARC0AL,TRIM1#

main71065-1E500-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD. CHARC0AL,TRIM1#

main71065-1E651-B4iAE11#..(GLI,XLI)..ARL199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71065-1E841-B2iAE112..GT199910-200109

SEAT = TYPE H-*104,BLACK,TRIM1#

main71075-1H050-B0iAE111..GEN199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71075-1H060-B0iAE11#,EE110..XL,XLI199910-200109

SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

main71075-1H070-B1iAE11#..XLI..ARL199910-200109

SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-1L370-B0iEE110..GEN199704-199910

MD. CHARCOAL,TRIM1#

main71077-1L380-B0iAE111..XLI199710-199808

MD. CHARCOAL,TRIM1#

main71077-1L400-B0iAE11#..GL,GLI199704-199808

MD. CHARCOAL,TRIM1#

main71077-1L410-B0iEE110..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main71077-1L790-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main71077-1L792-B4iAE11#..(GLI,XLI)..ARL199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71077-1L830-B1iAE112..XLI..ARL199904-199906

SHADOW GRAY,TRIM1#

main71077-1L831-B2iAE112..GT199910-200109

SEAT = TYPE H-*104,BLACK,TRIM1#

main71077-1N020-B0iAE111..GEN199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71077-1N030-B0iAE11#,EE110..XL,XLI199910-200109

SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-1E400-B0iEE110..GEN199704-199910

MD. CHARCOAL,TRIM1#

main71078-1E410-B0iAE11#..XLI..ARL199808-199910

MD. CHARCOAL,TRIM1#

main71078-1E410-B8iAE111..ARL199901-199910

MEDIUM CHARCOAL,TRIM1#

main71078-1E430-B0iAE111..GLI..GEN199704-199910

MD. CHARCOAL,TRIM1#

main71078-1E440-B0iEE110..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main71078-1E590-B0iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main71078-1E592-B4iAE11#..(GLI,XLI)..ARL199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

sub71078-1E422

main71078-1E640-B0iAE111..XLI199710-199808

MD.CHARCOAL,TRIM1#

main71078-1E660-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main71078-1E661-B2iAE112..GT199910-200109

SEAT = TYPE H-*104,BLACK,TRIM1#

sub71078-1E671

main71078-1E770-B0iAE111..GEN199910-200109

SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71078-1E780-B0iAE112,EE110..GCC199910-200008

SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

main71078-1E790-B0iAE11#..XLI..ARL199910-200109

SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

71201PANEL SUB-ASSY, REAR SEAT CUSHION

main71201-13150iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199808-200109

71250BBRACKET ASSY, SEAT, OUTER RH

main71250-13010iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71260BRACKET ASSY, SEAT, OUTER LH

main71260-13010iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71293APLATE, REAR SEATBACK, UPPER

main71293-12030iAE11#..ARL199808-200109

71301DHINGE SUB-ASSY, REAR SEAT, RH

main71301-13070iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71302DHINGE SUB-ASSY, REAR SEAT, LH

main71302-13030iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-12150iAE11#,EE110..ARL,GCC,GEN199808-199910

71393BAND, REAR SEAT CUSHION

main71393-13080-B0iAE11#..RHD..(ARL,GEN)199808-199910

SHADOW GRAY,TRIM1#

main71393-13080-B6iAE112,EE110..GCC199910-200008

FABRIC TYPE-*104,GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-1E430-B0iEE110..GEN199704-199910

***,LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main71560-1E440-B0iEE110..GEN199704-199901

***,FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#

main71560-1E450-B0iAE11#..XLI..ARL199808-199910

***,MD. CHARCOAL,TRIM1#

main71560-1E470-B0iAE111..ARL199808-199910

***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main71560-1E680-B1iAE112..XLI..ARL199904-199906

***,AUSTRALIA,SHADOW GRAY,TRIM12

main71560-1E681-B2iAE112..GT199910-200109

***,SEAT = TYPE H-*104,BLACK,TRIM1#

main71560-1E741-B4iAE11#..(GLI,XLI)..ARL199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71560-1E870-B0iAE111..GEN199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71560-1E880-B0iAE11#,EE110..XL,XLI199910-200109

***,SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

main71560-1E890-B1iAE11#..XLI..ARL199910-200109

***,SEAT = TYPE M-*104,MIDIUM CHARCOAL,TRIM1#

71480ECLIP, REAR SEATBACK, RH

main90467-06016-P0×3iAE112..GCC;AE112..GLI..ARL;AE111,EE110..ARL,GCC,GEN199808-199910

GRAY,TRIM1#

sub90467-07049

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-1L400-B0iEE110..GEN199704-199910

***,FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#

main71480-1L410-B0iAE11#..XLI..ARL199808-199910

***,MD. CHARCOAL,TRIM1#

main71480-1L420-B0iAE111..ARL199808-199910

***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main71480-1L422-B4iAE11#..(GLI,XLI)..ARL199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71480-1L430-B0iAE111..GLI..GEN199704-199910

***,MD. CHARCOAL,TRIM1#

main71480-1L440-B0iEE110..GEN199704-199910

***,LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main71480-1L850-B1iAE112..XLI..ARL199904-199906

***,AUSTRALIA,SHADOW GRAY,TRIM12

main71480-1L851-B2iAE112..GT199910-200109

***,SEAT = TYPE H-*104,BLACK,TRIM1#

main71480-1N060-B0iAE111..ARL199901-199910

***,MEDIUM CHARCOAL,TRIM1#

main71480-1N110-B0iAE111..GEN199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71480-1N120-B0iAE112,EE110..GCC199910-200008

***,SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

main71480-1N130-B1iAE11#..XLI..ARL199910-200109

***,SEAT = TYPE M-*104,MIDIUM CHARCOAL,TRIM1#

main71480-1N140-B0iAE11#..XLI..ARL199910-200109

***,SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

71490ACLIP, REAR SEATBACK, LH

main90467-06016-P0×3iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

GRAY,TRIM1#

sub90467-07049

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-1E450-B0iEE110..GEN199704-199910

***,FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#

main71490-1E460-B0iAE11#..XLI..ARL199808-199910

***,MD. CHARCOAL,TRIM1#

main71490-1E470-B0iAE111..ARL199808-199910

***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main71490-1E472-B4iAE11#..(GLI,XLI)..ARL199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71490-1E480-B0iAE111..GLI..GEN199704-199910

***,MD. CHARCOAL,TRIM1#

main71490-1E490-B0iEE110..GEN199704-199910

***,LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main71490-1E770-B1iAE112..XLI..ARL199904-199906

***,AUSTRALIA,SHADOW GRAY,TRIM12

main71490-1E771-B2iAE112..GT199910-200109

***,SEAT = TYPE H-*104,BLACK,TRIM1#

main71490-1E840-B0iAE111..ARL199901-199910

***,MEDIUM CHARCOAL,TRIM1#

main71490-1E860-B0iAE111..GEN199910-200109

***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#

main71490-1E870-B0iAE112,EE110..GCC199910-200008

***,SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

main71490-1E880-B1iAE11#..XLI..ARL199910-200109

***,SEAT = TYPE M-*104,MIDIUM CHARCOAL,TRIM1#

main71490-1E890-B0iAE11#..XLI..ARL199910-200109

***,SEAT = TYPE L-*104,MIDIUM CHARCOAL,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-12640iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12730iAE11#,EE110199704-199808

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12570iAE11#..ARL199808-199910

main71652-12580iAE11#,EE110..GCC,GEN199704-199910

main71652-12600iEE110..GEN199704-199910

W(*80)

main71652-12640iAE11#..NZ199710-199808

71931ASUPPORT, REAR SEAT HEADREST

main71930-44010-B1×3iAE112..GT199910-200109

W(LOCK),SHADOW GRAY,TRIM1#

main71930-44010-B2×2iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

W(LOCK),DK.CHARCOAL,TRIM1#

main71931-32020-B0×3iAE112..GT199910-200109

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-32020-P2×2iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

W/O(LOCK),DK.CHARCOAL,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-12150-B5×2iAE11#..XLI..ARL199910-200109

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71940-12160-B0×2iAE111..ARL199901-199910

NEW ZEALAND SPEC,MEDIUM CHARCOAL,TRIM1#

main71940-12170-B0×2iAE11#..XLI..ARL199902-199910

MEDIUM CHARCOAL,TRIM1#

main71940-12180-B0×2iAE111..ARL199808-199906

MEDIUM CHARCOAL,TRIM1#

main71940-12200-B0×2iAE112,EE110..GCC199704-199910

MEDIUM CHARCOAL,TRIM1#

main71940-12210-B0×2iAE111..GLI..GEN199808-199910

MEDIUM CHARCOAL,TRIM1#

main71940-12220-B3×2iAE11#..XLI..ARL199910-200109

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71940-12231-B3×2iAE11#..(GLI,XLI)..ARL199910-200109

SEAT = TYPE J-*104,MEDIUM CHARCOAL,TRIM1#

main71940-12270-B0×2iAE111..GEN199910-200109

MEDIUM CHARCOAL,TRIM1#

main71940-12290-B0×2iAE112,EE110..GCC199910-200008

MEDIUM CHARCOAL,TRIM1#

main71940-12380-B0×2iAE111..XLI199804-199808

MD.CHARCOAL,TRIM1#

main71940-12401-C2×2iAE112..GT199910-200109

SEAT = TYPE H-*104,BLACK,TRIM1#

main71960-12020-B0iAE11#..XLI..ARL199808-199910

MEDIUM CHARCOAL,TRIM1#,CENTER

main71960-12030-B0iAE111..ARL199808-199910

MEDIUM CHARCOAL,TRIM1#,CENTER

main71960-12041-C2iAE112..GT199910-200109

BLACK,TRIM1#,CENTER

main71960-12050-B7iAE11#..XLI..ARL199910-200109

SEAT = TYPE A OR TYPE B-*104,MEDIUM CHARCOAL,TRIM1#,CENTER

main71960-12071-B3iAE11#..(GLI,XLI)..ARL199910-200109

SEAT = TYPE J-*104,MEDIUM CHARCOAL,TRIM1#,CENTER

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72601-12150×2iAE11#,EE110199704-199910

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-12290iAE11#,EE110199704-199910

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-12260iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-B2iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main72646-33020-B3×2iAE11#,EE110..ARL,GCC,GEN199808-199910

MD.CHARCOAL,TRIM1#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-20020-B2iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub72661-35010

main72661-20020-B5×2iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199808-200109

MD.CHARCOAL,TRIM1#

sub72661-35010

72660ASUPPORT ASSY, REAR SEAT CUSHION

main72660-12030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199808-200109

72681HOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-B2iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

72681CHOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-B2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

SHADOW GRAY,TRIM1#

main72681-16010-P1iEE110..GEN199704-199910

DK.CHARCOAL,TRIM10

72694BCOVER, REAR SEAT CUSHION LOCK, RH

main72694-13010iAE111..GLI..GEN;AE112,EE110..GCC199704-199808

sub72694-13011

72694CCOVER, REAR SEAT CUSHION LOCK, LH

main72694-13010iAE11#,EE110..ARL,GCC,GEN199808-199910

sub72694-13011

9008011157

main90080-11157

9010508372

main90105-08372

9011906126

main90119-06126

9011908240

main90119-08240

9014980035

main90149-80035

9015940071

main90159-40071

9046818071

main90468-18071

9151160612

main91511-60612

9151380820

main91513-80820

9163160612

main91631-60612

9324955010

main93249-55010

9354054014

main93540-54014

47 parts on this diagram · 1 diagram in section
