EPC Data

FRONT SEAT & SEAT TRACK

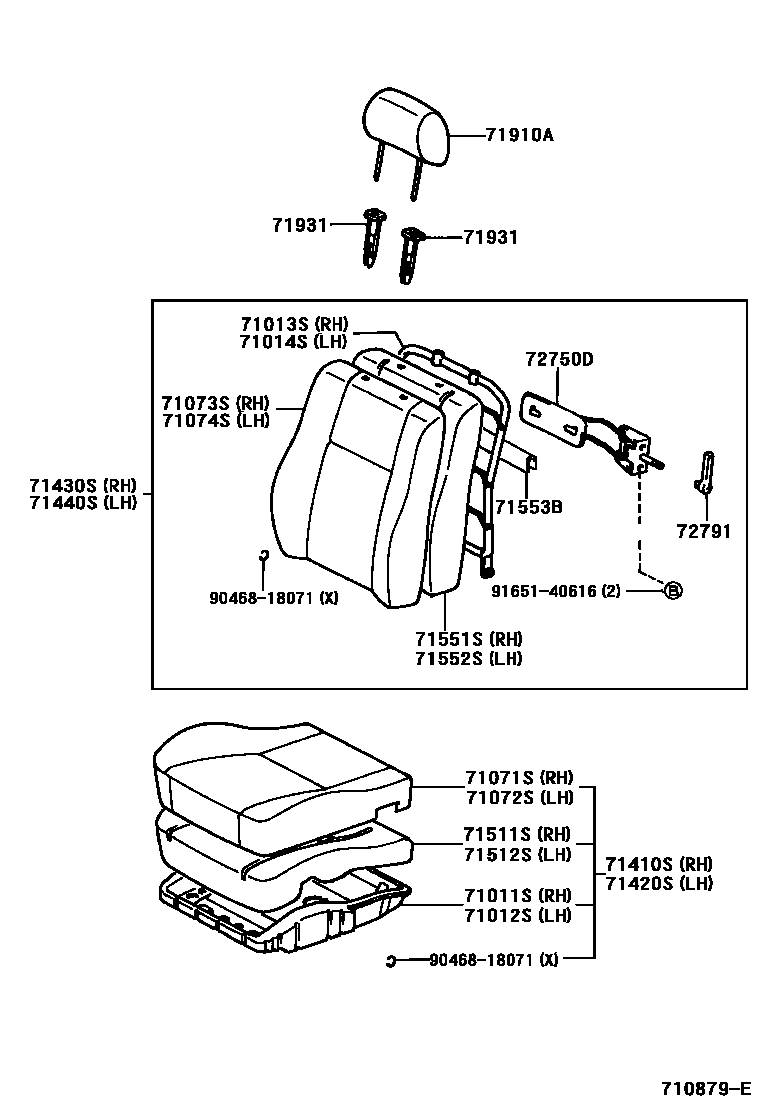

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-20430i199910-200109
main71011-20430i199704-200109
W(VERTICAL SEAT AJDUSTER)
main71011-20440i199704-200109
main71011-20440i199704-199910
W(2 WAY VERTICAL SEAT)
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-20430i199704-200008
main71011-20440i199704-200010
W(2 WAY VERTICAL SEAT)
main71011-20440i199710-200109
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-12630i199704-199801
main71013-12631i199801-200109
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-12630i199704-199801
main71013-12631i199801-200109
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1L270-B0i199704-199910
MD. CHARCOAL,TRIM1#
main71071-1L280-B8i199704-199910
MIDIUM CHARCOAL,TRIM1#
sub71071-1L280
main71071-1L290-B0i199704-199910
W(REAR HEADREST),MD. CHARCOAL,TRIM1#
main71071-1L290-B0i199704-199910
MD. CHARCOAL,TRIM1#
main71071-1L410-B0i199704-199910
MD. CHARCOAL,TRIM1#
sub71071-1L410
main71071-1L480-B0i199704-199910
W(*80 & 2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
sub71071-1L480
main71071-1L490-B0i199710-199910
MD. CHARCOAL,TRIM1#
main71071-1L690-B0i199808-199910
MD. CHARCOAL,TRIM1#
main71071-1L690-B0i199808-199910
NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71071-1L692-B8i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71071-1L880-B1i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
main71071-1L881-B4i199910-200109
SEAT = TYPE H-*104,BLACK,TRIM1#
main71071-1N150-P1i199910-200109
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-1N150
main71071-1N180-B0i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71071-1N190-B0i199910-200109
SEAT = TYPE A OR TYPE M-*104,MIDIUM CHARCOAL,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-1H170-B0i199704-199910
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main71072-1H250-B0i199704-199910
W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71072-1H270-B0i199704-199910
MD. CHARCOAL,TRIM1#
sub71072-1H270
main71072-1H310-B0i199710-199910
MD. CHARCOAL,TRIM1#
main71072-1H320-B8i199704-199910
MIDIUM CHARCOAL,TRIM1#
sub71072-1H320
main71072-1H480-B0i199808-199910
NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71072-1H480-B0i199808-199910
MD. CHARCOAL,TRIM1#
main71072-1H482-B8i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71072-1H500-B0i199704-199910
MD. CHARCOAL,TRIM1#
main71072-1H630-B1i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
main71072-1H631-B4i199910-200109
SEAT = TYPE H-*104,BLACK,TRIM1#
main71072-1H800-P1i199910-200109
SEAT = TYPE B OR TYPE L-*104,MEDIUM CHARCOAL,TRIM1#
sub71072-1H800
main71072-1H810-B0i199910-200008
SEAT = TYPE B-*104,MODOUM CHARCOAL,TRIM1#
main71072-1H830-B0i199910-200109
SEAT = TYPE F-*104,MMIDIUM CHARCOAL,TRIM1#
main71072-1H840-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1K881-B0i199808-199902
MD.CHARCOAL,TRIM1#
sub71073-1K881
main71073-1L010-B0i199704-199801
MD. CHARCOAL,TRIM1#
main71073-1L011-B0i199801-199902
MD.CHARCOAL,TRIM1#
main71073-1L340-B0i199704-199801
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main71073-1L341-B0i199801-199902
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main71073-1L350-B0i199704-199801
W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71073-1L351-B0i199801-199902
W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
main71073-1L411-B0i199808-199902
MD.CHARCOAL,TRIM1#
main71073-1L411-B0i199808-199902
NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
main71073-1L611-B7i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L650-B0i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
main71073-1L651-B1i199910-200109
SEAT = TYPE H-*104,BLACK,TRIM1#
main71073-1L690-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L700-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L710-B1i199902-199910
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71073-1L720-B0i199902-199910
W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71073-1L720-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71073-1L730-B4i199902-199910
MIDIUM CHARCOAL,TRIM1#
sub71073-1L730
main71073-1L780-B5i199910-200109
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71073-1L780
main71073-1L790-B0i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
sub71073-1L790
main71073-1L800-B0i199910-200010
SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L810-B0i199910-200109
SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1K880-B0i199710-199801
MD. CHARCOAL,TRIM1#
main71073-1K881-B0i199801-199808
MD.CHARCOAL,TRIM1#
sub71073-1K881
main71073-1L010-B0i199704-199801
MD. CHARCOAL,TRIM1#
main71073-1L011-B0i199801-199902
MD.CHARCOAL,TRIM1#
main71073-1L340-B0i199704-199801
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main71073-1L341-B0i199801-199902
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main71073-1L350-B0i199704-199801
W(FABRIC SEAT),MD. CHARCOAL,TRIM1#
main71073-1L351-B0i199801-199902
W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
main71073-1L611-B7i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L651-B1i199910-200109
SEAT = TYPE H-*104,BLACK,TRIM1#
main71073-1L690-B0i199902-199910
W(*80,DRIVER SIDE & PASSENGER SIDE),MD. CHARCOAL,TRIM1#
main71073-1L710-B1i199902-199910
W(VERTICAL SEAT AJDUSTER),MD. CHARCOAL,TRIM1#
main71073-1L710-B1i199902-199910
NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71073-1L730-B4i199902-199910
MIDIUM CHARCOAL,TRIM1#
sub71073-1L730
main71073-1L780-B5i199910-200109
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71073-1L780
main71073-1L790-B0i199910-200109
SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
sub71073-1L790
main71073-1L800-B0i199910-200010
SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#
main71073-1L810-B0i199910-200109
SEAT = TYPE A OR TYPE M-*104,MIDIUM CHARCOAL,TRIM1#
main71074-1K030-B0i199808-199902
SINGAPORE SPEC,MD.CHARCOAL,TRIM1#
main71074-1K270-B0i199808-199902
W(SPORTS SEAT),MD.CHARCOAL,TRIM1#
main71074-1K340-B0i199808-199902
MEDIUM CHARCOAL,TRIM1#
main71074-1K480-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71074-1K480-B0i199902-199910
W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71074-1K490-B0i199902-199910
MD. CHARCOAL,TRIM1#
main71074-1K510-B0i199902-199910
MD. CHARCOAL,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1L590i199704-199910
***
main71410-1L590-B0i199704-199910
***,W(*80),MD. CHARCOAL,TRIM1#
main71410-1L600i199704-199910
***
main71410-1L610-B0i199902-199910
***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71410-1L610-B0i199704-199910
***,MD. CHARCOAL,TRIM1#
main71410-1L630i199704-199910
***
main71410-1L670-B0i199704-199910
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71410-1L680i199808-199910
***
main71410-1L680-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71410-1L730-B0i199808-199910
***,W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71410-1L730-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71410-1L732-B8i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71410-1N120-B1i199904-199906
***,AUSTRALIA,SHADOW GRAY,TRIM12
main71410-1N121-B4i199910-200109
***,SEAT = TYPE H-*104,BLACK,TRIM1#
main71410-1N390-B0i199910-200109
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
sub71410-1N390
main71410-1N420-B0i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71410-1N430-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-1H430-B0i199704-199910
***,MD. CHARCOAL,TRIM1#
main71420-1H490i199704-199910
***
main71420-1H510i199704-199910
***
main71420-1H520-B0i199704-199910
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71420-1H520-B0i199902-199910
***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71420-1H530i199808-199910
***
main71420-1H530-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71420-1H570-B0i199808-199910
***,MD. CHARCOAL,TRIM1#
main71420-1H570-B0i199808-199910
***,W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71420-1H572-B8i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71420-1H620i199704-199910
***
main71420-1H620-B0i199704-199910
***,W(*80),MD. CHARCOAL,TRIM1#
main71420-1H810-B1i199904-199906
***,AUSTRALIA,SHADOW GRAY,TRIM12
main71420-1H811-B4i199910-200109
***,SEAT = TYPE H-*104,BLACK,TRIM1#
main71420-1K170-B0i199910-200109
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
sub71420-1K170
main71420-1K180-B0i199910-200008
***,MIDIUM CHARCOAL,TRIM1#
main71420-1K200-B0i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71420-1K210-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-12350i199902-199910
***
main71040-12350-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12360-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12370-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12370-B0i199902-199910
***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71040-12380-B0i199902-199910
***,W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71040-12380-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12401-B7i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12470-B0i199904-199906
***,AUSTRALIA,SHADOW GRAY,TRIM12
main71040-12471-B1i199910-200109
***,SEAT = TYPE H-*104,BLACK,TRIM1#
main71040-12550i199902-199910
***
main71040-12620-B0i199910-200109
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
sub71040-12620
main71040-12630-B0i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
sub71040-12630
main71040-12640-B0i199910-200010
***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12650-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
main71430-1L300i199704-199801
***,W(*80)
main71430-1L301i199801-199902
***
main71430-1L310-B0i199704-199801
***,MD. CHARCOAL,TRIM1#
main71430-1L310-B0i199704-199801
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71430-1L311-B0i199801-199902
***,W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
sub71430-1L311
main71430-1L321i199808-199902
***
main71430-1L321-B0i199808-199902
***,MD.CHARCOAL,TRIM1#
sub71430-1L321
main71430-1L330i199704-199801
***
main71430-1L331i199801-199902
***
main71430-1L331-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
sub71430-1L331
main71430-1L431-B0i199808-199902
***,NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
main71430-1L431-B0i199808-199902
***,MD.CHARCOAL,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-12350i199902-199910
***
main71040-12350-B0i199902-199910
***,SINGAPORE SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),MD. CHARCOAL,TRIM1#
main71040-12370-B0i199902-199910
***,NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#
main71040-12370-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71040-12401-B7i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12470-B0i199904-199906
***,AUSTRALIA,SHADOW GRAY,TRIM12
main71040-12471-B1i199910-200109
***,SEAT = TYPE H-*104,BLACK,TRIM1#
main71040-12550i199902-199910
***
main71040-12620-B0i199910-200109
***,SEAT = TYPE B-*104,MIDIUM CHARCOAL,TRIM1#
sub71040-12620
main71040-12630-B0i199910-200109
***,SEAT = TYPE F-*104,MIDIUM CHARCOAL,TRIM1#
sub71040-12630
main71040-12640-B0i199910-200010
***,SEAT = TYPE J-*104,MIDIUM CHARCOAL,TRIM1#
main71040-12650-B0i199910-200109
***,SEAT = TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
main71070-12120-B0i199808-199902
***,SINGAPORE SPEC,MD.CHARCOAL,TRIM1#
sub71070-12120
main71070-12180-B0i199812-199902
***,W(SPORTS SEAT),MD.CHARCOAL,TRIM1#
main71070-12250-B0i199808-199902
***,MEDIUM CHARCOAL,TRIM1#
main71070-12300-B0i199902-199910
***,W(SPORTS SEAT),MD. CHARCOAL,TRIM1#
main71070-12300-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71070-12310-B0i199902-199910
***,MD. CHARCOAL,TRIM1#
main71070-12320-B0i199902-199910
***,SINGAPORE SPEC,MD. CHARCOAL,TRIM1#
main71430-1L300i199704-199801
***,W(*80)
main71430-1L301i199801-199902
***
main71430-1L310-B0i199704-199801
***,W(2 WAY VERTICAL SEAT),MD. CHARCOAL,TRIM1#
main71430-1L310-B0i199704-199801
***,MD. CHARCOAL,TRIM1#
main71430-1L311-B0i199801-199902
***,W(FABRIC SEAT),MD.CHARCOAL,TRIM1#
sub71430-1L311
main71430-1L330i199704-199801
***
main71430-1L331i199801-199902
***
main71430-1L331-B0i199801-199902
***,MD.CHARCOAL,TRIM1#
sub71430-1L331
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12890i199704-200109
main71511-12890i199902-200109
NEW ZEALAND SPEC
main71511-1A010i199710-199808
main71511-1A010i199704-200109
W(2 WAY VERTICAL SEAT)
main71511-1A030i199808-200109
W(*80,SIDE)
main71511-1A030i199904-199906
AUSTRALIA
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12890i199704-200109
main71511-1A010i199704-200008
W(2 WAY VERTICAL SEAT)
main71511-1A020i199808-200109
W(*80,SIDE)
main71511-1A020i199904-199906
AUSTRALIA
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-12610i199704-199902
main71551-12630i199808-199902
NEW ZEALAND SPEC
main71551-12710i199902-200109
NEW ZEALAND SPEC
main71551-12710i199902-200109
main71551-12730i199902-200109
W(SPORTS SEAT)
main71551-12730i199904-199906
AUSTRALIA
main71551-12730i199902-200109
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-12610i199704-199902
main71551-12630i199808-199902
NEW ZEALAND SPEC
main71551-12710i199902-200109
NEW ZEALAND SPEC
main71551-12710i199902-200109
main71551-12730i199902-200109
W(SPORTS SEAT)
main71551-12730i199902-200109
71553BPAD, FRONT SEATBACK, B
main71553-12360i199902-200109
71910AHEADREST ASSY, FRONT SEAT
main71910-1A780-B5i199910-200109
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
sub71910-1A780
main71910-1A790-B0i199704-199910
MEDIUM CHARCOAL,TRIM1#
main71910-1A790-B0i199704-199910
W(REAR HEADREST),MEDIUM CHARCOAL,TRIM1#
main71910-1A800-B0i199804-199808
MD.CHARCOAL,TRIM1#
main71910-1A830-B0i199704-199910
MEDIUM CHARCOAL,TRIM1#
main71910-1A840-B0i199902-199910
NEW ZEALAND SPEC,MEDIUM CHARCOAL,TRIM1#
main71910-1A850-B0i199808-199910
MEDIUM CHARCOAL,TRIM1#
main71910-1A860-B0i199808-199910
MEDIUM CHARCOAL,TRIM1#
main71910-1A860-B0i199808-199910
W(SPORTS SEAT),MEDIUM CHARCOAL,TRIM1#
main71910-1A870-B3i199910-200109
MEDIUM CHARCOAL,TRIM1#
main71910-1A881-B3i199910-200109
SEAT = TYPE F-*104,MEDIUM CHARCOAL,TRIM1#
main71910-1E060-B0i199910-200109
MEDIUM CHARCOAL,TRIM1#
main71910-1E080-B0i199910-200008
MEDIUM CHARCOAL,TRIM1#
main71910-1E120-B1i199704-199910
MD.CHARCOAL,TRIM1#
main71910-1E180-C1i199904-199906
AUSTRALIA,BLACK,TRIM12
sub71910-1E180
main71910-1E181-C2i199910-200109
BLACK,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-44010-B0i199904-199906
W(LOCK),AUSTRALIA,SHADOW GRAY,TRIM12
sub71930-44010
main71930-44010-B1i199910-200109
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-44010
main71930-44010-B2i199704-200109
W(LOCK),DK.CHARCOAL,TRIM1#
sub71930-44010
main71931-32020-B0i199910-200109
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-32020
main71931-32020-B0i199904-199906
W/O(LOCK),AUSTRALIA,SHADOW GRAY,TRIM12
sub71931-32020
main71931-32020-P2i199704-200109
W/O(LOCK),DK.CHARCOAL,TRIM1#
sub71931-32020
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12090i199710-199808
72791LEVER, LUMBAR SUPPORT
main72791-20030-B2i199710-199808
MD.CHARCOAL,TRIM1#
sub72791-20030
9046818071
main90468-18071
9165140616
main91651-40616

23 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
