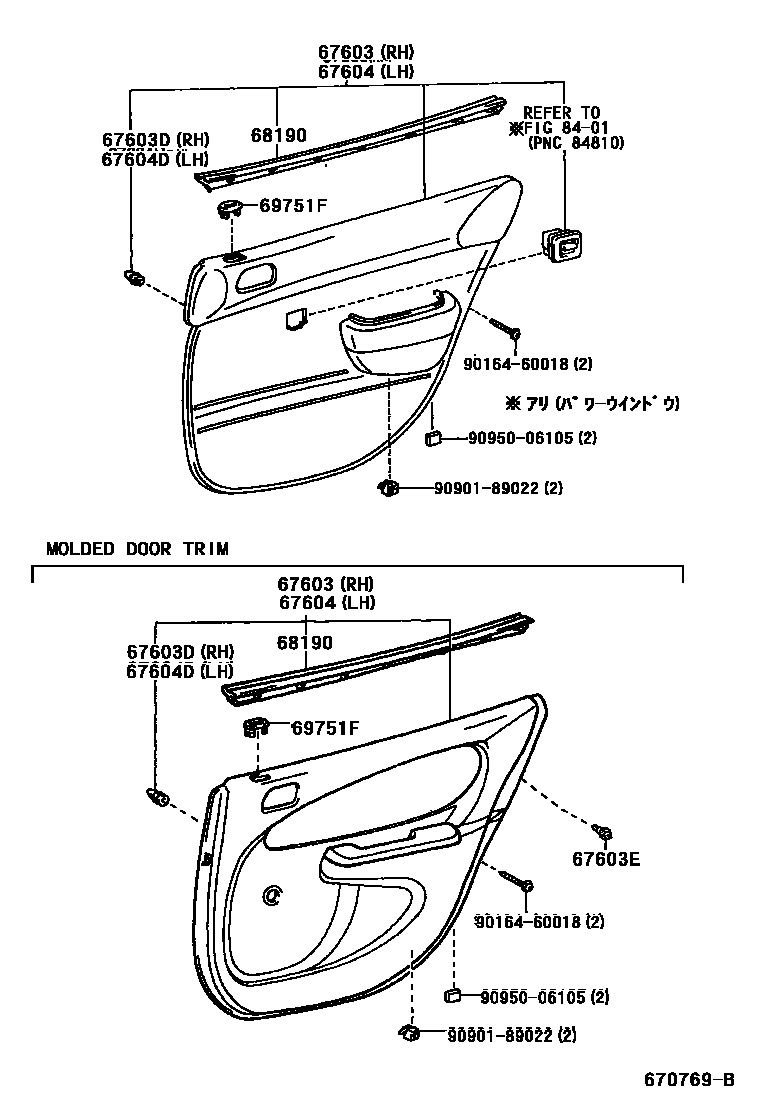

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67010-12090-B0iAE111..ARL199903-199910

MOLDED DOOR TRIM & W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67010-12160-B0iAE112,EE110..GCC199910-200008

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67010-12170-B0iAE112..GT199910-200109

DOOR TRIM=TYPE F-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67010-12190-B0iAE112,EE110..GCC199910-200008

MOLDED DOOR TRIM,MIDIUM CHARCOAL,TRIM1#

sub67010-12240

main67010-12200-B0iAE112,EE110..GCC199910-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

sub67010-12250

main67010-12210-B0iAE11#..(GLI,XLI)..ARL199910-200109

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67010-12220-B0iAE112..GT199910-200109

DOOR TRIM=TYPE F-*104,SHADOW GRAY,TRIM1#

main67010-12230-B0iAE111..GEN199910-200109

MIDIUM CHARCOAL,TRIM1#

sub67010-12210

main67010-12240-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67010-12250-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67010-12350-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE E-*104,MD CHARCOAL,TRIM1#

main67630-1H290-B1iEE110..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main67630-1H360-B1iAE112,EE110..GCC199704-199910

MD. CHARCOAL,TRIM1#

main67630-1H370-B1iAE112,EE110..GCC199704-199910

W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67630-1H580-B1iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main67630-1H590-B1iAE112,EE110..GCC199704-199910

MOLDED DOOR TRIM & W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67630-1H600-B1iAE111..GEN199704-199910

MD. CHARCOAL,TRIM1#

main67630-1H810-B0iAE11#..XLI..ARL199808-199910

MD.CHARCOAL.,TRIM1#

main67630-1H880-B0iAE111..ARL199808-199910

MD.CHARCOAL.,TRIM1#

main67630-1K070-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iEE110;AE11#..GCC,NZ199704-199910

MOLDED DOOR TRIM,RED

main67771-12050iAE11#..ARL199704-200008

RED

main67771-12050iAE11#..ARL199910-200109

MOLDED DOOR TRIM

main67771-16170iAE112,EE110..GCC199704-200008

SABLE

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-06133-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub90467-06133

main90467-06133-B4iAE111..GLI..GEN;AE112,EE110..GCC199704-199910

MD.CHARCOAL,TRIM10,14

sub90467-06133

main90467-06133-B4iAE11#..ARL199808-200109

MD.CHARCOAL,TRIM1#

sub90467-06133

main90467-06133-C0iAE111..GLI..GEN;AE112,EE110..GCC199704-200008

BLACK,TRIM1#

sub90467-06133

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67020-12090-B0iAE111..ARL199903-199910

MOLDED DOOR TRIM & W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main67020-12160-B0iAE112,EE110..GCC199910-200008

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67020-12170-B0iAE112..GT199910-200109

DOOR TRIM=TYPE F-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67020-12190-B0iAE112,EE110..GCC199910-200008

MOLDED DOOR TRIM,MIDIUM CHARCOAL,TRIM1#

sub67020-12240

main67020-12200-B0iAE112,EE110..GCC199910-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

sub67020-12250

main67020-12210-B0iAE11#..(GLI,XLI)..ARL199910-200109

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67020-12220-B0iAE112..GT199910-200109

DOOR TRIM=TYPE F-*104,SHADOW GRAY,TRIM1#

main67020-12230-B0iAE111..GEN199910-200109

MIDIUM CHARCOAL,TRIM1#

sub67020-12210

main67020-12240-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#

main67020-12250-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#

main67020-12350-B0iAE11#..XLI..ARL199910-200109

DOOR TRIM=TYPE E-*104,MD CHARCOAL,TRIM1#

main67640-1H290-B1iEE110..GEN199704-199910

LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#

main67640-1H360-B1iAE112,EE110..GCC199704-199910

MD. CHARCOAL,TRIM1#

main67640-1H370-B1iAE112,EE110..GCC199704-199910

W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67640-1H580-B1iAE111..ARL199808-199910

NEW ZEALAND SPEC,MD. CHARCOAL,TRIM1#

main67640-1H590-B1iAE112,EE110..GCC199704-199910

MOLDED DOOR TRIM & W(POWER WINDOW),MD. CHARCOAL,TRIM1#

main67640-1H600-B1iAE111..GEN199704-199910

MD. CHARCOAL,TRIM1#

main67640-1H790-B0iAE11#..XLI..ARL199808-199910

MD.CHARCOAL.,TRIM1#

main67640-1H810-B0iAE111..ARL199808-199910

MD.CHARCOAL.,TRIM1#

main67640-1K070-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iAE112,EE110..GCC199704-199910

MOLDED DOOR TRIM,RED

main67771-12050iAE11#..ARL199710-199910

RED

main67771-12050iAE112,EE110..GCC199910-200008

main67771-12050iAE11#..ARL199910-200109

MOLDED DOOR TRIM

main67771-16170iEE110;AE11#..GCC,NZ199704-200008

SABLE

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12230iAE112,EE110..GCC199704-200008

RH

main68173-12260iAE11#,EE110..GCC,GEN199704-200109

W(POWER WINDOW),RH

main68173-12260iAE11#..ARL199808-200109

RH

main68174-12090iAE112,EE110..GCC199704-200008

LH

main68174-12120iAE11#..ARL199808-200109

LH

main68174-12120iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

W(POWER WINDOW),LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12070-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main69751-12070-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main69751-12070-B1iAE11#,EE110199704-200109

MD.CHARCOAL,TRIM1#

8401

9016460018

main90164-60018

9090189022

main90901-89022

9095006105

main90950-06105

11 parts on this diagram · 2 diagrams in section
