E
EPC Data

FRONT DOOR PANEL & GLASS

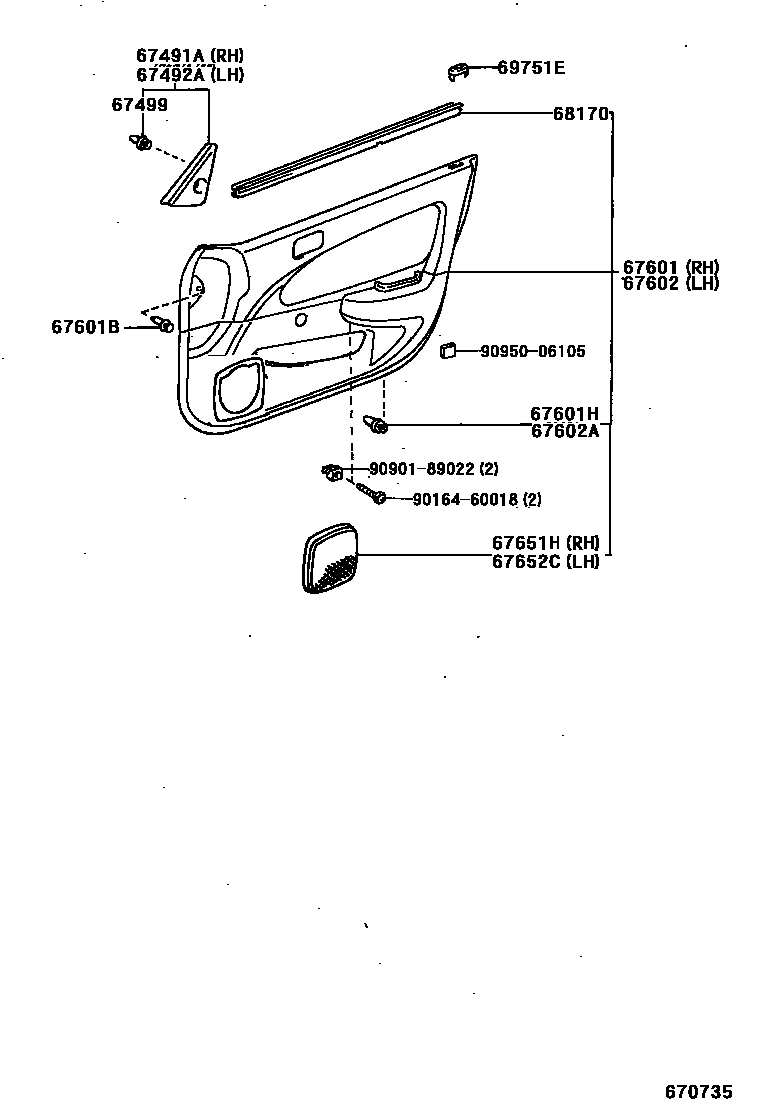

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-12400i199704-200109
W(ELECTRIC REMOTE CONTROL MIRROR)
main67491-12400i199710-200109
main67491-12430i199704-200008
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-12400i199710-200109
main67492-12400i199704-200109
W(ELECTRIC REMOTE CONTROL MIRROR)
main67492-12430i199704-200008
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070i199704-200109
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1K200-B1i199808-199910
MD.CHARCOAL.,TRIM1#
sub67610-1K230
main67610-1K210-B0i199808-199910
MD.CHARCOAL.,TRIM1#
main67610-1K210-B0i199808-199910
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67610-1K340-B0i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
sub67610-1K360
main67610-1K650-B0i199910-200008
DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
sub67610-1K650
main67610-1K680-B0i199910-200008
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
sub67610-1K760
main67610-1K710-B0i199910-200109
DOOR TRIM=TYPE F-*104,SHADOW GRAY,TRIM1#
sub67610-1K660
main67610-1K720-B0i199910-200002
DOOR TRIM=TYPE F-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1K710
main67610-1K740-B0i199910-200109
MIDIUM CHARCOAL,TRIM1#
sub67610-1K810
main67610-1K750-B0i200002-200109
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
sub67610-1K700
sub67610-1K750
main67610-1K750-B0i199910-200002
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW = ONE TOUCH TYPE),MIDIUM CHARCOAL,TRIM1#
sub67610-1K700
sub67610-1K750
main67610-1K760-B0i200002-200109
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
main67610-1K780-B0i199910-200002
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
sub67610-1K760
main67650-1H120-B1i199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
main67650-1H620-B1i199704-199910
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H620
main67650-1H630-B2i199704-199910
MD. CHARCOAL,TRIM1#
sub67650-1H630
main67650-1H700-B2i199704-199910
W(SPEAKER),MD. CHARCOAL,TRIM1#
main67650-1H720-B2i199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
sub67650-1H120
main67650-1H730-B1i199903-199910
W/O(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H400
main67650-1H740-B2i199704-199910
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H620
main67650-1H750-B2i199704-199910
MD. CHARCOAL,TRIM1#
sub67650-1H630
main67650-1K070-B0i199910-200002
DOOR TRIM=TYPE E-*104,MD.CHARCOAL,TRIM1#
sub67650-1K100
main67650-1K080-B0i199910-200002
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MD CHARCOAL,TRIM1#
sub67610-1K750
main67650-1K090-B0i199910-200002
DOOR TRIM=TYPE A-*104,MD CHARCOAL,TRIM1#
sub67650-1K110
main67650-1K100-B0i200002-200109
NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
main67650-1K110-B1i200002-200109
W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#
sub67650-1K110
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-06133-B0i199910-200109
SHADOW GRAY,TRIM1#
sub90467-06133
main90467-06133-B4i199704-199910
MD.CHARCOAL,TRIM10
sub90467-06133
main90467-06133-B4i199704-200109
MOLDED DOOR TRIM,MD.CHARCOAL,TRIM11
sub90467-06133
main90467-06133-B4i199910-200008
MD.CHARCOAL,TRIM11
sub90467-06133
main90467-06133-B4i199808-200109
MD.CHARCOAL,TRIM1#
sub90467-06133
main90467-06133-C0i199704-200008
MOLDED DOOR TRIM,BLACK,TRIM1#
sub90467-06133
main90467-06133-C0i199704-200008
BLACK,TRIM1#
sub90467-06133
67601HRETAINER, DOOR TRIM, RH
main67771-12050i199808-200109
main67771-12050i199704-200008
RED
main67771-16170i199704-200008
SABLE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-12170-B1i199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
sub67050-12290
main67050-12190-B1i199704-199910
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67050-12310
sub67050-12190
main67050-12200-B2i199704-199910
MD. CHARCOAL,TRIM1#
sub67050-12320
main67050-12270-B2i199704-199910
W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#
sub67050-12270
main67050-12290-B2i199704-199910
W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM1#
main67050-12300-B1i199903-199910
MD. CHARCOAL,TRIM1#
main67050-12310-B2i199704-199910
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
main67050-12320-B2i199704-199910
MD. CHARCOAL,TRIM1#
main67660-12020-B0i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
main67660-12060-B1i199808-199910
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67660-12070-B0i199808-199910
DOOR TRIM=TYPE G-*104 & W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67660-12070-B0i199808-199910
MD.CHARCOAL.,TRIM1#
main67660-12430-B0i199910-200008
DOOR TRIM=TYPE A-*104,MIDIUM CHARCOAL,TRIM1#
sub67660-12600
sub67660-12430
main67660-12460-B0i199910-200008
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
sub67660-12610
sub67660-12460
main67660-12470-B0i199910-200002
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW) & LEATHER SEAT,MIDIUM CHARCOAL,TRIM1#
sub67660-12460
main67660-12500-B0i199910-200109
SHADOW GRAY,TRIM1#
main67660-12520-B0i199910-200109
MIDIUM CHARCOAL,TRIM1#
sub67660-12530
main67660-12530-B0i199910-200109
DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
sub67660-12530
main67660-12540-B0i199910-200109
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1#
main67660-12730-B0i199910-200002
DOOR TRIM=TYPE E-*104,MD CHARCOAL,TRIM1#
sub67660-12750
main67660-12740-B0i199910-200002
DOOR TRIM=TYPE A-*104,MD CHARCOAL,TRIM1#
sub67660-12760
main67660-12750-B0i200002-200109
NEW ZEALAND SPEC,MD.CHARCOAL,TRIM1#
main67660-12760-B1i200002-200109
W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#
sub67660-12760
67602ARETAINER, DOOR TRIM, LH
main67771-12050i199704-200008
RED
main67771-12050i199910-200109
main67771-16170i199704-200008
SABLE
67651HGRILLE, SPEAKER DOOR, RH
main67651-12030-B2i199704-200008
MD.CHARCOAL,TRIM1#
sub67651-12030
67652CGRILLE, SPEAKER DOOR, LH
main67651-12030-B2i199704-200008
MD.CHARCOAL,TRIM1#
sub67651-12030
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-12250i199704-200008
RH
main68171-12270i199704-200109
W(POWER WINDOW),RH
main68171-12270i199808-200109
RH
main68172-12170i199704-200008
LH
main68172-12190i199704-200109
W(POWER WINDOW),LH
main68172-12190i199808-200109
LH
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12070-B0i199904-199906
AUSTRALIA,SHADOW GRAY,TRIM12
main69751-12070-B0i199910-200109
SHADOW GRAY,TRIM1#
main69751-12070-B1i199704-200109
MD.CHARCOAL,TRIM1#
9016460018
main90164-60018
9090189022
main90901-89022
9095006105
main90950-06105

15 parts on this diagram · 4 diagrams in section
