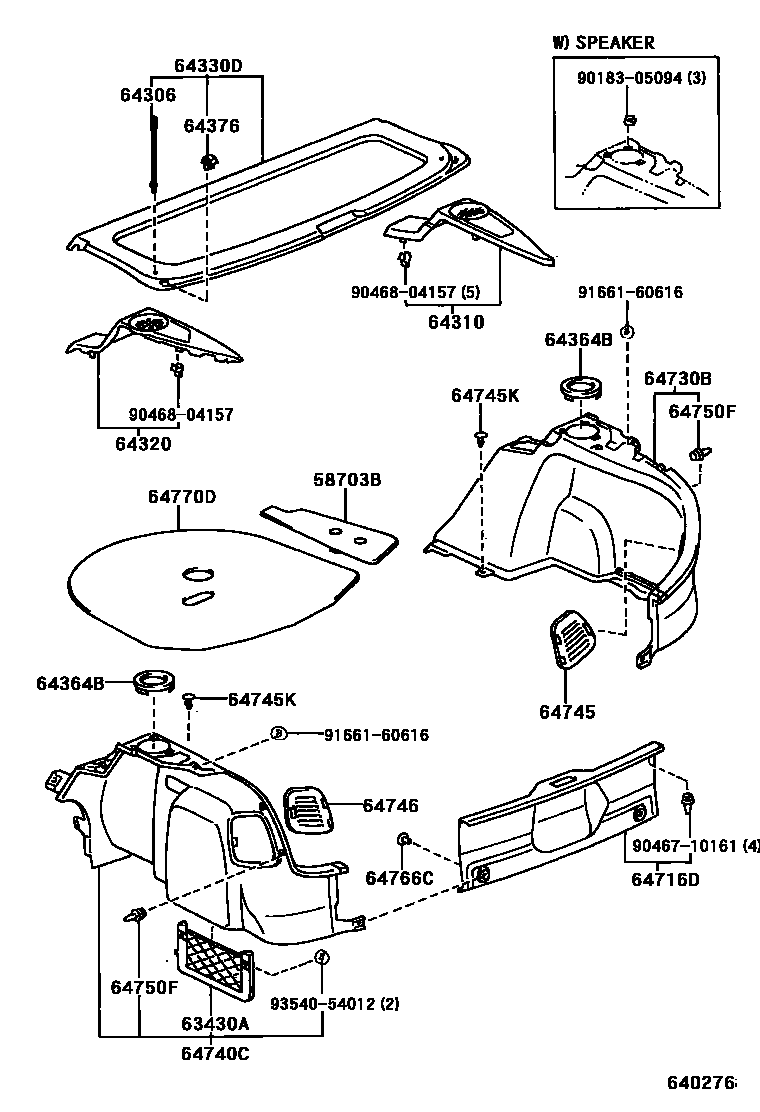

DECK BOARD & DECK TRIM COVER

58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12090iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63430ARACK ASSY, ROOM

main63430-12020-B1iAE11#,EE110199704-199910

SHADOW GRAY,TRIM1#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-10060×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

64310BRACKET, PACKAGE TRAY TRIM, RH

main64310-12050-B0iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

main64310-12050-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

64320BRACKET, PACKAGE TRAY TRIM, LH

main64320-12050-B0iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

main64320-12050-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-1A880-B0iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

DK. CHARCOAL,TRIM1#

main64330-1A880-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

64364BCOVER, REAR SPEAKER GRILLE, NO.1

main64364-12040×2iAE111..RHD;AE112,EE110..GCC199812-200109

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020×2iAE11#,EE110199704-199910

64716DCOVER, DECK TRIM, REAR

main64716-12280-B0iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

SHADOW GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12270-B0iAE11#,EE110199704-199910

SHADOW GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-12270-B0iAE11#,EE110199704-199910

SHADOW GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12080-B0iAE11#,EE110199704-199910

SHADOW GRAY,TRIM1#

64745KCLIP(FOR REAR COMBINATUON LAMP SERVICE COVER)

main90467-05021-B6×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

sub90467-06177

main90467-05021-P0×4iAE111..GL,XLI;AE111..GLI..NZ;AE112,EE110..ARL,GCC,NZ199704-199910

SHADOW GRAY,TRIM10

sub90467-06177

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12100-B0iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

SHADOW GRAY,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

64766CCLIP(FOR QUARTER TRIM JACK COVER)

main90467-05091-B1×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

SHADOW GRAY,TRIM1#

64770DCOVER ASSY, SPARE WHEEL

main64770-12210iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

9018305094

main90183-05094

9046710161

main90467-10161

9046804157

main90468-04157

9166160616

main91661-60616

9354054012

main93540-54012

22 parts on this diagram · 1 diagram in section
