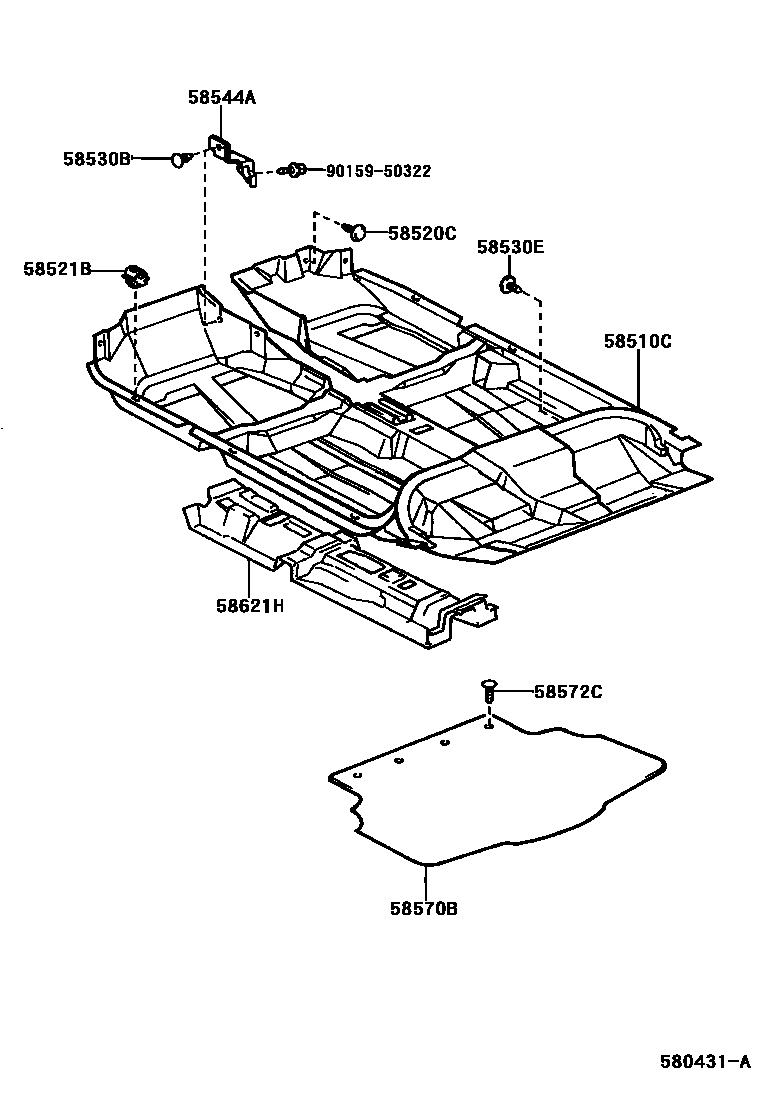

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E550-B0iAE11#..ARL199808-200109

DARK CHARCOAL,TRIM1#

sub58510-1H020

main58510-1E550-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub58510-1H020

main58510-1E550-B1iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub58510-1H020

main58510-1E560-B0iAE111..GLI..GEN199704-200109

W(FOOT REST),DARK CHARCOAL,TRIM1#

sub58510-1H020

main58510-1E560-B0iAE11#..NZ199710-199810

DARK CHARCOAL,TRIM1#

sub58510-1H020

main58510-1E740-B0iAE11#,EE110..LHD199704-200008

W(FOOT REST),DARK CHARCOAL,TRIM1#

sub58510-1H030

main58510-1H020-B0iEE110..GEN199704-199910

DARK CHARCOAL,TRIM1#

main58510-1H030-B0iAE112,EE110..GCC199704-200008

DARK CHARCOAL,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

BLACK,TRIM1#

sub90467-09068

58521BHOOK, FLOOR CARPET

main58521-12120iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-07042-C0iAE11#..ARL199808-200109

BLACK,TRIM1#

sub90467-07042

sub90467-06175

58544ABRACKET, FLOOR CARPET, LH

main58544-12040iAE112,EE110..GCC199704-200008

main58544-13040iAE11#..RHD..(ARL,GEN)199704-200109

58570BMAT ASSY, REAR FLOOR

main58570-12310-B0iAE11#,EE110..GCC,GEN,NZ199704-200109

SHADOW GRAY,TRIM1#

sub58570-12410

main58570-12310-B0iAE111..ARL;AE112..GLI..ARL199808-200109

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

sub58570-12410

main58570-12410-B0iAE11#..ARL199808-200109

W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1#

58572CCLIP, REAR FLOOR MAT SET

main90467-05021-B6iEE110..GCC;AE11#..GLI,XLI199704-199709

MD.CHARCOAL,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-P0iEE110..GCC;AE11#..GLI,XLI199704-199709

SHADOW GRAY,TRIM10

sub90467-05021

sub90467-06177

main90467-06048-B7iAE11#,EE110199709-200109

SHADOW GRAY,TRIM1#

sub90467-06048

main90467-06048-P1iAE11#200008-200109

DK.GRAY,TRIM1#

sub90467-06048

58621HPAD, FRONT FLOOR SILENCER

main58621-12100iAE11#..ARL199808-200109

9015950322

main90159-50322

10 parts on this diagram · 1 diagram in section
