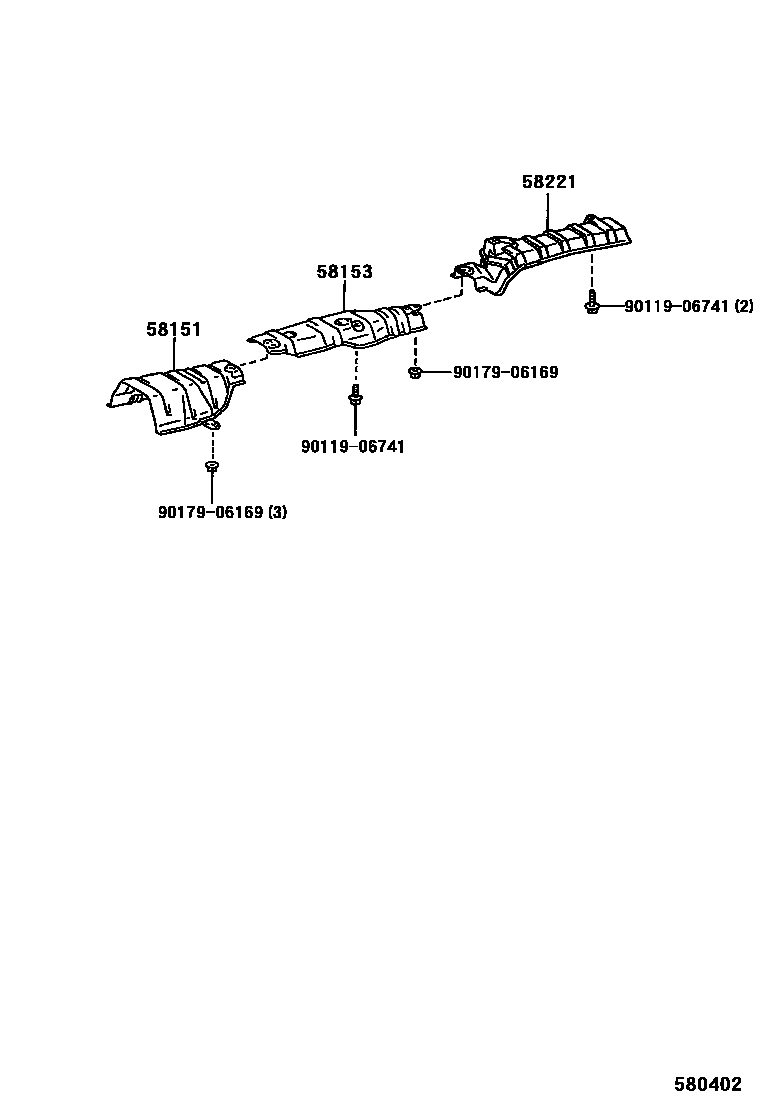

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12200iAE11#..RHD..(ARL,GEN)199704-200109

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12150iAE11#..RHD..(ARL,GEN)199704-200109

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-12110iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

9011906741

main90119-06741

9017906169

main90179-06169

5 parts on this diagram · 1 diagram in section
