COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE11#,EE110199704-199910

55185ABRACE, DASH PANEL TO COWL

main55185-12010iAE11#,EE110..LHD199704-199910

55701PANEL SUB-ASSY, COWL

main55700-1A120iAE111..GL199704-199907

main55700-1A121iAE111..GL199907-199910

main55700-1A240iEE110..GCC199704-199901

sub55700-1A241

main55700-1A250iAE112..GCC199704-199901

sub55700-1A251

main55700-1A300iEE110..GCC199901-199907

main55700-1A301iEE110..GCC199907-199910

main55700-1A310iAE112..GCC199901-199907

main55700-1A311iAE112..GCC199907-200008

main55700-1A900iAE11#..RHD..(ARL,GEN)199704-199909

main55700-1A902iAE11#,EE110..RHD199909-199910

55713APANEL, COWL TOP SIDE, RH

main55713-12081iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

55714APANEL, COWL TOP SIDE, LH

main55714-12081iAE11#,EE110199704-199910

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12160iAE11#..RHD..(ARL,GEN)199704-200109

main55708-12200iAE11#,EE110..LHD199704-199910

sub55708-12210

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010×4iAE11#,EE110199704-199910

56111GLASS, WINDSHIELD

main56111-1A690iAE11#,EE110199704-199901

*LAM,T=4.76,GREEN

main56111-1A790iAE112,EE110..GCC199901-199910

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAE11#,EE110199704-199910

9008011261

main90080-11261

9011906228

main90119-06228

9016440093

main90164-40093

9017906216

main90179-06216

9018904208

main90189-04208

9046706131B1

main90467-06131B1

9046706131B2

main90467-06131B2

9046706133B4

main90467-06133B4

9046706133C0

main90467-06133C0

9095001722

main90950-01722

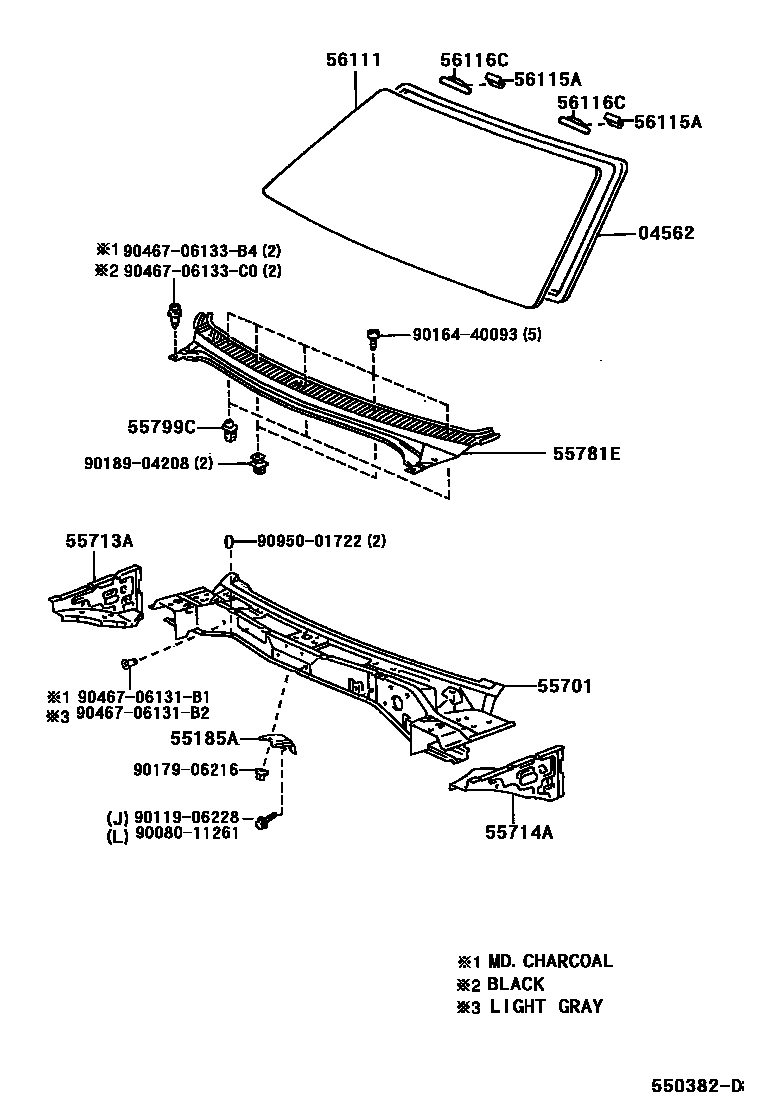

20 parts on this diagram · 1 diagram in section
