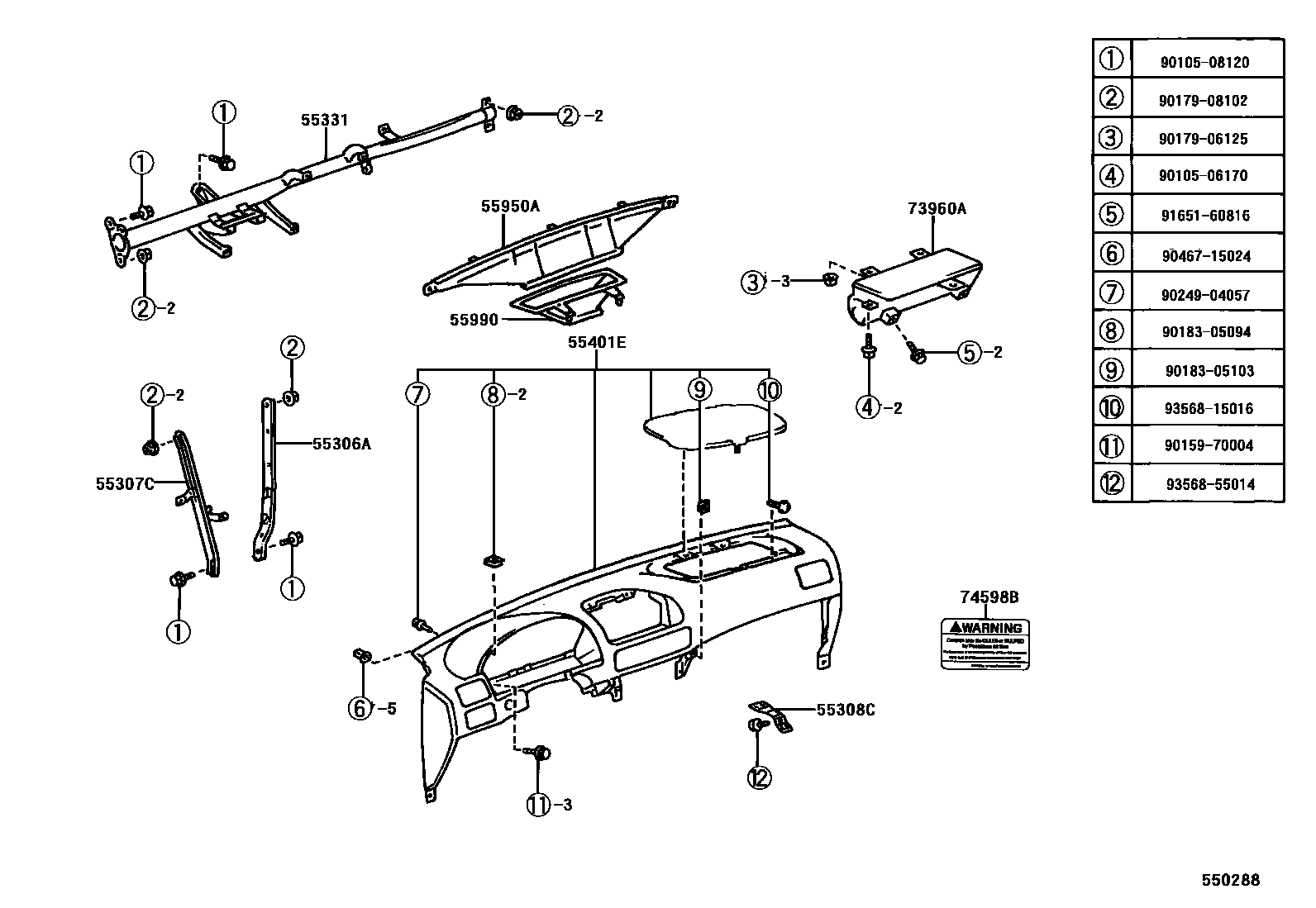

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12260iAE11#..RHD..(ARL,GEN)199704-200109

main55306-12290iAE11#,EE110..LHD199704-199910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12270iAE11#,EE110..LHD199704-199910

main55307-12280iAE11#..RHD..(ARL,GEN)199704-200109

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12260iAE11#,EE110199704-199910

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12340iAE112,EE110..GCC199704-199906

main55330-12341iAE112,EE110..GCC199906-199910

main55330-12370iAE11#..RHD199910-200109

main55330-12371iAE11#..RHD199908-199910

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12470-B1iAE11#,EE110..LHD199812-199910

DK.CHARCOAL,TRIM1#

sub55401-12590

sub55401-12630

main55401-12520-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main55401-12520-B1iAE11#..(GLI,XLI)..(ARL,GEN)199704-200109

DK.CHARCOAL,TRIM1#

main55401-12530-B0iAE112..XLI..ARL199904-199906

main55401-12530-B1iAE11#,EE110..RHD199704-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#

main55401-12540-B0iAE112,EE110..GCC199704-199812

W(*80,DRIVER SIDE),DK.CHARCOAL,TRIM1#

main55401-12550-B0iAE112,EE110..GCC199704-199812

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),DK.CHARCOAL,TRIM1#

main55401-12560-B1iAE112,EE110..GCC199812-200008

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#

sub55401-12620

sub55401-12640

55950ANOZZLE ASSY, DEFROSTER

main55950-12220iAE11#,EE110..RHD199704-199910

main55950-12230iAE11#,EE110..LHD199704-199910

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12040iAE112,EE110..GCC199704-200008

main55990-12050iAE11#,EE110..RHD199704-199910

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12020iAE11#..RHD..(ARL,GEN)199704-200109

main73960-12090iAE11#,EE110..LHD199704-199910

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

9010506170

main90105-06170

9010508120

main90105-08120

9015970004

main90159-70004

9017906125

main90179-06125

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046715024

main90467-15024

9165160816

main91651-60816

9356815016

main93568-15016

9356855014

main93568-55014

21 parts on this diagram · 4 diagrams in section
