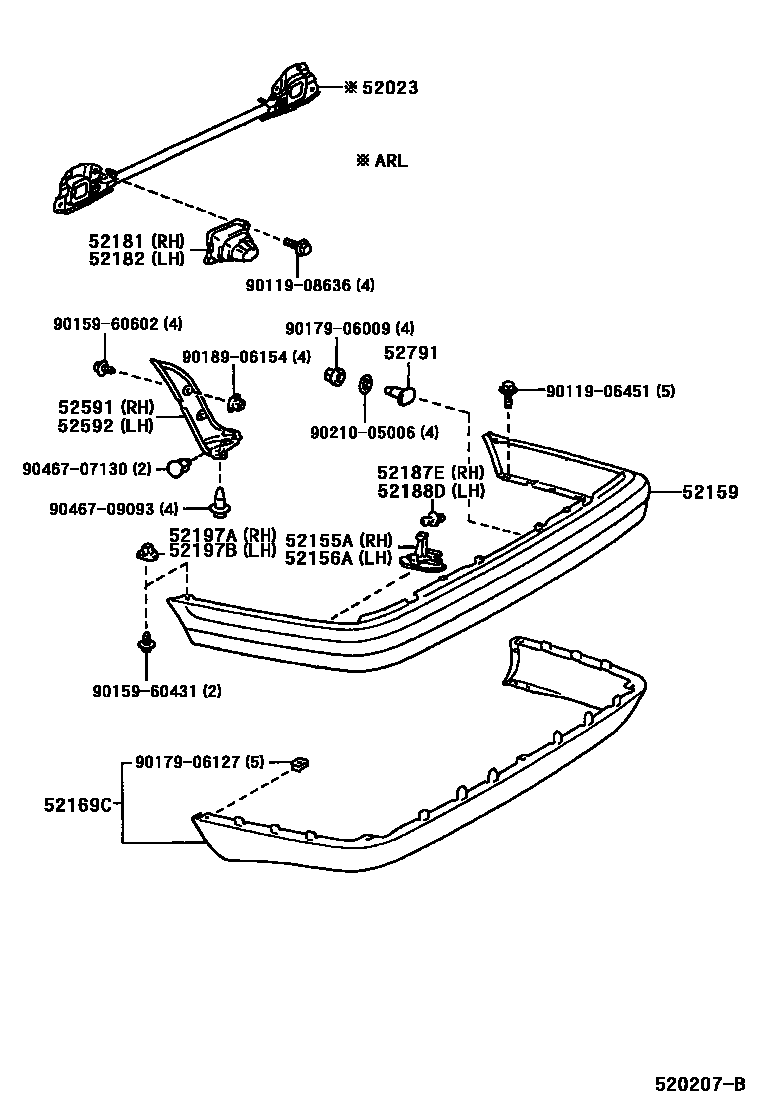

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-12180iAE11#..ARL199808-200109

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12230iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-12230iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52159COVER, REAR BUMPER

main52159-1A710iAE111..GLI..GEN199704-200109

52169CCOVER, REAR BUMPER, LOWER

main52169-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52181ARM, REAR BUMPER, RH

main52181-12410iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

sub52181-12430

52182ARM, REAR BUMPER, LH

main52182-12330iAE11#,EE110199704-200109

sub52182-12350

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iAE11#,EE110199704-200109

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-16020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52591SEAL, REAR BUMPER SIDE, RH

main52591-12110iAE11#,EE110199704-200109

52592SEAL, REAR BUMPER SIDE, LH

main52592-12030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010iAE11#,EE110199704-199909

sub90109-06354

main90109-06354iAE11#,EE110199909-200109

9011906451

main90119-06451

9011908636

main90119-08636

9015960431

main90159-60431

9015960602

main90159-60602

9017906009

main90179-06009

9017906127

main90179-06127

9018906154

main90189-06154

9021005006

main90210-05006

9046707130

main90467-07130

9046709093

main90467-09093

24 parts on this diagram · 1 diagram in section
