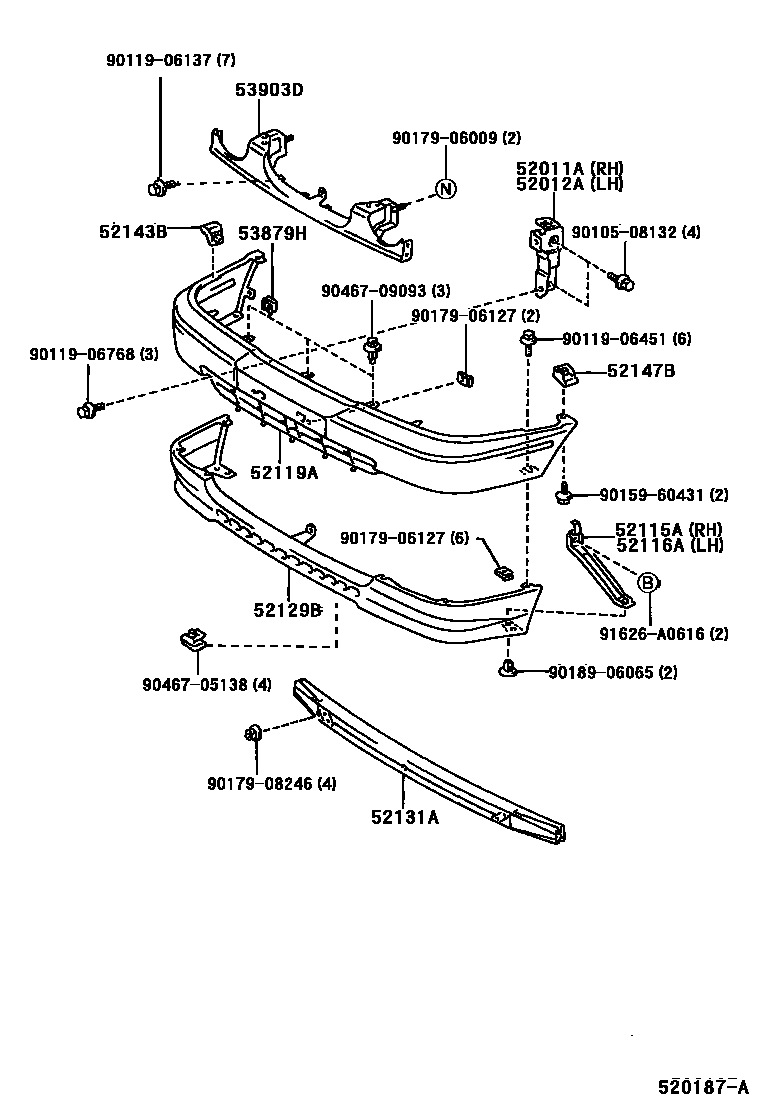

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52141-12430iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

main52141-12490iAE11#,EE110199910-200109

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52142-12360iAE11#,EE110199704-199910

main52142-12420iAE11#,EE110199910-200109

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12320iAE11#,EE110199704-200109

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12290iAE11#,EE110199704-200109

52119ACOVER, FRONT BUMPER

main52119-1E020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

main52119-1E610iAE11#,EE110199910-200109

main52119-1E630iAE112..GLI,GT199910-200109

W(FOG LAMP)

sub52119-1E610

52129BCOVER, FRONT BUMPER, LOWER

main52129-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

52131AREINFORCEMENT, FRONT BUMPER

main52131-12180iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52143BBRACKET, FRONT BUMPER SIDE

main52143-12350iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-12190iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

53879HRETAINER, FRONT FENDER LINER

main53879-12010iAE11#,EE110199704-200109

53903DEXTENSION SUB-ASSY, FRONT BUMPER, UPR

main53903-12080iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

main53903-12110iAE11#,EE110199910-200109

9010508132

main90105-08132

9011906137

main90119-06137

9011906451

main90119-06451

9011906768

main90119-06768

9015960431

main90159-60431

9017906009

main90179-06009

9017906127

main90179-06127

9017908246

main90179-08246

9018906065

main90189-06065

9046705138

main90467-05138

9046709093

main90467-09093

91626A0616

main91626-A0616

23 parts on this diagram · 2 diagrams in section
