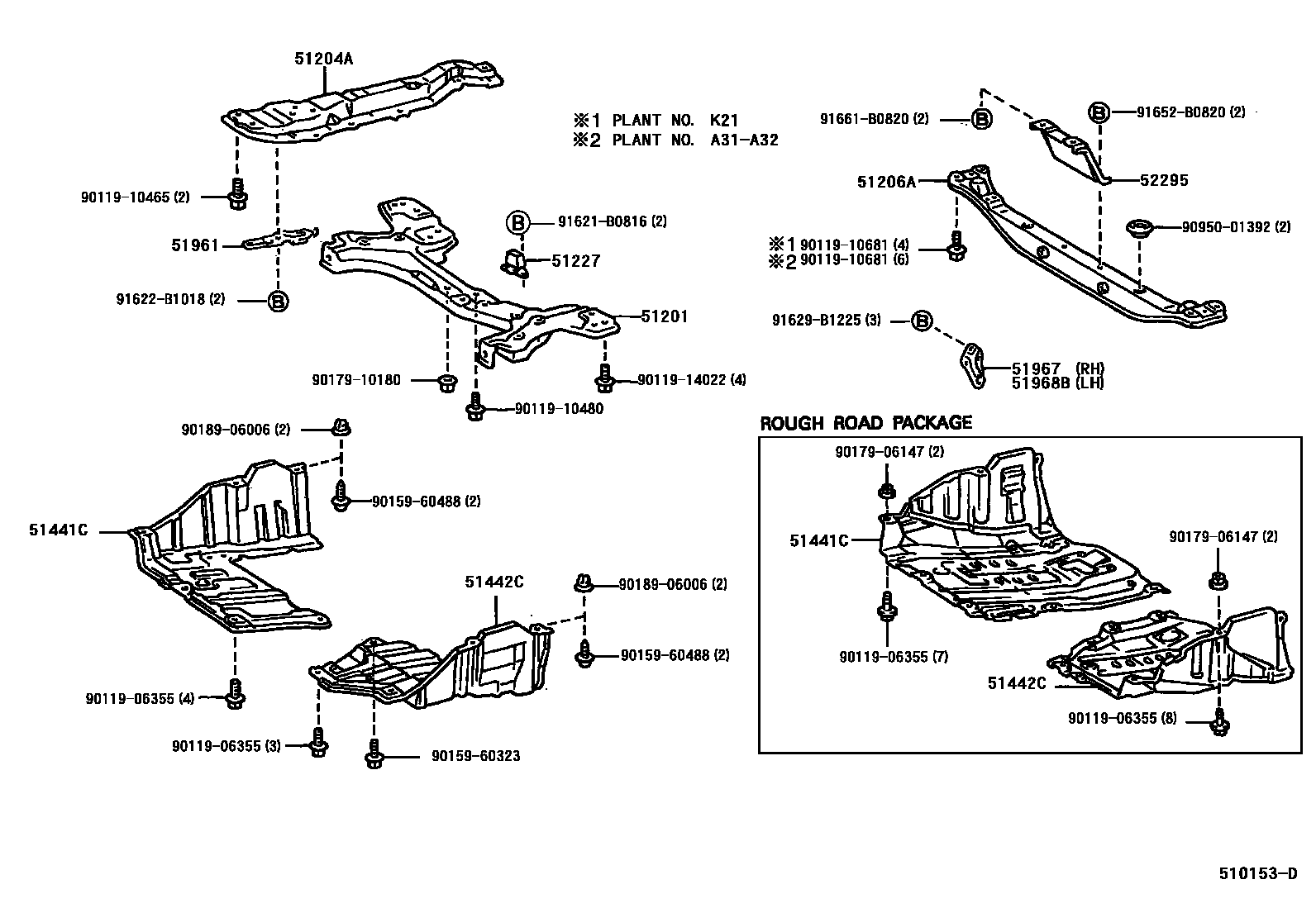

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12380iAE11#,EE110199704-199910

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199905

main51204-12081iAE11#,EE110199905-199910

main51204-12082iAE11#,EE110200001-200109

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE11#..ARL199808-200109

main51206-12060iAE11#,EE110..GCC,GEN,NZ199704-199910

PLANT NO. A31-A32

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE11#..ARL,GCC199704-200109

51441CCOVER, ENGINE UNDER, RH

main51408-12060iAE111..GLI..GEN199704-200109

ROUGH ROAD PACKAGE

main51441-12160iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

main51441-12170iAE11#,EE110199910-200109

51442CCOVER, ENGINE UNDER, LH

main51409-12040iAE111,EE110..GEN199704-199910

ROUGH ROAD PACKAGE

main51442-12120iAE11#,EE110..5F199704-199910

main51442-12130iAE11#..4FC199704-199910

main51442-12140iAE11#,EE110..5F199910-200109

main51442-12150iAE11#..4FC199910-200109

51961HOOK, NO.1

main51960-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

51967HOOK, TRANSPORT, REAR

main51967-12220iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE11#..ARL199808-200109

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main52295-12020iAE11#..ARL199808-200109

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9015960488

main90159-60488

9017906147

main90179-06147

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91629B1225

main91629-B1225

91652B0820

main91652-B0820

91661B0820

main91661-B0820

26 parts on this diagram · 2 diagrams in section
