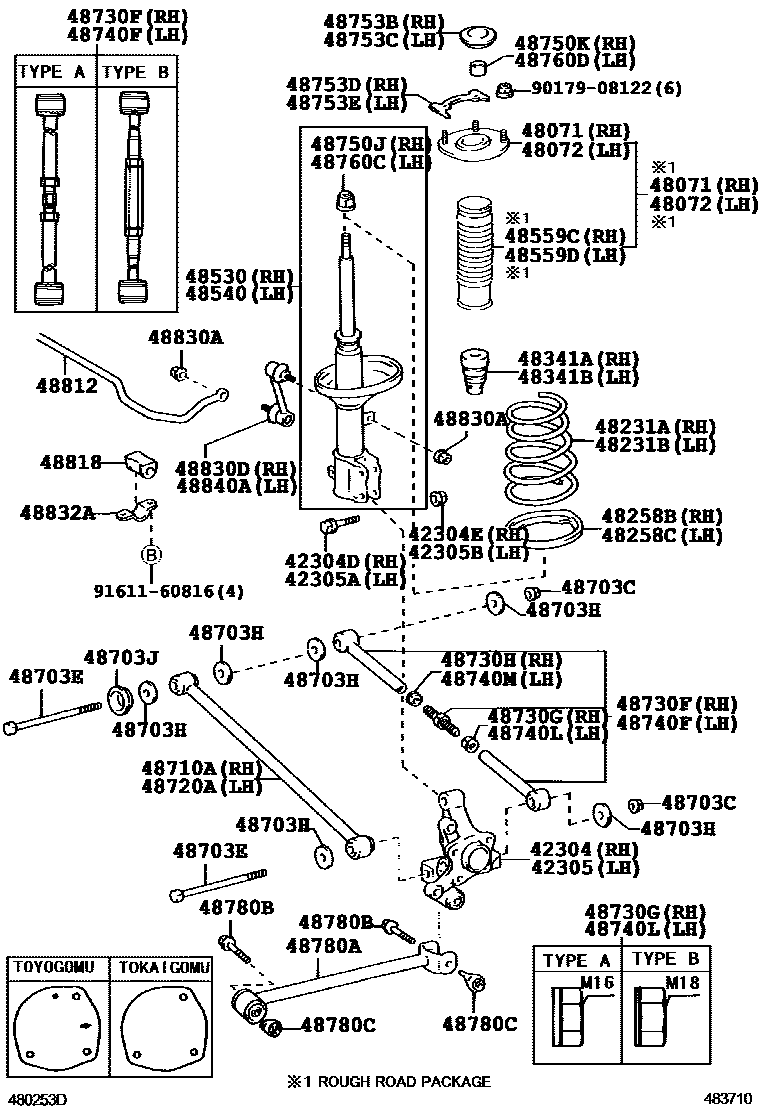

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12090iAE112..GCC;AE111..RHD..(ARL,GEN)199704-200109

W(ABS)

main42304-12090iAE112..NZ199710-199810

main42304-12130iAE112..GCC;AE111,EE110199704-200109

main42304-12140iAE112..ARL199808-200109

W(REAR DISC BRAKE)

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-12102iAE11#,EE110199704-200109

sub90105-12236

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-12025iAE11#,EE110199704-200109

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12090iAE112..GCC;AE111..RHD..(ARL,GEN)199704-200109

W(ABS)

main42305-12090iAE112..NZ199710-199810

main42305-12130iAE11#,EE110199704-200109

main42305-12140iAE112..ARL199808-200109

W(REAR DISC BRAKE)

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-12102iAE11#,EE110199704-200109

sub90105-12236

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-12025iAE11#,EE110199704-200109

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48071-12140iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48071-12140iAE11#..ARL199710-200109

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48072-12140iAE11#..ARL199710-200109

main48072-12140iAE11#,EE110..GCC,GEN199704-200109

ROUGH ROAD PACKAGE

48231ASPRING, COIL, REAR RH

main48231-1H050iAE11#,EE110..GCC,GEN199704-200109

ROUGH ROAD PACKAGE

main48231-1H330iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48231-1H460iAE11#..ARL199808-200109

48231BSPRING, COIL, REAR LH

main48231-1H050iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48231-1H330iAE11#,EE110..GCC,GEN199704-200109

main48231-1H460iAE11#..ARL199808-200109

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48341-12130iAE11#..ARL199710-200109

main48341-12180iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12130iAE11#..ARL,NZ199710-200109

main48341-12130iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48341-12180iAE11#,EE110..GCC,GEN199704-200109

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-19645iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48530-19715iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48530-80011iAE11#..NZ199710-199810

main48530-80016iAE11#..ARL199808-200109

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-19095iAE11#,EE110..GCC,GEN199704-200109

main48540-19165iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

main48540-19285iAE11#..NZ199710-199810

main48540-19295iAE11#..ARL199808-200109

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-12080iAE11#..ARL199704-200109

ROUGH ROAD PACKAGE,TOYO GOMU

main48559-12080iAE11#..ARL199704-200109

TOYO GOMU

main48559-12090iAE11#..NZ199710-199810

W(FRONT STABILIZER)

main48559-12090iAE11#..ARL199704-200109

TOKAIGOMU

main48559-12090iAE11#..ARL199704-200109

ROUGH ROAD PACKAGE,TOKAIGOMU

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-12080iAE11#,EE110..GCC,GEN,NZ199704-200109

ROUGH ROAD PACKAGE,TOYO GOMU

main48559-12080iAE11#..ARL199704-200109

TOYO GOMU

main48559-12090iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TOKAIGOMU

main48559-12090iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE,TOKAIGOMU

main48559-12090iAE11#..NZ199710-199810

W(FRONT STABILIZER)

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14025iAE11#,EE110199704-200109

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-14099iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

*14-1.5PX222-29

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14035iAE11#..ARL199704-200109

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-12010iAE11#..ARL199808-200109

NO.2

main90209-15002iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main90209-15002iAE11#..ARL199808-200109

NO.1

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-12200iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-12200iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-12110iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main48730-12160iAE11#..ARL199710-200109

main48730-13020iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE B:REFER TO ILLUSTRATION

sub48730-12170

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18016iAE11#..ARL199710-200109

main90179-18016iAE11#,EE110..GCC,GEN199704-200109

TYPE B:REFER TO ILLUSTRATION

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18017iAE11#,EE110..GCC,GEN199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18017iAE11#..ARL199710-200109

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-12110iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main48730-12160iAE11#..ARL,NZ199710-200109

main48730-13020iAE11#,EE110..GCC,GEN199704-200109

TYPE B:REFER TO ILLUSTRATION

sub48730-12170

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18016iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE B:REFER TO ILLUSTRATION

main90179-18016iAE11#..ARL199710-200109

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE A:REFER TO ILLUSTRATION

main90179-18017iAE11#..ARL,NZ199710-200109

main90179-18017iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

TYPE B:REFER TO ILLUSTRATION

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iAE11#,EE110199704-200109

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-12050iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-12050iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-12080iAE11#..ARL199710-200109

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-12080iAE11#..ARL199710-200109

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAE11#,EE110199704-200109

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48780AROD ASSY, STRUT, REAR

main48780-12080iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48780BBOLT(FOR STRUT ROD)

main90119-12152iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48780CNUT(FOR STRUT ROD)

main90179-12091iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48812BAR, STABILIZER, REAR

main48812-12160iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48812-12180iAE11#..NZ199710-199810

main48812-12180iAE111..GEN199910-200109

W(STABILIZER)

main48812-12190iAE111..ARL;AE112..GLI..ARL199808-200109

NEW ZEALAND SPEC

main48812-12200iAE11#..ARL199808-200109

48818BUSH, STABILIZER, REAR

main48818-12160iAE11#..NZ199710-199810

main48818-12160iAE111..GEN199910-200109

W(STABILIZER)

main48818-12170iAE111..ARL;AE112..GLI..ARL199808-200109

NEW ZEALAND SPEC

main48818-12180iAE11#..ARL199808-200109

main48818-12220iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183iAE11#,EE110199704-200109

48830DLINK ASSY, REAR STABILIZER, RH

main48830-12060iAE11#,EE110199704-200109

sub48830-20010

main48830-20010iAE11#..ARL199808-200109

NEW ZEALAND SPEC

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20030iAE11#,EE110199704-200109

48840ALINK ASSY, REAR STABILIZER, LH

main48830-12060iAE11#,EE110199704-200109

sub48830-20010

main48830-20010iAE11#..ARL199808-200109

NEW ZEALAND SPEC

9017908122

main90179-08122

9161160816

main91611-60816

49 parts on this diagram · 2 diagrams in section
