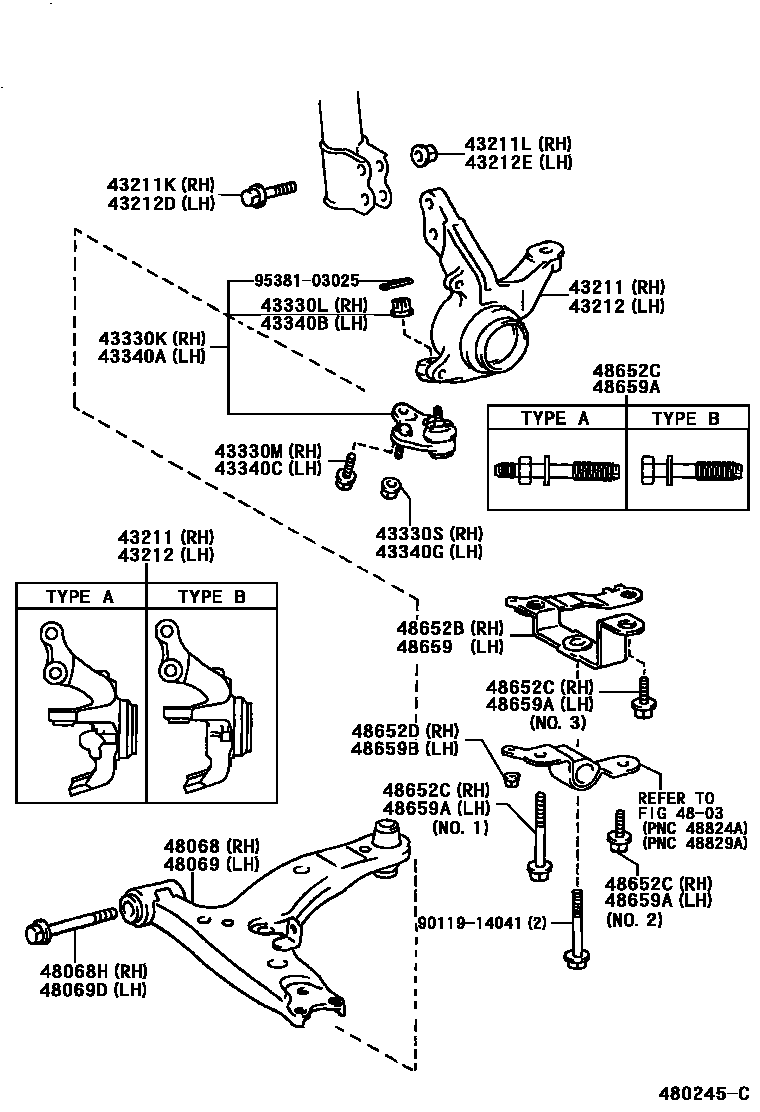

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-12290iAE111..GLI..GEN;AE112,EE110..GCC199704-199910

W(POWER STEERING)

main43211-12290iAE112..ARL;AE111..ARL,NZ199710-200109

TYPE A:REFER TO ILLUSTRATION

main43211-12290iAE11#,EE110..GCC,GEN199910-200109

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

main43211-12300iAE11#..(GLI,XLI)..(ARL,GCC,GEN)199704-199910

main43211-12300iAE11#199910-200109

W(ABS)

main43211-12310iEE110199704-200008

main43211-12330iAE11#,EE110199910-200109

W(POWER STEERING)

sub43211-12290

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE11#,EE110199704-200109

OD=15.0,TYPE A:REFER TO ILLUSTRATION

main90105-15004iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=13.9,TYPE B:REFER TO ILLUSTRATION

main90105-15005iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=13.3,TYPE B:REFER TO ILLUSTRATION

main90105-15006iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=12.4,TYPE B:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43212KNUCKLE, STEERING, LH

main43212-12250iAE111..GLI..GEN;AE112,EE110..GCC199704-199910

W(POWER STEERING)

main43212-12250iAE112..ARL;AE111..ARL,NZ199710-200109

TYPE A:REFER TO ILLUSTRATION

main43212-12250iAE11#,EE110..GCC,GEN199910-200109

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

main43212-12260iAE112;AE111..RHD..(ARL,GEN)199704-199910

main43212-12260iAE112..GT199910-200109

W(ABS)

main43212-12270iEE110199704-200008

main43212-12290iAE11#,EE110199910-200109

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

sub43212-12250

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=15.0,TYPE A:REFER TO ILLUSTRATION

main90105-15004iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=13.9,TYPE B:REFER TO ILLUSTRATION

main90105-15005iAE11#,EE110199704-200109

OD=13.3,TYPE B:REFER TO ILLUSTRATION

main90105-15006iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

OD=12.4,TYPE B:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE11#,EE110199704-200109

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12160iAE11#,EE110..GCC,GEN199704-200109

main48068-12171iAE111..GLI..GEN199704-200109

W(STABILIZER BRACKET)

main48068-12181iAE11#..ARL199808-200109

main48068-12191iAE11#,EE110..GCC,GEN199704-200109

ROUGH ROAD PACKAGE

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12160iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main48069-12171iAE111..GLI..GEN199704-200109

W(STABILIZER BRACKET)

main48069-12181iAE11#..ARL199808-200109

main48069-12191iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

ROUGH ROAD PACKAGE

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE11#,EE110199704-200109

48652BBRACKET, FRONT LOWER ARM, RH

main48652-12070iAE11#..NZ199710-199810

main48652-12070iAE111..GLI..GEN199704-200109

W(FRONT STABILIZER)

main48652-12091iAE11#..ARL199808-200109

main48652-12100iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE11#,EE110199704-200109

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

*10-1.25PX29-23,NO.2

main90119-10692iAE11#..ARL199710-200109

*10-1.25PX29-23

main90119-12125iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

*12-1.25PX31-25.3,NO.3

main90119-12125iAE11#..ARL,NZ199710-200109

*12-1.25PX31-25.3

main90119-12238iAE11#,EE110199704-200109

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08145iAE11#,EE110199704-200109

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48659-12070iAE111..GLI..GEN199704-200109

W(FRONT STABILIZER)

main48659-12070iAE11#..NZ199710-199810

main48659-12091iAE11#..ARL199808-200109

main48659-12100iAE11#,EE110..GCC,GEN199704-200109

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

*10-1.25PX29-23,NO.2

main90119-10692iAE11#..ARL199710-200109

*10-1.25PX29-23

main90119-12125iAE11#..ARL199710-200109

*12-1.25PX31-25.3

main90119-12125iAE11#,EE110..GCC,GEN199704-200109

*12-1.25PX31-25.3,NO.3

main90119-12238iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08145iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

sub90179-08123

9011914041

main90119-14041

9538103025

main95381-03025

27 parts on this diagram · 2 diagrams in section
