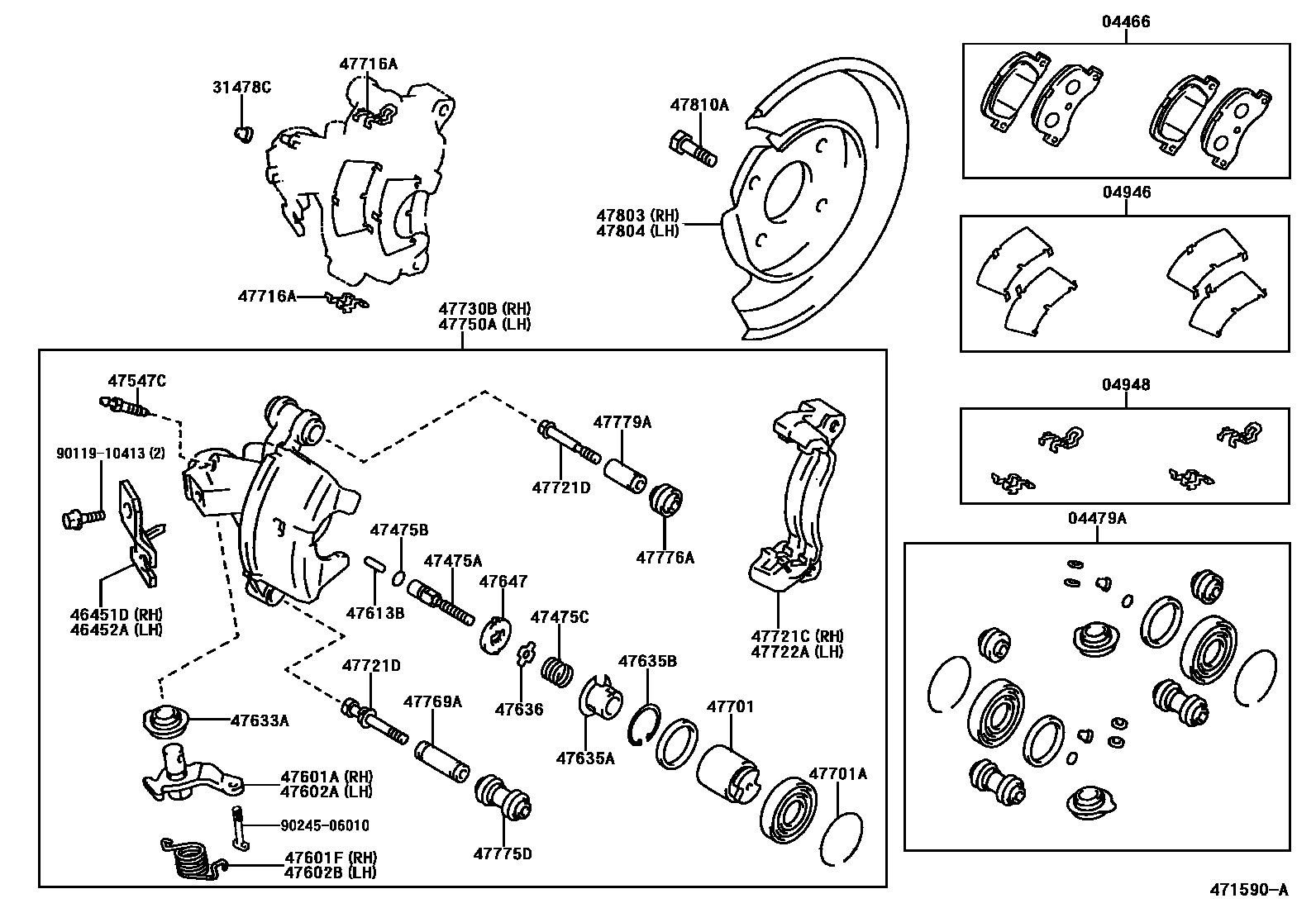

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12040iAE112..ARL199808-199910

main04466-12110iAE112..ARL199910-200109

sub04466-12120

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12190iAE112..ARL199808-199910

main04479-12200iAE112..ARL199910-200109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12010iAE112..ARL199808-199910

04948FITTING KIT, DISC BRAKE, REAR

main04948-12020iAE112..ARL199808-199910

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAE112..ARL199808-200109

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-12030iAE112..ARL199808-200109

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-12020iAE112..ARL199808-200109

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030×2iAE112..ARL199808-199910

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007×2iAE112..ARL199808-200109

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051×2iAE112..ARL199808-199910

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAE112..ARL199808-200109

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12030iAE112..ARL199808-200109

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32021iAE112..ARL199808-199910

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12030iAE112..ARL199808-200109

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32020iAE112..ARL199808-199910

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020×2iAE112..ARL199808-200109

47633ABOOT, PARKING BRAKE CRANK

main47633-12010×2iAE112..ARL199808-200109

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12020×2iAE112..ARL199808-199910

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002×2iAE112..ARL199808-199910

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010×2iAE112..ARL199808-199910

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12020×2iAE112..ARL199808-199910

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12030×2iAE112..ARL199808-199910

main47701-12050×2iAE112..ARL199910-200109

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-43004×2iAE112..ARL199808-199910

main90522-45001×2iAE112..ARL199910-200109

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-12020×4iAE112..ARL199808-200109

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-12190iAE112..ARL199808-200109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098×2iAE112..ARL199808-199910

*8-1.25PX56-15

main90119-08431×2iAE112..ARL199808-200109

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-12190iAE112..ARL199808-200109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12460iAE112..ARL199808-199910

main47730-12470iAE112..ARL199910-200109

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12460iAE112..ARL199808-199910

main47750-12470iAE112..ARL199910-200109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010×2iAE112..ARL199808-199910

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2iAE112..ARL199808-200109

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12020×2iAE112..ARL199808-200109

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010×2iAE112..ARL199808-200109

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12060iAE112..ARL199808-200109

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12060iAE112..ARL199808-200109

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10167×4iAE112..ARL199808-200109

9011910413

main90119-10413

9024506010

main90245-06010

38 parts on this diagram · 1 diagram in section
