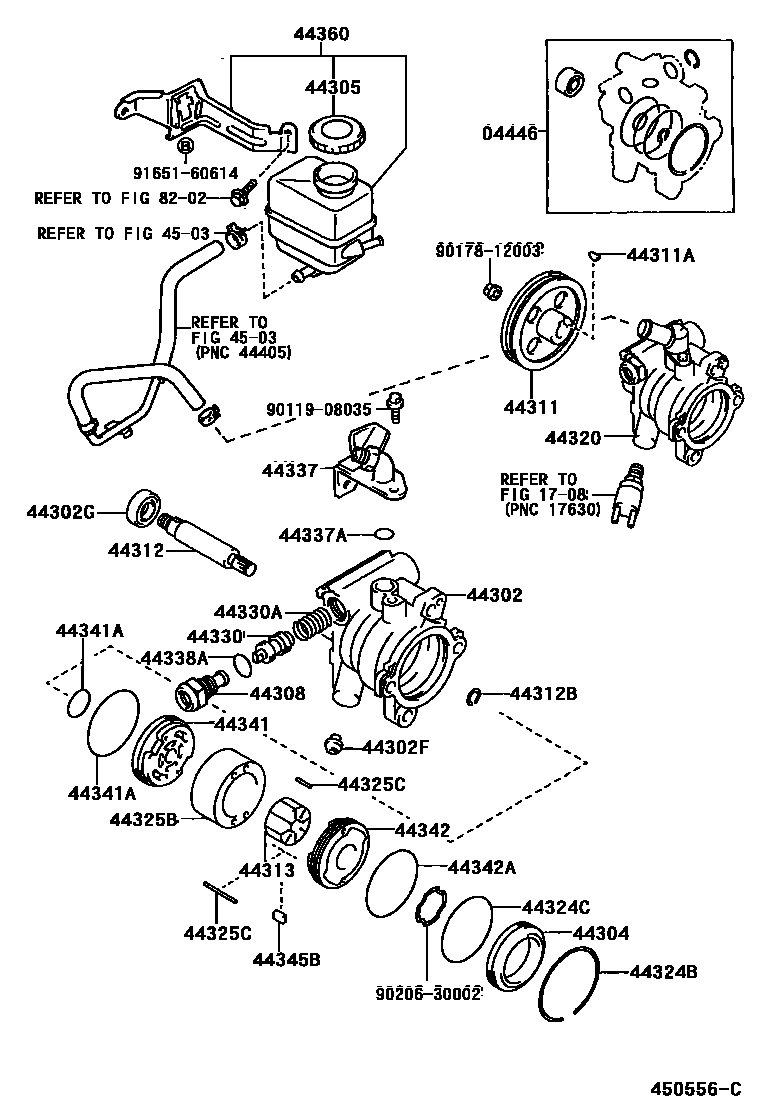

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20120iEE110..GCC199704-200008

main04446-32011iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12110iEE110199704-200008

main44302-12160iAE11#199704-200109

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iEE110..GCC199704-200008

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEE110199704-200008

main90311-18015iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44324-12031iEE110..GCC199704-200008

main44324-26031iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iEE110..GCC199704-200008

sub44305-12040

main44305-22040iAE11#199704-200109

sub44305-22060

44308UNION SUB-ASSY, PRESSURE PORT

main44308-12042iEE110199704-200008

main44308-12110iAE11#199704-199705

main44308-28010iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199705-200109

44311PULLEY, VANE PUMP

main44311-12090iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main44311-12100iEE110..GCC199704-200008

main44311-12110iEE110..GEN199704-199910

44311AKEY, VANE PUMP PULLEY

main90280-05008iEE110..GCC199704-200008

44312SHAFT, VANE PUMP

main44312-12030iEE110..GCC199704-200008

main44312-32020iAE11#199704-200109

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

44313ROTOR, VANE PUMP

main44313-22040iEE110199704-200008

NO MARK

main44313-22050iEE110199704-200008

MARK 1

main44313-22060iEE110199704-200008

MARK 2

main44313-22070iEE110..GCC199704-200008

MARK 3

main44313-22080iEE110..GCC199704-200008

MARK 4

main44313-26060iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

NO MARK

main44313-26070iAE11#199704-200109

MARK 1

main44313-26080iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 2

main44313-26090iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 3

main44313-26100iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 4

44320PUMP ASSY, VANE

main44320-12212iEE110..GCC199704-200008

main44320-12342iAE111..GL199704-199910

main44320-12391iAE11#..GLI,XLI199704-200109

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iEE110..GCC199704-200008

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-53006iEE110..GCC199704-200008

sub90301-53007

44325BRING, VANE PUMP CAM

main44325-12110iEE110..GCC199704-200008

NO MARK

main44325-12120iEE110199704-200008

MARK 1

main44325-12130iEE110199704-200008

MARK 2

main44325-12140iEE110..GCC199704-200008

MARK 3

main44325-12150iEE110..GCC199704-200008

MARK 4

main44325-12270iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

NO MARK

main44325-12280iAE11#199704-200109

MARK 1

main44325-12290iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 2

main44325-12300iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 3

main44325-12310iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK 4

44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEE110..GCC199704-200008

L=28,OD=4.0

main90250-04049iEE110..GCC199704-200008

L=43,OD=4.0

main90250-04071iAE11#199704-200109

L=23.3,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-12311iEE110199704-200008

MARK A

main44330-12321iEE110199704-200008

MARK B

main44330-12331iEE110199704-200008

MARK C

main44330-12341iEE110199704-200008

MARK D

main44330-12351iEE110..GCC199704-200008

MARK E

main44330-12361iEE110..GCC199704-200008

MARK F

main44330-12570iAE11#199704-200109

MARK A

sub44330-32191

main44330-12580iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK B

sub44330-32201

main44330-12590iAE11#199704-200109

MARK C

sub44330-32211

main44330-12600iAE11#199704-200109

MARK D

sub44330-32221

main44330-12610iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

MARK E

sub44330-32231

main44330-12620iAE11#199704-200109

MARK F

sub44330-32241

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEE110199704-200008

main90501-13034iAE11#199704-200109

44337UNION, POWER STEERING SUCTION PORT

main44337-12060iEE110..GCC199704-200008

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19013iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

ID=19.2,OD=22.3

sub90301-19018

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iEE110..GCC199704-200008

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iEE110..GCC199704-200008

INNER

sub90301-25008

main90301-52001iEE110..GCC199704-200008

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main44342-32010iEE110199704-200008

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

OUTER

main90301-47001iAE11#199704-200109

INNER

main90301-52001iEE110199704-200008

44345BPLATE, VANE PUMP

main44345-12010iEE110..GCC199704-200008

L=14.997

main44345-12020iEE110..GCC199704-200008

L=14.995

main44345-12030iEE110..GCC199704-200008

L=14.993

main44345-12040iEE110199704-200008

L=14.991

main44345-12050iEE110..GCC199704-200008

L=14.989

main44345-26010iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

L=15.000

main44345-26020iAE11#199704-200109

L=14.998

main44345-26030iAE11#199704-200109

L=14.996

main44345-26040iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

L=14.994

main44345-26050iAE11#199704-200109

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-12160iAE11#199704-200109

main44360-12050iEE110199704-200008

4503

8202

9011908035

main90119-08035

9017812003

main90178-12003

9020630002

main90206-30002

9165160614

main91651-60614

35 parts on this diagram · 3 diagrams in section
