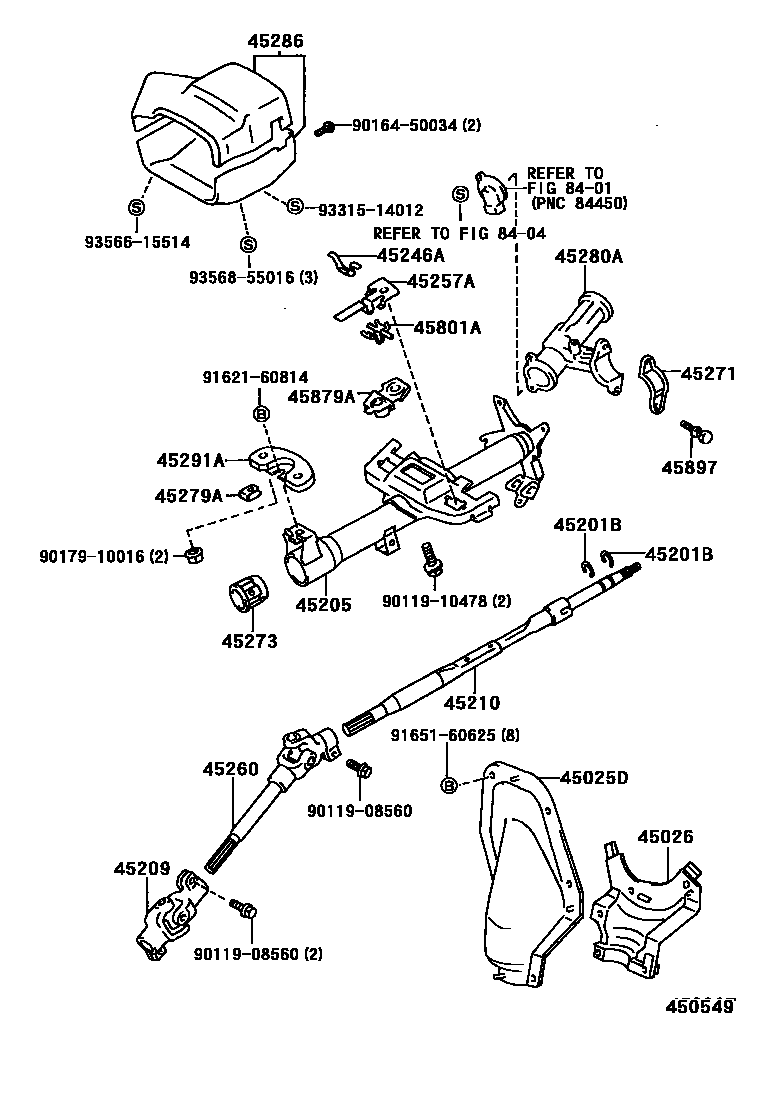

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iEE110..GEN199704-199910

main45025-12190iEE110..GCC199704-200008

main45025-12201iAE112,EE110..GCC199704-200008

W(POWER STEERING)

main45025-13010iAE11#,EE110..RHD199704-200109

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iEE110..GEN199704-199910

main45026-12020iAE11#,EE110..RHD199704-200109

W(POWER STEERING)

main45026-12030iEE110..GCC199704-200008

main45026-12040iAE112,EE110..GCC199704-200008

W(POWER STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

T=1.20,LOWER

main90520-17269iAE11#,EE110199704-200109

T=1.20,UPPER

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12350iAE112..GCC;AE111,EE110..ARL,GCC199704-200109

main45205-12360iAE11#,EE110199704-200109

W(TILT STEERING)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12060iEE110199704-200008

main45209-12080iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

W(TILT STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-12480iAE11#,EE110199704-200109

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12350iEE110..GEN199704-199910

main45260-12430iAE11#,EE110..RHD199704-200109

W(TILT STEERING)

main45260-12440iEE110..GCC199704-200008

main45260-12450iAE112,EE110..GCC199704-200008

W(TILT STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iAE11#,EE110199704-200109

45273BUSH, STEERING MAIN SHAFT

main45273-38010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45279AATTACHMENT, STEERING COLUMN TUBE, LWR

main45279-12040iAE112,EE110..GCC199704-200109

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12321iEE110..GEN199704-199910

sub45280-12341

main45280-12331iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

W(DOOR LOCK CONTROL)

sub45280-12341

main45280-12341iAE11#..4FC..ARL199910-200109

45286COVER, STEERING COLUMN

main45286-12962-B1iAE112,EE110..GCC199704-200109

DK.CHARCOAL,TRIM1#

sub45286-12963

main45286-12963-B0iAE112..GT199910-200109

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45286-12963

main45286-12963-B1iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

W(TILT STEERING),DK.CHARCOAL,TRIM1#

sub45286-12963

main45286-12963-B1iAE11#..NZ199710-199810

DK.CHARCOAL,TRIM1#

sub45286-12963

main45286-12963-C0iAE112..XLI..ARL199904-199906

LEVIN SPEC(AUSTRALIA),BLACK,TRIM12

sub45286-12963

45291ASUPPORT, STEERING COLUMN TUBE

main45291-50010iAE112..GCC;AE111,EE110..ARL,GCC199704-200109

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45879ACAPSULE, BREAK AWAY

main45879-12050iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45897BOLT, STEERING LOCK SET

main45897-12020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

8401

8404

9011908560

main90119-08560

9011910478

main90119-10478

9016450034

main90164-50034

9017910016

main90179-10016

9162160814

main91621-60814

9165160625

main91651-60625

9331514012

main93315-14012

9356615514

main93566-15514

9356855016

main93568-55016

29 parts on this diagram · 2 diagrams in section
