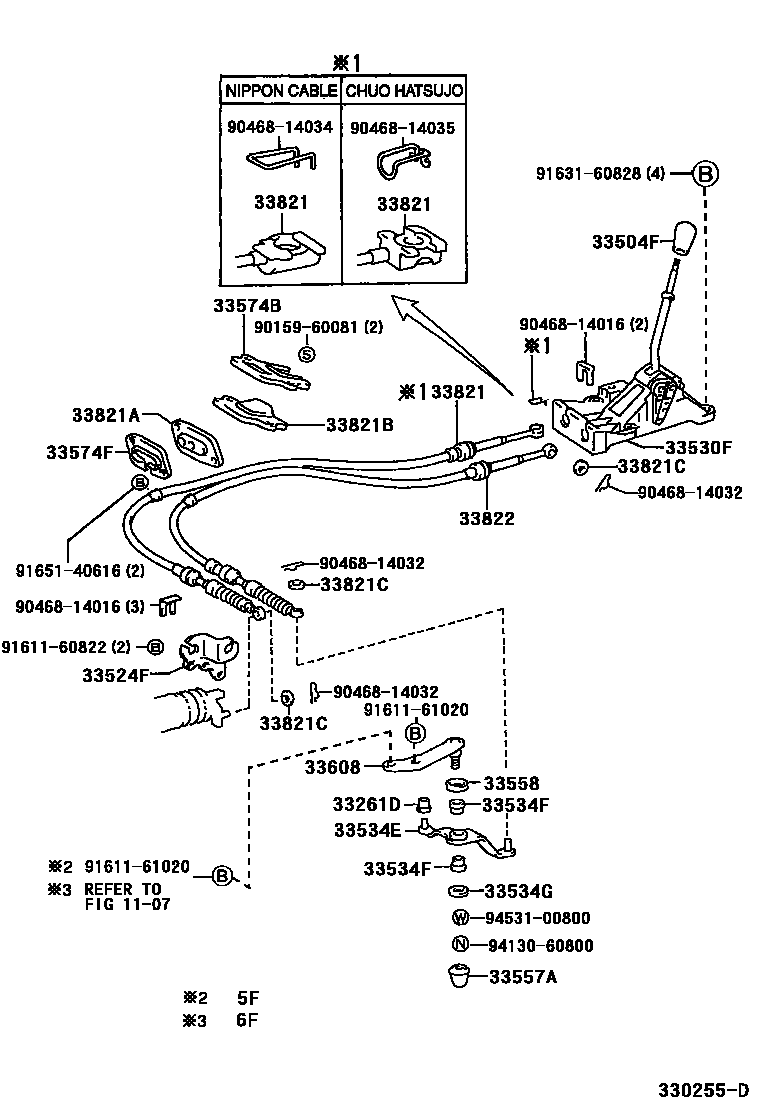

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

1107

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199808-200109

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B4iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(GLI,XL,XLI)..(ARL,GCC)199704-200109

DK.CHARCOAL,TRIM1#

main33504-12180-P0iAE112..5F..ARL199904-199906

LEVIN SPEC(AUSTRALIA),SHADOW GRAY,TRIM12

main33542-12210-B0iAE112..4FC..GT199910-200109

SHADOW GRAY,TRIM1#

sub33542-12211

sub33542-12181

main33542-12210-B4iAE11#..RHD..4FC199704-199910

DK.CHARCOAL,TRIM1#

sub33542-12211

sub33542-12181

main33542-12230-B1iAE112..4FC..GCC199704-199910

DK.CHARCOAL,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAE11#,EE110..5F199704-199808

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02040iAE112,EE110..5F..GCC199907-199910

(L)

main33530-12630iAE11#,EE110..RHD..5F199704-199910

main33530-12681iAE11#,EE110..LHD..5F199704-199907

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iEE110199704-199910

main33534-16051iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199808-200109

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iAE11#,EE110..5F199704-199808

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAE11#,EE110..5F199704-199808

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAE11#,EE110..5F199704-199808

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAE11#,EE110..5F199704-199808

33574BRETAINER, SHIFT CABLE GROMMET, NO.2

main33574-12060iAE11#,EE110..5F199704-199910

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-12080iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-10032iEE110199704-199910

main33608-16021iAE11#..5F..(ARL,GCC,GEN)199808-199910

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-12720iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199910

CHUO HATSUJO

main33821-12730iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199910

NIPPON CABLE

main33821-12810iAE11#,EE110..5F199910-200109

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90480-01400iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)

main90480-01398iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

main90480-01672iAE11#..4FC199704-199910

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077×2iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(GLI,XL,XLI)..(ARL,GCC)199704-200109

OD=30,TRANSAXLE SIDE

main90201-10042iAE112..5F..GT199910-200109

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-12290iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199910

main33822-12400iAE11#,EE110..5F199910-200109

9015960081

main90159-60081

9046814016

main90468-14016

9046814032

main90468-14032

9046814034

main90468-14034

9046814035

main90468-14035

9161160822

main91611-60822

9161161020

main91611-61020

9163160828

main91631-60828

9165140616

main91651-40616

9413060800

main94130-60800

9453100800

main94531-00800

29 parts on this diagram · 4 diagrams in section
