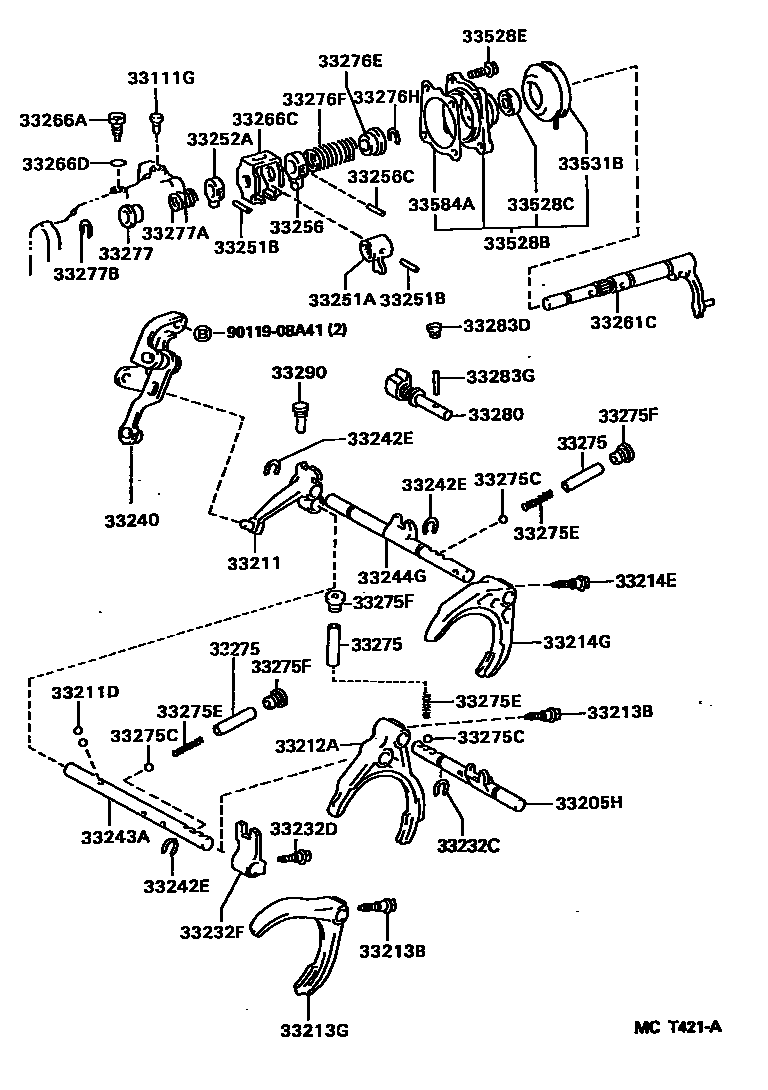

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iAE11#,EE110..5F199704-200109

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-10072iEE110199704-199907

main33205-12022iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

main33205-12060iEE110199907-200008

main33205-20030iAE11#..5F..(GLI,GT,XLI)199907-200109

sub33205-20040

33211FORK, REVERSE SHIFT

main33211-12021iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33211DBALL(FOR REVERSE SHIFT FORK)

main90360-06004iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

OD=6.35

33212AFORK, GEAR SHIFT, NO.1

main33212-10013iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33213BBOLT(FOR SHIFT FORK SET)

main90105-06115iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33213GFORK, GEAR SHIFT, NO.2

main33213-10022iAE11#,EE110..5F199704-199907

main33213-20050iAE11#,EE110..5F199907-200109

33214EBOLT(FOR GEAR SHIFT FORK LOCK)

main90105-06115iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33214GFORK, GEAR SHIFT, NO.3

main33214-12030iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199907

main33214-20050iAE111..RHD..5F;AE112,EE110..5F..(ARL,GCC)199907-200109

33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)

main90520-12003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33232DBOLT (FOR SHIFT HEAD SET)

main90105-06115iAE11#,EE110..5F199704-200109

33232FHEAD, GEAR SHIFT, NO.1

main33232-10021iEE110199704-200008

main33232-12012iAE11#..5F199704-200109

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-16020iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-10042iEE110199704-199907

main33243-12093iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

main33243-12130iEE110..GCC199907-200008

main33243-20070iAE11#..5F..(GLI,GT,XLI)199907-200109

33244GSHAFT, GEAR SHIFT FORK, NO.3

main33244-10042iEE110..GCC199704-199907

main33244-12054iAE11#..5F199704-199907

main33244-12110iEE110..GCC199907-200008

main33244-20060iAE11#..5F199907-200109

sub33244-20070

33251ALEVER, SHIFT, INNER NO.1

main33251-10050iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

main33251-12080iEE110200001-200008

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05016iAE11#,EE110..5F199704-200109

L=25.5

33252ALEVER, SHIFT, INNER NO.2

main33252-12011iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33256LEVER, SELECT INNER

main33256-12022iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)

main90254-05016iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33261CSHAFT, SHIFT & SELECT LEVER

main33261-10060iEE110..GCC199704-200001

main33261-10061iEE110200001-200008

main33261-12051iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

33266ABOLT (FOR SHIFT INTERLOCK PLATE)

main90109-12073iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199907

main90109-18005iAE11#,EE110..5F199907-200109

33266CPLATE, SHIFT INTERLOCK

main33266-12021iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33266DGASKET (FOR SHIFT INTERLOCK PLATE)

main90430-12008iAE11#,EE110..5F199704-199907

main90430-18008iAE111..RHD..5F;AE112,EE110..5F..(ARL,GCC)199907-200109

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12041iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

OD=10.7

33275CBALL (FOR SHIFT DETENT)

main90360-10003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-12168iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-12004iAE11#,EE110..5F199704-200109

33276ESEAT, SELECT SPRING, NO.1

main33276-12022iAE11#,EE110..5F199704-200109

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

main90501-16142iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)

main90520-15003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33277SEAT, SELECT SPRING, NO.2

main33277-12011iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

main90501-16136iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33277BRING, E (FOR SELECT SPRING NO.2 SEAT)

main90523-12003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33280PIN ASSY, REVERSE RESTRICT

main33280-10021iEE110..GCC199704-200008

main33280-12061iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

33283DPLUG (FOR REVERSE RESTRICT PIN)

main90341-10065iAE11#,EE110..5F199704-200109

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05003iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33290BALL ASSY, LOCK, NO.1

main33290-12011iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33528BCOVER, CONTROL SHAFT

main33506-12061iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33528CSEAL, OIL (FOR CONTROL SHAFT COVER)

main90311-18013iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33528EBOLT (FOR CONTROL SHAFT COVER)

main90119-10288iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

*10-1.25PX25-19.8

main91611-61025iAE11#,EE110..5F199704-200109

*10-1.25PX25-25

sub91612-61025

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-12020iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33584AGASKET, CONTROL SHIFT LEVER RETAINER

main33584-12050iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

9011908A41

main90119-08A41

45 parts on this diagram · 1 diagram in section
