VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17302HOSE SUB-ASSY, AIR

main17302-15010i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17302ACLIP, HOSE

main96132-51000i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17303BPIPE SUB-ASSY, AIR, NO.1

main17303-11460i2E..EE110..GCC199704-200008

NO.2

main17303-11550i2E..EE110..GCC199704-200008

NO.3

main17303-11690i2E..EE110..GCC199704-200008

NO.1

main17303-15060i7AFE..AE112199704-200109

main17303-15090i4AFE..AE111..ARL,GEN199704-200109

17630VALVE ASSY, AIR CONTROL

main17630-15030i2E..EE110199704-200008

main17630-15080i4AFE,7AFE..AE11#199704-200109

23262VALVE, BIMETAL VACUUM SWITCHING, NO.1

main25820-11040i2E..EE110..GCC199704-200008

main90925-05068i4AFE,7AFE..AE11#..ARL,GEN199704-200109

23265FILTER, GAS, NO.1

main90917-11022i7AFE..AE112..ARL,GCC199704-200109

main90917-11027i2E..EE110..GCC199704-200008

main90917-11030i4AFE..AE111..ARL,GEN199704-200109

23271VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main90925-02076i4AF..AE111199704-199910

23271CHOSE, FUEL

main90910-05214i4AFE,7AFE..AE11#199704-200109

23281VALVE, VACUUM TRANSMITTING, NO.1

main90925-01100i2E..EE110..GCC199704-200008

NO.1

main90925-01101i2E..EE110..GCC199704-200008

NO.2

23283VALVE, VACUUM TRANSMITTING, NO.3

main90925-01091i2E..EE110199704-200008

23285AVALVE, CHECK, NO.1

main90917-10049i2E..EE110..GCC199704-200008

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-16210i4AF..AE111199704-199910

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-16061i4AF..AE111199704-199910

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-15020i7AFE..AE112..ARL199710-200109

main25760-16010i4AFE..AE111199704-200109

25810VALVE ASSY, BIMETAL

main25810-11080i2E..EE110199704-200008

1734111301HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11301

9010508095

main90105-08095

9011606136

main90116-06136

9012608011

main90126-08011

9017906143

main90179-06143

9017908153

main90179-08153

9033903002

main90339-03002

9033905018

main90339-05018

9033907016

main90339-07016

9041304005

main90413-04005

9044511034

main90445-11034

9044514166

main90445-14166

9044704104

main90447-04104

9044704148

main90447-04148

9046400074

main90464-00074

9046400082

main90464-00082

9046712001

main90467-12001

9046712049

main90467-12049

9046901005

main90469-01005

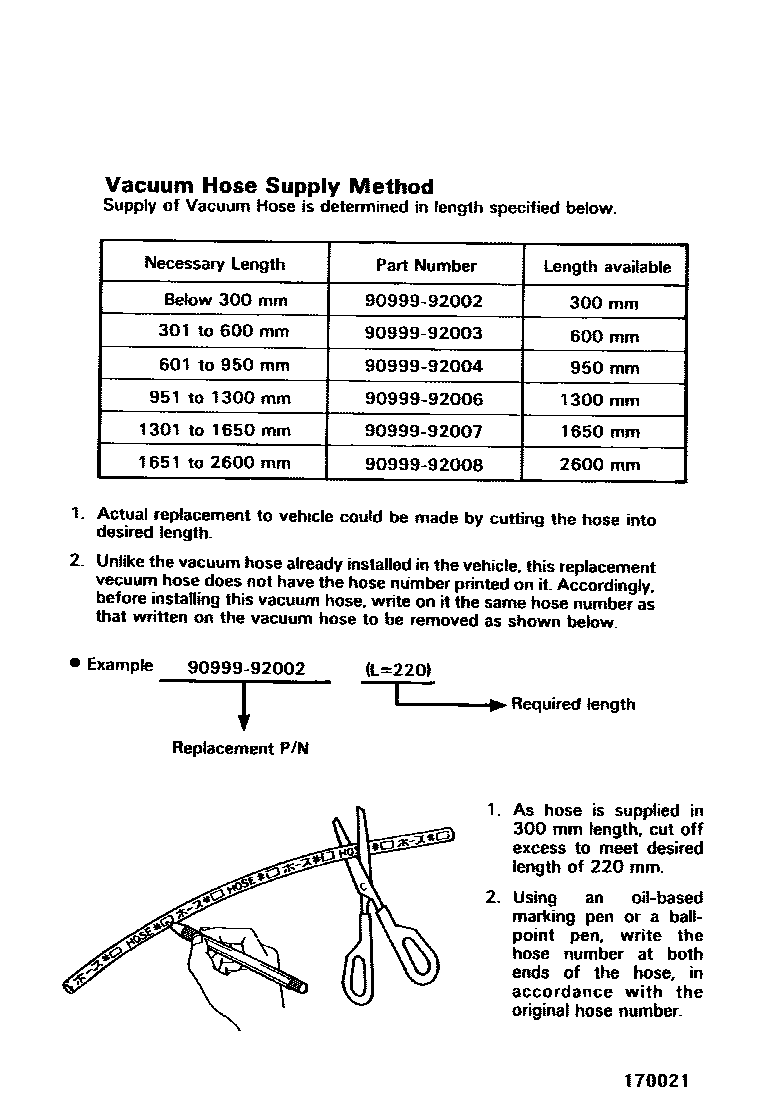

9099992002

main90999-92002

9151160614

main91511-60614

9161160812

main91611-60812

9162140814

main91621-40814

9162160612

main91621-60612

9613541100

main96135-41100

40 parts on this diagram · 4 diagrams in section
