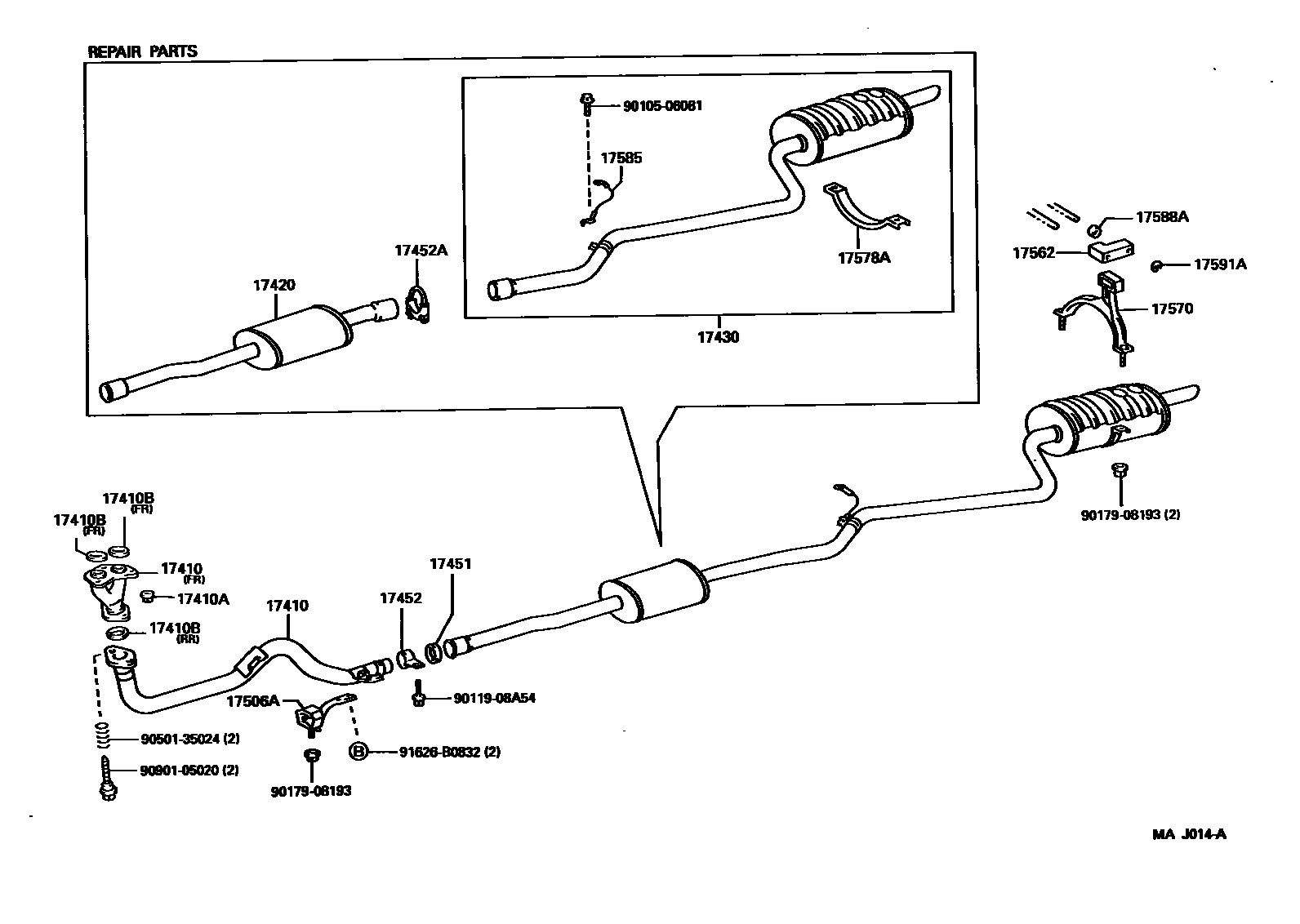

EXHAUST PIPE

0001 1W/O(CONVERTER) 0002 1W(CONVERTER) 0003 1W(CONVERTER) 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-11390i2E..EE110..GCC199704-200002

main17401-11391i2E..EE110200002-200008

main17410-1A330i4AF#,7AFE..AE11#..GCC,GEN199704-199910

W/O(CONVERTER),FRONT

main17410-1A480i4AFE..AE111..GEN199704-199808

W(CONVERTER)

sub17410-1A481

main17410-1A490i4AFE..AE111..4FC..GEN199808-200010

W(CONVERTER)

main17410-1A510i7AFE..AE112..GCC199704-200008

W/O(CONVERTER),REAR

main17410-1A550i4AFE..AE111..GEN199704-200109

W/O(CONVERTER),REAR

main17410-1A570i4AFE..AE111..NZ199710-199810

main17410-1A630i7AFE..AE112..ARL199808-200109

W(CONVERTER)

sub17410-1A631

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i4AFE..AE111..4FC..GEN199808-199910

W(CONVERTER)

17410BGASKET, EXHAUST PIPE

main17451-16030i4AF#,7AFE..AE11#..GCC,GEN199704-199910

W/O(CONVERTER),REAR

main17451-16040i4AFE..AE111..4FC..GEN199808-200010

W(CONVERTER),REAR

main90917-06061×2i4AFE..AE111..5F;7AFE..AE112..ARL;4AFE..AE111..4FC..ARL199810-199910

W(CONVERTER)

main90917-06064×2i4AFE,7AFE..AE11#..GCC,GEN199704-200109

W/O(CONVERTER),FRONT

main90917-06065i4AFE..AE111..4FC..GEN199808-200010

W(CONVERTER),FRONT

main90917-06069×2i2E..EE110199704-199910

FRONT

main90917-06080i2E..EE110..GCC199704-200008

REAR

17420PIPE ASSY, EXHAUST, CENTER

main17420-11340i2E..EE110199704-199910

W/O(CONVERTER)

main17420-16720i4AFE..AE111..GEN199808-199910

W(CONVERTER)

main17420-16730i4AFE,7AFE..AE11#..ARL199808-199910

W(CONVERTER)

17430PIPE ASSY, EXHAUST, TAIL

main17430-11820i2E..EE110..GCC199704-199811

W/O(CONVERTER)

main17430-11821i4AF#,7AFE,2E..AE11#,EE110..GCC,GEN199811-199910

main17430-1A600i4AFE..AE111..GEN199704-199808

W(CONVERTER)

main17430-1A601i4AFE,7AFE..AE11#..ARL199811-200109

sub17430-1A602

main17430-1D010i4AFE..AE111..GEN199808-200010

W(CONVERTER)

sub17430-1D011

17451GASKET, EXHAUST PIPE

main90917-06082i2E..EE110199704-199910

W/O(CONVERTER)

main90917-06084i4AFE,7AFE..AE11#..ARL,NZ199710-199910

17452CLAMP, EXHAUST PIPE

main90461-15013i2E..EE110199704-199910

W/O(CONVERTER)

main90461-15016i4AFE,7AFE..AE11#..ARL,NZ199710-199910

17452ACLAMP, EXHAUST PIPE

main17452-16120i4AFE,7AFE..AE11#..GCC,GEN199704-199808

W/O(CONVERTER)

main17452-16160i4AFE,7AFE..AE11#..ARL,GEN199704-200010

W(CONVERTER),FRONT

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-11100i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-16240i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17570BRACKET ASSY, EXHAUST PIPE SUPPORT

main17570-16020i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17578ACLAMP, MUFFLER

main17578-11030i7AFE..AE112;4AF#,2E..AE111,EE110..GL,XL,XLI199811-199910

main17578-16040i4AF#,7AFE,2E..AE11#,EE110199704-199811

W/O(CONVERTER)

17585HANGER, EXHAUST PIPE

main17585-16060i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17588ASPACER, EXHAUST PIPE HANGER

main17588-16020i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-16020×2i4AF#,7AFE,2E..AE11#,EE110199704-199910

9010506081

main90105-06081

9011908A54

main90119-08A54

9017908193

main90179-08193

9050135024

main90501-35024

9090105020

main90901-05020

91626B0832

main91626-B0832

21 parts on this diagram · 5 diagrams in section
