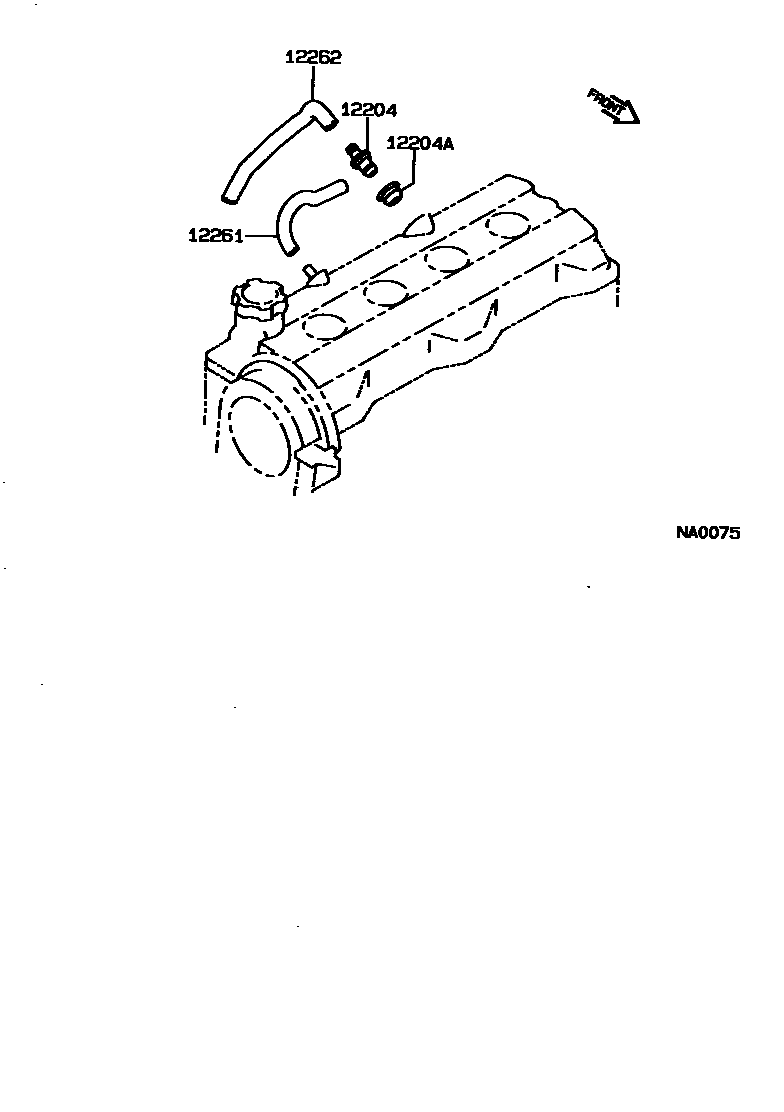

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-11040i2E..EE110..GCC199704-200008

main12204-15040i4AF..AE111199704-199910

main12204-15050i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

main90480-18006i2E..EE110199704-199910

12261HOSE, VENTILATION

main12261-11020i2E..EE110..GCC199704-200008

main12261-15090i4AF..AE111199704-199910

main90445-10064i7AFE..AE112199704-199910

main90910-05222i4AFE..AE111199704-199910

12262HOSE, VENTILATION, NO.2

main12262-10020i2E..EE110..GCC199704-199910

main12262-15040i4AF..AE111199704-199910

main90445-15063i7AFE..AE112..ARL,GCC199704-200109

sub90445-15067

main90445-15068i4AFE..AE111..ARL,GEN199704-200109

4 parts on this diagram · 3 diagrams in section
