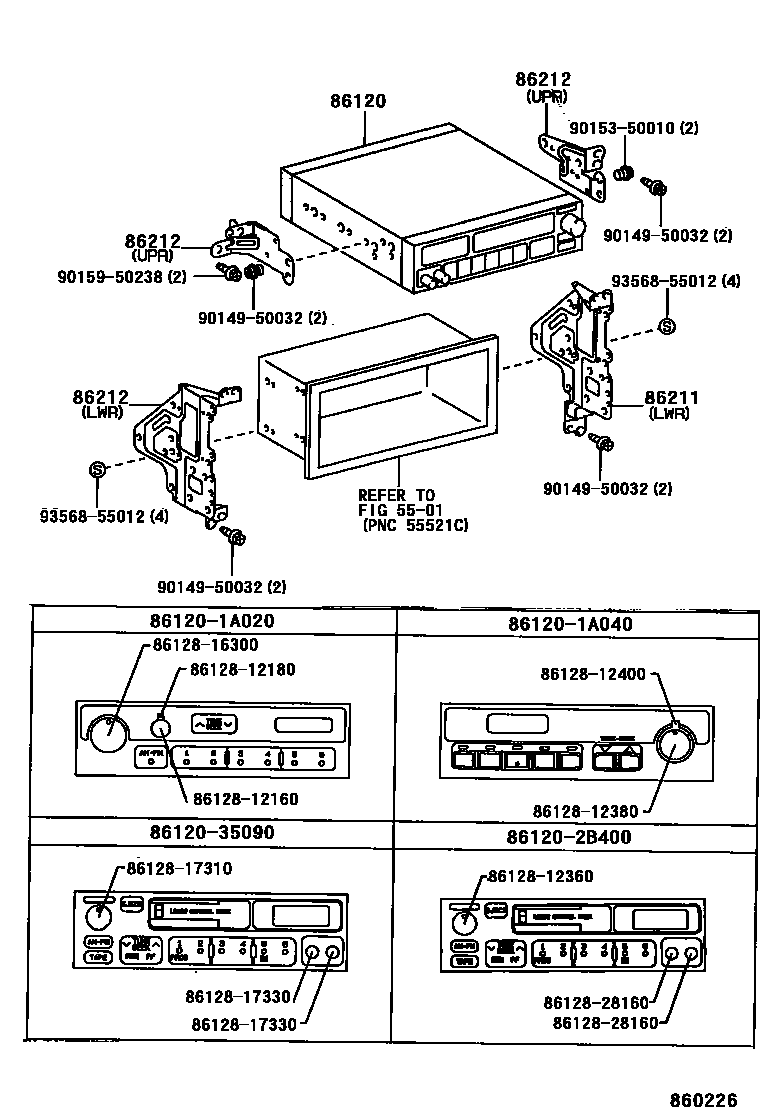

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

5501

86120RECEIVER ASSY, RADIO

main86120-1A020iAE101,EE100199205

AM/FM,(AM;9KHZ STEP)

main86120-1A040iAE101,EE100199205

AM,(AM;9KHZ STEP)

main86120-2A070iAE101,EE100..GEN199205

AM/FM,(AM;5KHZ STEP)

main86120-2A190iAE101,EE100199205

AM/SW. CASSETTE

main86120-2B360iAE101,EE100..GEN199405

*36,(AM;5KHZ STEP)

main86120-2B400iAE101,EE100..5D199205

*36,(AM;9KHZ STEP),4 SPEAKERS

main86120-35090iAE101,EE100..GEN199205-199405

*36,(AM;5KHZ STEP)

main86120-35100iAE101,EE100..GCC199508-199704

AM/FM/SW

main86120-35110iAE101,EE100..GEN199205

AM,(AM;5KHZ STEP)

86211BRACKET, RADIO, NO.1

main86211-12250iAE10#,EE100199205

LOWER

main86211-12270iAE102..ARL;AE101,EE100..RHD199205

UPPER

main86211-12310iAE101,EE100..LHD199205-199704

UPPER

86212BRACKET, RADIO, NO.2

main86212-12230iAE10#,EE100199205

LOWER

main86212-12250iAE102..ARL;AE101,EE100..RHD199205

UPPER

main86212-12290iAE101,EE100..LHD199205-199704

UPPER

8612812160KNOB, RADIO RECEIVER

main86128-12160

8612812180KNOB, RADIO RECEIVER

main86128-12180

8612812360KNOB, RADIO RECEIVER

main86128-12360

8612812380KNOB, RADIO RECEIVER

main86128-12380

8612812400KNOB, RADIO RECEIVER

main86128-12400

8612816300KNOB, RADIO RECEIVER

main86128-16300

8612817310KNOB, RADIO RECEIVER

main86128-17310

8612817330KNOB, RADIO RECEIVER

main86128-17330

8612828160KNOB, RADIO RECEIVER

main86128-28160

9014950032

main90149-50032

9015350010

main90153-50010

9015950238

main90159-50238

9356855012

main93568-55012

17 parts on this diagram · 3 diagrams in section
