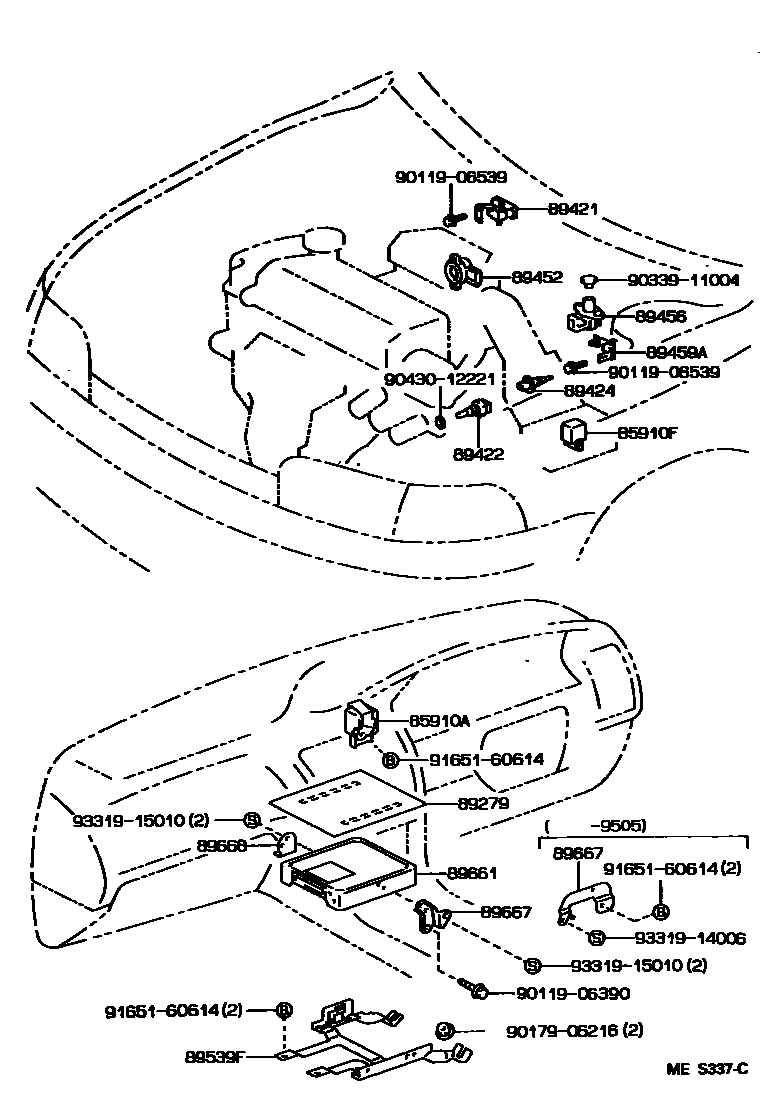

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12020iAE10#..GLI,XLI199205

main85910-12060iAE101..GCC199207-199704

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAE10#..GLI,SI,XLI199205

89279COVER, ENGINE CONTROL COMPUTER

main89279-12080iAE10#..GLI,SI,XLI199205-199407

main89279-12100iAE101..GLI199505

SINGAPORE SPEC

main89279-12110iAE10#..GLI,SI,XLI199407

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12060iAE101..GLI199205-199206

FUJI

main89420-12070iAE101..GLI199205-199206

NIPPONDENSO

main89420-12120iAE101..GCC199207-199704

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAE10#..GLI,SI,XLI199205

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE10#..GLI,SI,XLI199205

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iAE10#..GLI,SI,XLI199205

89456RESISTOR, VARIABLE

main89456-50010iAE10#..(GLI,SI,XLI)..(GCC,GEN)199205

89459ABRACKET, VARIABLE RESISTOR

main89459-12010iAE10#..(GLI,XLI)..GEN199205

89539FBRACKET, COMPUTER

main89539-12050iAE101,EE100199205-199402

89661COMPUTER, ENGINE CONTROL

main89661-12800iAE101..GLI,SI,XLI199205

main89661-12880iAE101..GLI199205-199505

SINGAPORE SPEC

main89661-1A090iAE102..GEN199505

main89661-1A250iAE102..ARL199402-199605

main89661-1A340iAE101..GLI199505

SINGAPORE SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12110iAE10#..GLI,SI,XLI199205-199505

main89667-12120iAE10#..GLI,XLI199505-199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iAE10#..GLI,SI,XLI199205

9011906390

main90119-06390

9011906539

main90119-06539

9017906216

main90179-06216

9033911004

main90339-11004

9043012221

main90430-12221

9165160614

main91651-60614

9331914006

main93319-14006

9331915010

main93319-15010

21 parts on this diagram · 1 diagram in section
