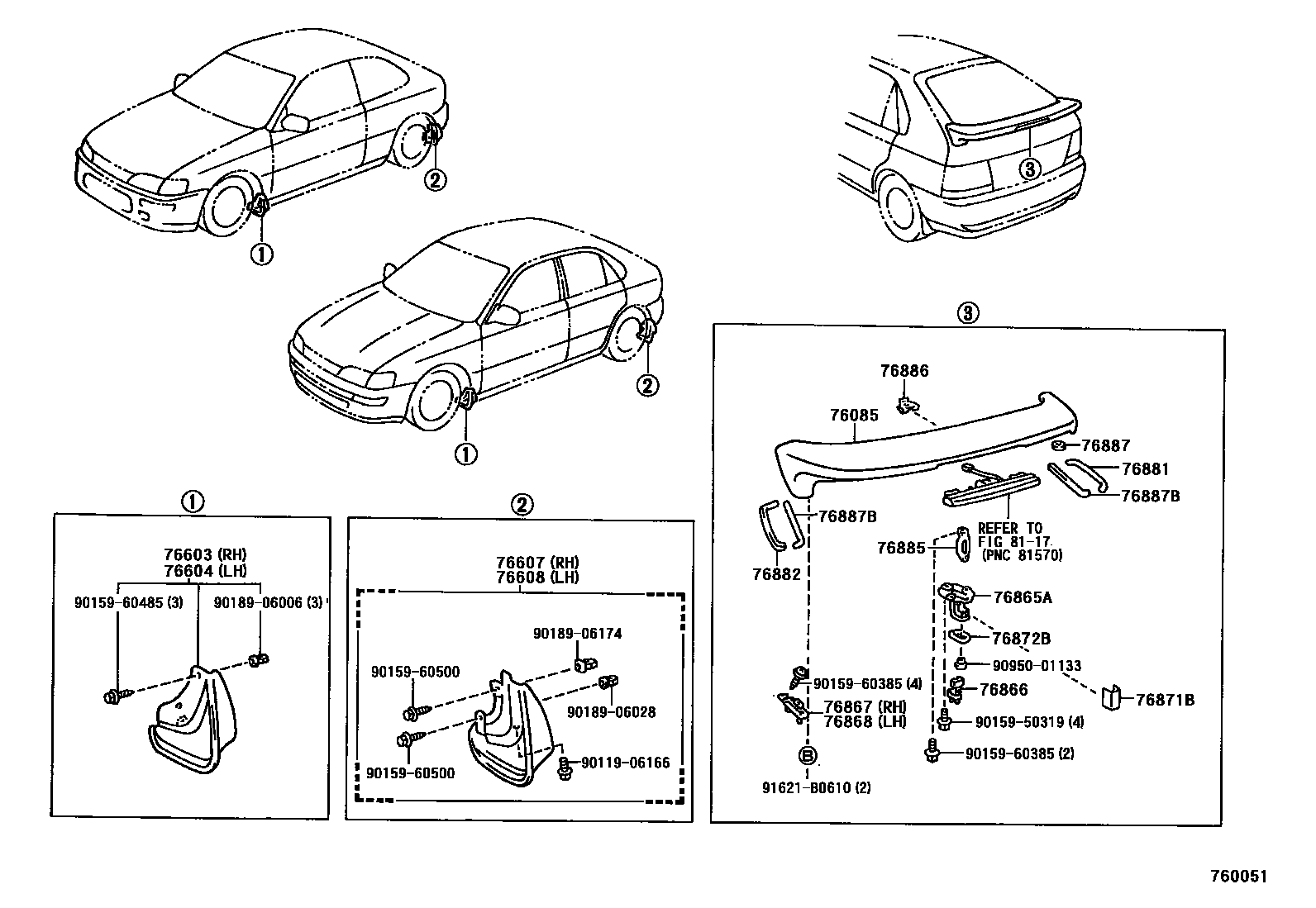

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
W(HIGH MOUNT STOP LAMP(LED))
NEW ZEALAND SPEC
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK TYPE
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK TYPE
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
DARK BLUEISH GRAY M,183
SILVER MICA M,192
BLUISH GRAY ME,182
ROSE MICA M.GRAPHITE,3K5
SUPER RED 2,3E5
GRAYISH GREEN M,6M3
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
DARK BLUEISH GRAY M,183
SILVER MICA M,192
BLUISH GRAY ME,182
ROSE MICA M.GRAPHITE,3K5
SUPER RED 2,3E5
GRAYISH GREEN M,6M3
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M,8G5
DARK BLUE MC.,8K8
76865ARETAINER, SIDE MUDGUARD
76866RETAINER, REAR SPOILER, NO.2
76867RETAINER, REAR SPOILER SIDE, RH
76868RETAINER, REAR SPOILER SIDE, LH
76871BCOVER, REAR SPOILER
76872PROTECTOR, REAR SPOILER, NO.1
NEW ZEALAND SPEC
76872BPROTECTOR, REAR SPOILER, CENTER
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76885RETAINER, REAR SPOILER, NO.5
76886RETAINER, REAR SPOILER, NO.6
8117
9011906166
main90119-06166
9015950319
main90159-50319
9015960385
main90159-60385
9015960485
main90159-60485
9015960500
main90159-60500
9018906006
main90189-06006
9018906028
main90189-06028
9018906174
main90189-06174
9095001133
main90950-01133
91621B0610
main91621-B0610
29 parts on this diagram · 2 diagrams in section
