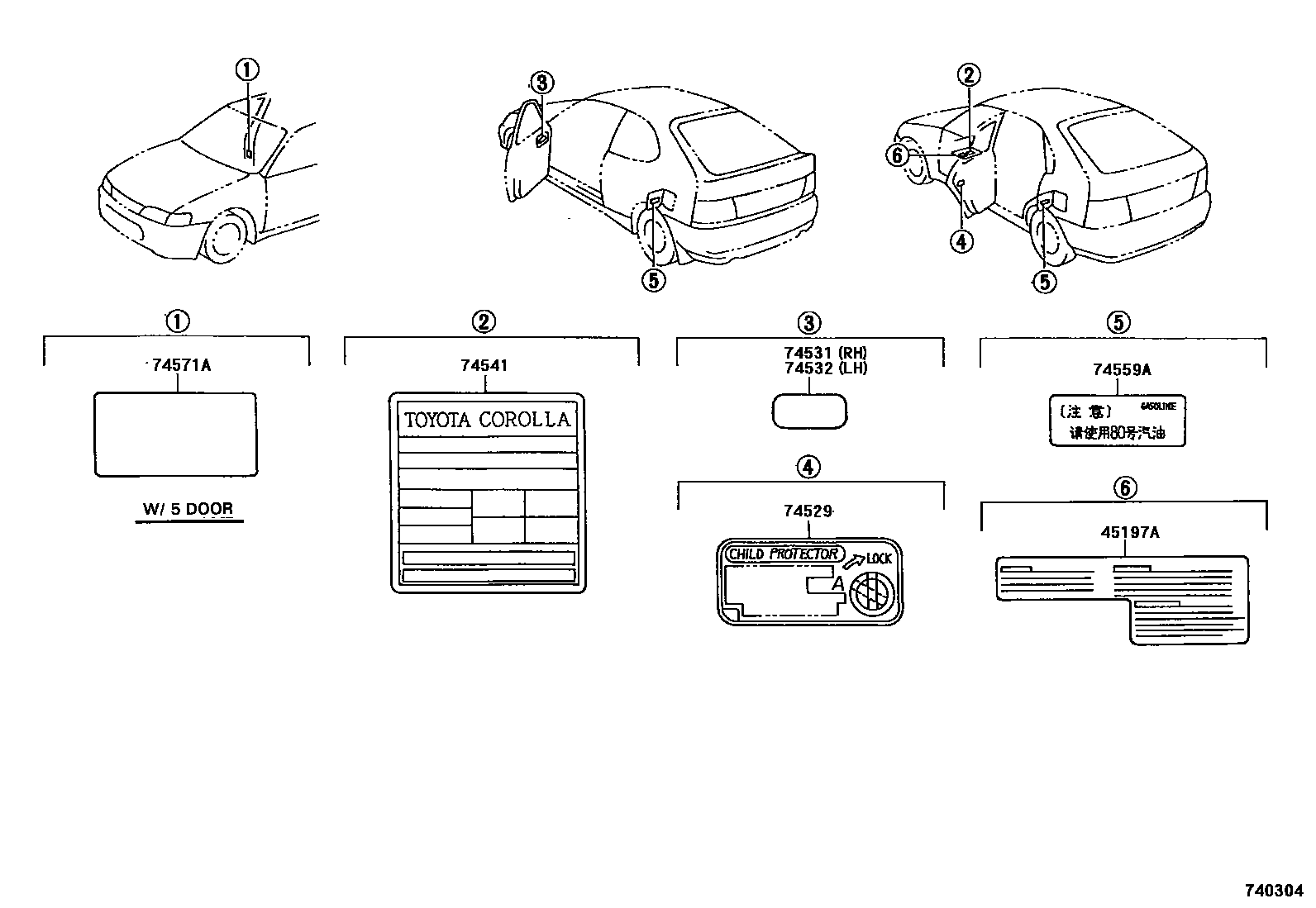

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

45197ALABEL, AIRBAG CAUTION

main45197-12070iAE10#,EE100..RHD..(GLI,XL,XLI)..GEN199505

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-32010iAE10#,EE100..5D199205

RH

main69349-32010iAE10#,EE100..5D199205

LH

74531PLATE, DOOR INSIDE HANDLE CAUTION, RH

main74531-12010iEE100..STD199205-199505

74532PLATE, DOOR INSIDE HANDLE CAUTION, LH

main74531-12010iEE100..STD199205-199505

74541PLATE, TIRE PRESSURE CAUTION

main42661-1A540iAE101,EE100..GCC199207-199704

main42661-1A690iAE102..ARL199402-199605

74559APLATE, FUEL CAUTION

main74559-14050iAE101..GLI,XLI199505

NEW ZEALAND SPEC

main74559-14050iAE102199402

main74559-16010iEE100..LHD..GEN199205-199301

CHINESE SPEC

main74559-28010iEE100..LHD..GEN199301-199704

CHINESE SPEC

main74559-50010iAE101..GLI199205

SINGAPORE SPEC

74571AFILM, LABEL COVER

main74571-32010iAE101,EE100..GCC199207-199704

7 parts on this diagram · 2 diagrams in section
