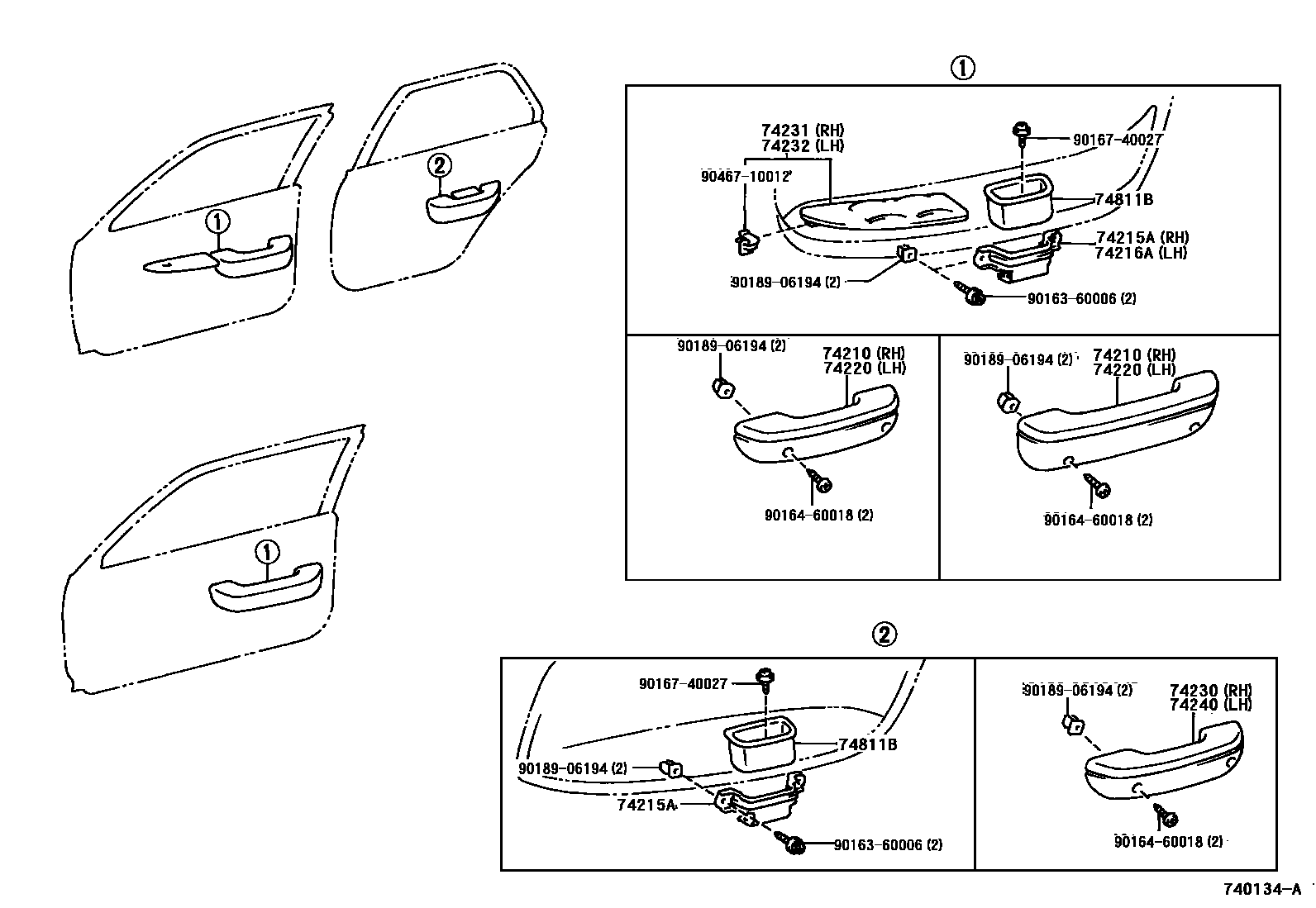

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12220-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main74210-12220-J0iAE101..GLI199505-199710

DARK BLUE,TRIM8#

main74210-16040-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main74210-16040-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main74210-16060-P0iEE100..XL199205-199206

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iEE100..XL199205-199206

DARK BLUE,TRIM8#

sub74210-16061

74215ABASE, DOOR ARMREST RH

main74215-12050×2iAE101,EE100..LB199205-199206

74216ABASE, DOOR ARMREST, LH

main74215-12050×2iAE101,EE100..LB199205-199206

74220ARMREST ASSY, FRONT, LH

main74210-16040-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main74210-16040-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main74210-16060-P0iEE100..XL199205-199206

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iEE100..XL199205-199206

DARK BLUE,TRIM8#

sub74210-16061

main74220-12150-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main74220-12150-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-16060-P0iEE100..XL199205-199206

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iEE100..XL199205-199206

DARK BLUE,TRIM8#

sub74210-16061

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10040-B1iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main74231-10040-J0iAE101..GLI199505-199710

DARK BLUE,TRIM8#

main74231-12130-P0iEE100..3FC;AE10#..LB..RHD199205-199505

SHADOW GRAY,TRIM1#

main74231-12130-W3iEE100..3FC;AE101..LB..RHD199205-199505

DARK BLUE,TRIM8#

main74231-12131-P0iAE102..ARL;AE101..RHD..GL199505-199704

SHADOW GRAY,TRIM1#

main74231-12131-W3iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT(YY**/VJ**)),BLUE,TRIM8#

main74231-12170-B0iAE101,EE100..5D..LHD199205-199704

SHADOW GRAY,TRIM1#

main74231-12170-J0iAE101,EE100..5D..LHD199205-199704

DARK BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10021-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main74232-10021-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main74232-12110-P0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

W(FULL FABRIC SEAT(YY**/VJ**)),SHADOW GRAY,TRIM1#

main74232-12110-W3iEE100..3FC;AE101..LB..RHD199205-199710

DARK BLUE,TRIM8#

main74232-12160-B0iAE101,EE100..5D..LHD199205-199505

SHADOW GRAY,TRIM1#

main74232-12160-J0iAE101,EE100..5D..LHD199205-199505

DARK BLUE,TRIM8#

main74232-12161-B0iAE101,EE100..LHD199505-199704

SHADOW GRAY,TRIM1#

main74232-12161-J0iAE101,EE100..LHD199505-199704

DARK BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-16060-P0iEE100..XL199205-199206

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iAE101..GLI199505-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub74210-16061

74811BHANDLE, DOOR PULL

main74811-12060-P0×4iAE101,EE100..LB199205-199206

SHADOW GRAY,TRIM1#

main74811-12060-W3×4iAE101,EE100..LB199205-199206

DARK BLUE,TRIM8#

9016360006

main90163-60006

9016460018

main90164-60018

9016740027

main90167-40027

9018906194

main90189-06194

9046710012

main90467-10012

14 parts on this diagram · 2 diagrams in section
