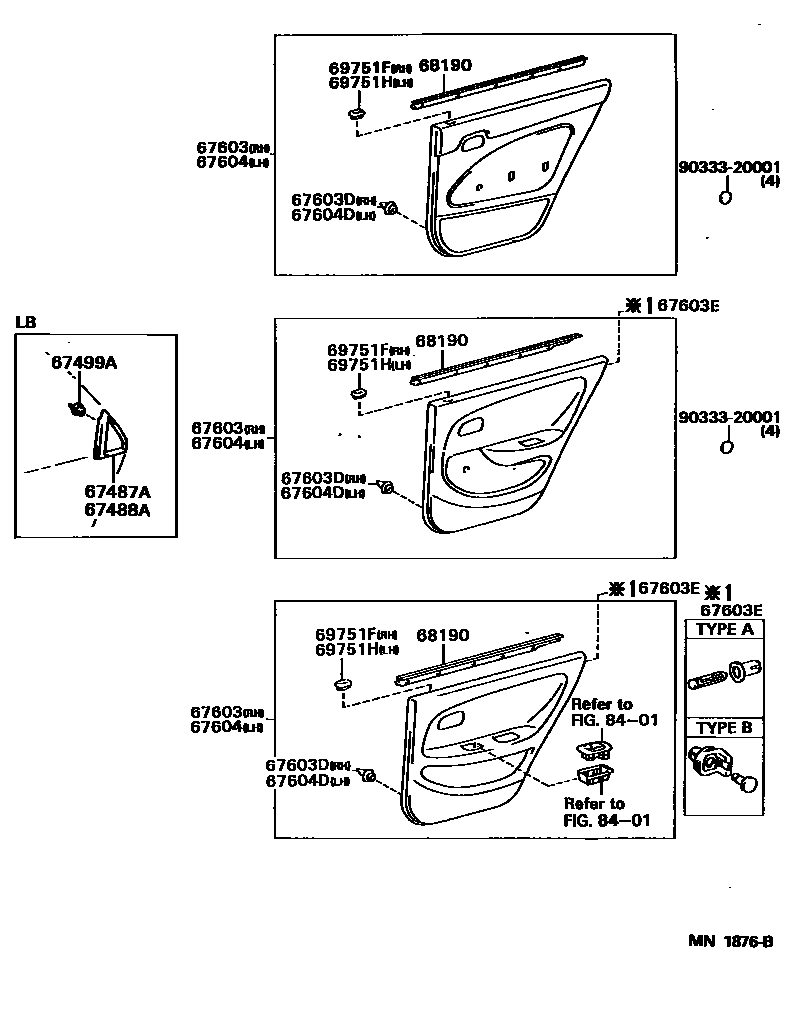

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-12140iAE10#,EE100..LB¥2,030199205

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH

main67771-12050iAE10#,EE100..LB¥160199205

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-13290-B0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-13290-B0iEE100..GCC199207-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-13290-J0iEE100..GCC199207-199505

W(*PW),DARK BLUE,TRIM8#

main67630-13290-J0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#

main67630-13292-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-13292-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#

main67630-13330-B0iAE101,EE100..HB..5D..GEN199206-199710

SHADOW GRAY,TRIM1#

main67630-13330-J0iAE101,EE100..HB..5D..GEN199206-199710

DARK BLUE,TRIM8#

main67630-13370-B0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67630-13370-B0iEE100..GCC199207-199505

SHADOW GRAY,TRIM1#

main67630-13370-J0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67630-13370-J0iEE100..GCC199207-199505

DARK BLUE,TRIM8#

main67630-13371-B1iEE100..GCC199505-199704

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67630-13371-B1iEE100..GCC199505-199704

SHADOW GRAY,TRIM1#

main67630-13371-B1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67630-13371-J1iEE100..GCC199505-199704

BLUE/GRAY,TRIM8#

main67630-13371-J1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67630-13371-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67630-1E320-B0iAE101..GCC199207-199704

SHADOW GRAY,TRIM1#

main67630-1E320-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

main67630-1E400-B0iAE101..GCC199207-199704

W(*PW),SHADOW GRAY,TRIM1#

main67630-1E400-J0iAE101..GCC199207-199704

W(*PW),DARK BLUE,TRIM8#

main67630-1E650-B0iAE101..LB199205-199505

SHADOW GRAY,TRIM1#

main67630-1E650-J0iAE101..LB199205-199505

DARK BLUE,TRIM8#

main67630-1E660-B0iAE101..LB199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E660-J0iAE101..LB199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1E670-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

main67630-1E680-B0iAE102..ARL199402-199605

W(*PW),SHADOW GRAY,TRIM1#

main67630-1E690-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67630-1E690-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67630-1E860-B0iEE100..LB199205-199605

SHADOW GRAY,TRIM1#

main67630-1E860-J0iEE100..LB199205-199605

DARK BLUE,TRIM8#

main67630-1E870-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67630-1E870-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67630-1H251-B1iEE100..HB..LHD..GEN199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H251-B1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-1H251-J1iEE100..HB..LHD..GEN199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67630-1H251-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),BLUE / GRAY,TRIM8#

main67630-1H420-B0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#

main67630-1H420-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main67630-1H420-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#

main67630-1H420-J0iAE101..GLI199505-199710

DARK BLUE,TRIM8#

main67630-1H430-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67630-1H430-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67630-1H440-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67630-1H440-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67630-1H450-B0iAE101..LB199505

SHADOW GRAY,TRIM1#

main67630-1H450-J0iAE101..LB199505

DARK BLUE,TRIM8#

main67630-1H460-B0iAE101..LB199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1H460-J0iAE101..LB199505

W(*PW & *EL),DARK BLUE,TRIM8#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12030iAE101,EE100..XL,XLI¥190199605-199710

YELLOWISH GREEN

main67771-12050iAE101,EE100..HB..5D..RHD..(4FC,5F)¥160199401-199710

NEW ZEALAND SPEC

main67771-12050iEE100..3FC;EE100..HB..LHD..XL¥160199401-199704

main67771-12070iAE102,EE100..LB..GEN¥170199205-199710

main67771-12070iAE101..GLI¥170199505-199710

NEW ZEALAND SPEC

main67771-13030iAE101,EE100..HB..(XL,XLI)¥350199505-199710

BROWN

main67771-16080iEE100..HB..LHD..XL¥160199206-199704

NATURAL

main67771-16160iAE101,EE100..HB..(XL,XLI)¥160199505-199710

ORANGE

main67771-16170iAE101,EE100..HB..(XL,XLI)¥160199505-199710

SABLE,PLANT A31,A32

main67771-16170iAE101,EE100..HB..RHD¥160199505-199710

SABLE

main67771-28020iEE100..LB¥220199205-199710

W(*PW)

main67771-28020iAE101..LB;AE102..ARL¥220199205-199401

main67771-28020iAE101,EE100..HB..5D..RHD..(4FC,5F)¥220199206-199401

NEW ZEALAND SPEC

main90467-08179iAE101..GCC¥150199207-199704

main90467-08179iAE101,EE100..HB..(XL,XLI)¥150199505-199605

YELLOW

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-03iAE101,EE100..5D199205-199309

SHADOW GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-J0iAE101,EE100..LB199205-199710

DARK BLUE,TRIM8#

sub90467-07066¥120

main90467-07066-P0iAE102..ARL;AE101,EE100..5D199309-199710

SHADOW GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-P0iAE101,EE100..5D199309-199704

SHADOW GRAY,TYPE A

sub90467-07066¥120

main90467-09141iAE102..ARL;AE101,EE100..5D¥260199205-199710

TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-13290-B0iEE100..GCC199207-199505

W(*PW),SHADOW GRAY,TRIM1#

main67640-13290-B0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-13290-J0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#

main67640-13290-J0iEE100..GCC199207-199505

W(*PW),DARK BLUE,TRIM8#

main67640-13292-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-13292-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#

main67640-13330-B0iAE101,EE100..HB..5D..GEN199206-199710

SHADOW GRAY,TRIM1#

main67640-13330-J0iAE101,EE100..HB..5D..GEN199206-199710

DARK BLUE,TRIM8#

main67640-13370-B0iEE100..GCC199207-199505

SHADOW GRAY,TRIM1#

main67640-13370-B0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67640-13370-J0iEE100..GCC199207-199505

DARK BLUE,TRIM8#

main67640-13370-J0iAE101,EE100..HB..5D..GEN199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67640-13371-B1iAE101,EE100..HB..GEN199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67640-13371-B1iEE100..GCC199505-199704

SHADOW GRAY,TRIM1#

main67640-13371-J1iAE101,EE100..HB..GEN199505-199710

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67640-13371-J1iEE100..GCC199505-199704

BLUE/GRAY,TRIM8#

main67640-1E320-B0iAE101..GCC199207-199704

SHADOW GRAY,TRIM1#

main67640-1E320-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

main67640-1E400-B0iAE101..GCC199207-199704

W(*PW),SHADOW GRAY,TRIM1#

main67640-1E400-J0iAE101..GCC199207-199704

W(*PW),DARK BLUE,TRIM8#

main67640-1E650-B0iAE101..LB199205-199505

SHADOW GRAY,TRIM1#

main67640-1E650-J0iAE101..LB199205-199505

DARK BLUE,TRIM8#

main67640-1E660-B0iAE101..LB199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E660-J0iAE101..LB199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1E670-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

main67640-1E680-B0iAE102..ARL199402-199605

W(*PW),SHADOW GRAY,TRIM1#

main67640-1E690-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67640-1E690-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67640-1E860-B0iEE100..LB199205-199605

SHADOW GRAY,TRIM1#

main67640-1E860-J0iEE100..LB199205-199605

DARK BLUE,TRIM8#

main67640-1E870-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67640-1E870-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67640-1H251-B1iEE100..HB..LHD..GEN199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67640-1H251-B1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-1H251-J1iEE100..HB..LHD..GEN199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67640-1H251-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),BLUE / GRAY,TRIM8#

main67640-1H420-B0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#

main67640-1H420-B0iAE102..GEN199505-199710

SHADOW GRAY,TRIM1#

main67640-1H420-J0iAE102..GEN199505-199710

NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#

main67640-1H420-J0iAE102..GEN199505-199710

DARK BLUE,TRIM8#

main67640-1H430-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67640-1H430-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67640-1H440-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67640-1H440-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67640-1H450-B0iAE101..LB199505

SHADOW GRAY,TRIM1#

main67640-1H450-J0iAE101..LB199505

DARK BLUE,TRIM8#

main67640-1H460-B0iAE101..LB199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1H460-J0iAE101..LB199505

W(*PW & *EL),DARK BLUE,TRIM8#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12030iAE101,EE100..XL,XLI¥190199605-199710

YELLOW GREEN

main67771-12050iAE101,EE100..HB..5D..RHD..(4FC,5F)¥160199401-199710

NEW ZEALAND SPEC

main67771-12050iEE100..3FC;AE101,EE100..HB..5D..LHD¥160199401-199704

main67771-12070iAE101..GCC¥170199207-199401

WHITE

main67771-12070iAE102,EE100..LB..GEN¥170199205-199710

main67771-12070iAE101..GLI¥170199505-199710

NEW ZEALAND SPEC

main67771-13030iAE101,EE100..HB..(XL,XLI)¥350199505-199710

SABLE,PLANT K21

main67771-16080iEE100..HB..LHD..XL¥160199206-199704

NATURAL

main67771-16160iAE101,EE100..HB..(XL,XLI)¥160199505-199710

ORANGE

main67771-16170iAE101..GCC¥160199401-199505

SABLE

main67771-16170iAE101,EE100..HB¥160199505-199710

SABLE,PLANT A31,A32

main67771-28020iEE100..3FC;AE101..GL,GLI,SI;EE100..HB..LHD..XL¥220199205-199401

main67771-28020iAE101,EE100..HB..5D..RHD..(4FC,5F)¥220199206-199401

NEW ZEALAND SPEC

main67771-28020iEE100..LB¥220199205-199710

W(*PW)

main90467-08179iAE101..GCC¥150199207-199704

YELLOW

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12050iAE101,EE100..HB..5D¥3,100199206-199710

main68173-12190iAE10#,EE100..LB¥3,090199205

RH

main68174-12030iAE10#,EE100..LB¥3,090199205

LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12050-B0iEE100..3FC;EE100..LHD..XL;AE10#..GL,GLI,SI199205-199710

SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-J0iEE100..3FC;EE100..LHD..XL;AE10#..(GL,GLI,SI)..(GCC,GEN)199205-199710

DARK BLUE,TRIM8#

sub69751-12050¥370

main69751-12050-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub69751-12050¥370

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-12050-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-B0iEE100..3FC;EE100..LHD..XL;AE10#..GL,GLI,SI199205-199710

SHADOW GRAY,TRIM1#

sub69751-12050¥370

main69751-12050-J0iEE100..3FC;EE100..LHD..XL;AE10#..(GL,GLI,SI)..(GCC,GEN)199205-199710

DARK BLUE,TRIM8#

sub69751-12050¥370

main69751-12050-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub69751-12050¥370

8401

9033320001

main90333-20001¥70

13 parts on this diagram · 3 diagrams in section
