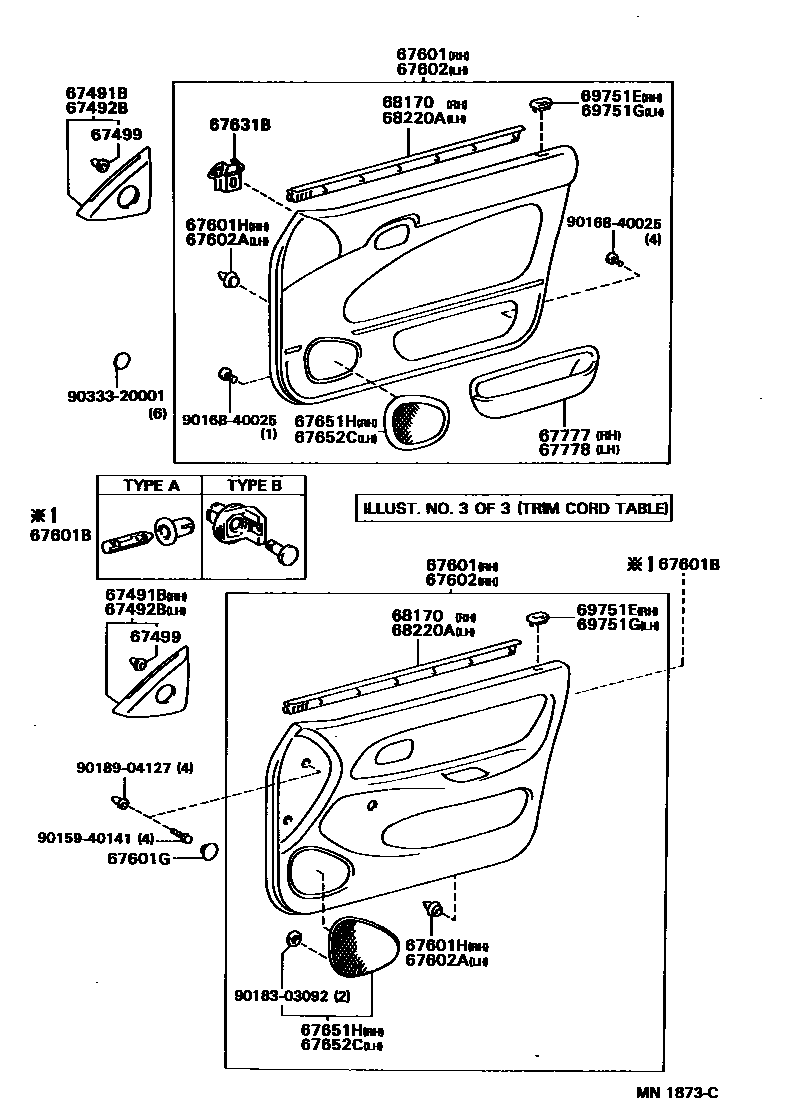

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH

main67491-12231iAE101..GCC199207-199704

W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)

main67491-12231iAE101,EE100..HB..5D..GEN199206-199710

main67491-12241iAE101,EE100..GCC199207-199704

main67491-12241iAE101,EE100..HB..5D..GEN199206-199710

W(DOOR MIRROR)

main67491-12261iAE101..LB199205

W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)

main67491-12261iAE102,EE100..LB199205-199710

main67491-12310iEE100..STD199205-199505

main67491-12320iEE100..STD199205-199505

W(DOOR MIRROR)

main67491-12350iAE101..LB199205

main67491-12350iEE100..LB199205-199605

W(DOOR MIRROR)

67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH

main67492-12231iAE101,EE100..HB..5D..GEN199206-199710

main67492-12231iAE101..GCC199207-199704

W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)

main67492-12241iAE101,EE100..HB..5D..GEN199206-199710

W(DOOR MIRROR)

main67492-12241iAE101,EE100..GCC199207-199704

main67492-12261iAE102,EE100..LB199205-199710

main67492-12261iAE101..LB199205

W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)

main67492-12270iEE100..STD199205-199505

main67492-12310iEE100..STD199205-199505

W(DOOR MIRROR)

main67492-12340iAE101..LB199205

main67492-12340iEE100..LB199205-199605

W(DOOR MIRROR)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iAE10#,EE100199205

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1H020-B0iAE101..GCC199207-199704

SHADOW GRAY,TRIM1#

sub67610-1H030

main67610-1H020-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

sub67610-1H030

main67610-1H030-B0iAE101..GCC199207-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

main67610-1H030-J0iAE101..GCC199207-199704

W(SPEAKER),DARK BLUE,TRIM8#

main67610-1H040-B0iAE101..GCC199207-199704

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1H040-J0iAE101..GCC199207-199704

W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8#

main67610-1H110-B0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67650-1E270

main67610-1H110-B0iEE100..GCC199207-199505

SHADOW GRAY,TRIM1#

sub67650-1E270

main67610-1H110-J0iEE100..GCC199207-199505

DARK BLUE,TRIM8#

sub67650-1E270

main67610-1H110-J0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67650-1E270

main67610-1H111-B1iEE100..GCC199505-199704

SHADOW GRAY,TRIM1#

main67610-1H111-B1iEE100..GCC199505-199704

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67610-1H111-J1iEE100..GCC199505-199704

BLUE/GRAY,TRIM8#

main67610-1H111-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67610-1H150-B0iAE101..LB199205-199505

SHADOW GRAY,TRIM1#

main67610-1H150-J0iAE101..LB199205-199505

DARK BLUE,TRIM8#

main67610-1H170-B0iAE101..LHD..GEN199205-199505

W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67610-1H170-J0iAE101..LHD..GEN199205-199505

W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67610-1H180-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

main67610-1H191-B0iAE102199402-199505

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1H192-B0iAE102..ARL199505-199605

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-1H220-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67610-1H220-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67610-1H230-B0iAE101..LB..RHD199205-199305

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67610-1H231

main67610-1H230-J0iAE101..LB..RHD199205-199305

W(*PW & *EL),DARK BLUE,TRIM8#

sub67610-1H231

main67610-1H231-B0iAE101..LB..RHD199305-199505

W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67610-1H231-J0iAE101..LB..RHD199305-199505

W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67610-1H330-B0iEE100..GCC199207-199505

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67650-1E200

main67610-1H330-B0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

sub67650-1E200

main67610-1H330-J0iEE100..GCC199207-199505

W(SPEAKER),DARK BLUE,TRIM8#

sub67650-1E200

main67610-1H330-J0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

sub67650-1E200

main67610-1H331-B1iEE100..GCC199505-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

main67610-1H331-B1iEE100..GCC199505-199704

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67610-1H331-J1iEE100..HB..LHD..GEN199505-199704

W(SPEAKER),BLUE/GRAY,TRIM8#

main67610-1H331-J1iEE100..GCC199505-199704

W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#

main67610-1H430-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67650-1E360

main67610-1H430-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67650-1E360

main67610-1H440-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

sub67650-1E520

main67610-1H440-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

sub67650-1E520

main67650-1E110-B0iAE101,EE100..HB..5D..RHD199206-199305

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67650-1E111

main67650-1E110-J0iAE101,EE100..HB..5D..RHD199206-199305

W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67650-1E111

main67650-1E111-B0iAE101,EE100..HB..5D..RHD199305-199505

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E111-J0iAE101,EE100..HB..5D..RHD199305-199505

W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#

main67650-1E112-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E112-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#

main67650-1E140-B0iEE100..GCC199207-199505

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E140-B0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E140-J0iEE100..GCC199207-199505

W(POWER WINDOW),DARK BLUE,TRIM8#

main67650-1E140-J0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#

main67650-1E141-B1iEE100..GCC199505-199704

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E141-B1iEE100..GCC199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#

main67650-1E141-J1iEE100..GCC199505-199704

W(POWER WINDOW),BLUE/GRAY,TRIM8#

main67650-1E141-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#

main67650-1E200-B0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67650-1E200-J0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67650-1E201-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67650-1E201-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#

main67650-1E250-B0iAE101,EE100..HB..5D..RHD199206-199710

W(SPEAKER),SHADOW GRAY,TRIM1#

main67650-1E250-J0iAE101,EE100..HB..5D..RHD199206-199710

W(SPEAKER),DARK BLUE,TRIM8#

main67650-1E260-B0iEE100..HB..LHD..XL..GEN199206-199704

SHADOW GRAY,TRIM1#

sub67650-1E510

main67650-1E260-J0iEE100..HB..LHD..XL..GEN199206-199704

DARK BLUE,TRIM8#

sub67650-1E510

main67650-1E270-B0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67650-1E200

main67650-1E270-J0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67650-1E200

main67650-1E271-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67650-1E271-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67650-1E410-B0iEE100..LB199205-199306

SHADOW GRAY,TRIM1#

main67650-1E410-J0iEE100..LB199205-199306

DARK BLUE,TRIM8#

main67650-1E510-B0iAE101,EE100..HB..5D..RHD199206-199710

SHADOW GRAY,TRIM1#

sub67650-1E250

main67650-1E510-J0iAE101,EE100..HB..5D..RHD199206-199710

DARK BLUE,TRIM8#

sub67650-1E250

main67650-1E550-B0iEE100..HB..LHD..XL..GEN199206-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67610-1H870

sub67650-1E250

main67650-1E550-J0iEE100..HB..LHD..XL..GEN199206-199704

W(SPEAKER),DARK BLUE,TRIM8#

sub67610-1H870

sub67650-1E250

main67650-1E560-B0iEE100..LB199205-199306

W(SPEAKER),SHADOW GRAY,TRIM1#

main67650-1E560-J0iEE100..LB199205-199305

W(SPEAKER),DARK BLUE,TRIM8#

main67650-1E850-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

sub67650-1E860

main67650-1E850-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

sub67650-1E860

main67650-1E860-B0iEE100..STD199205-199505

W(SPEAKER),SHADOW GRAY,TRIM1#

main67650-1E860-J0iEE100..STD199205-199505

W(SPEAKER),DARK BLUE,TRIM8#

main67650-1H070-B0iEE100..LB199306-199605

SHADOW GRAY,TRIM1#

sub67650-1E410

main67650-1H070-J0iEE100..LB199306-199605

DARK BLUE,TRIM8#

sub67650-1E410

main67650-1H080-B0iEE100..LB199306-199605

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67650-1E560

main67650-1H080-J0iEE100..LB199306-199605

W(SPEAKER),DARK BLUE,TRIM8#

sub67650-1E560

main67650-1H200-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main67650-1H200-B0iAE102..GEN199505-199710

NEW ZEALAND SPEC & W(*PW & *EL & SPEAKER),SHADOW GRAY,TRIM1#

main67650-1H200-J0iAE102..GEN199505-199710

DARK BLUE,TRIM8#

main67650-1H200-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL & SPEAKER),DARK BLUE,TRIM8#

main67650-1H210-B0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67650-1H200

main67650-1H210-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL),DARK BLUE,TRIM8#

sub67650-1H200

main67650-1H220-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67650-1H230

main67650-1H220-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67650-1H230

main67650-1H230-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67650-1H230-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67650-1H240-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67650-1H240-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67650-1H250-B0iAE101..LB..RHD199505-199710

SHADOW GRAY,TRIM1#

main67650-1H250-J0iAE101..LB..RHD199505-199710

DARK BLUE,TRIM8#

main67650-1H260-B0iAE101..LHD..GEN199505-199605

SHADOW GRAY,TRIM1#

sub67650-1H250

main67650-1H260-J0iAE101..LHD..GEN199505-199605

DARK BLUE,TRIM8#

sub67650-1H250

main67650-1H270-B0iAE101..LB..RHD199505-199710

W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67650-1H270-J0iAE101..LB..RHD199505-199710

W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

main67650-1H280-B0iAE101..LHD..GEN199505-199605

W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main67650-1H280-J0iAE101..LHD..GEN199505-199605

W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-03iAE101,EE100..5D199205-199309

SHADOW GRAY,TRIM1#

sub90467-07066

main90467-07066-J0iAE101,EE100..5D199205-199710

DARK BLUE,TRIM8#

sub90467-07066

main90467-07066-P0iEE100..LB;AE101..GCC199309-199704

SHADOW GRAY,TYPE A

sub90467-07066

main90467-07066-P0iAE102..ARL;AE101,EE100..5D199309-199710

SHADOW GRAY,TRIM1#

sub90467-07066

main90467-09141iAE102..ARL;AE101,EE100..5D199205-199710

TYPE B

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B0iAE102..ARL;AE101,EE100..5D199205-199710

SHADOW GRAY,TRIM1#

sub90950-01800

main90950-01800-J0iAE101,EE100..5D199205-199710

DARK BLUE,TRIM8#

sub90950-01800

67601HRETAINER, DOOR TRIM, RH

main67771-12030iAE101,EE100..HB..5D199310-199710

YELLOWISH GREEN

main67771-12050iAE101,EE100..HB..5D199401-199710

main67771-12070iEE100..STD199205-199710

WHITE

main67771-13030iAE101,EE100..HB..(4FC,5F)..(XL,XLI)199401-199710

BROWN

main67771-13030iAE101..HB;EE100..HB..GEN199401-199710

SABLE,PLANT K21

main67771-16160iEE100..LB199205-199710

ORANGE

main67771-16170iAE101,EE100..HB..GEN199401-199710

SABLE,PLANT A31,A32

main67771-16170iAE101,EE100..(4F,4FC,5F)..(STD,XL,XLI)199205-199710

SABLE

main67771-16170iAE101..GCC199401-199704

SABLE,PLANT A31,A31

main67771-28020iAE101,EE100..SI,XL,XLI199205-199605

main67771-28020iEE100..HB..LHD..XL199206-199306

RED

main90467-08179iAE10#,EE100..(GLI,SI,XL,XLI)..(GCC,GEN)199205-199710

YELLOW

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-1K190-B0iAE101,EE100..HB..5D..RHD199206-199505

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1K190-J0iAE101,EE100..HB..5D..RHD199206-199505

W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67620-1K191-B1iAE101,EE100..HB..RHD199505-199710

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1K191-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#

main67620-1K290-B0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

sub67620-1L360

main67620-1K290-J0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

sub67620-1L360

main67620-1K291-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1K291-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#

main67620-1K340-B0iAE101,EE100..HB..5D..RHD199206-199710

SHADOW GRAY,TRIM1#

sub67620-1K340

sub67620-1L090

main67620-1K340-J0iAE101,EE100..HB..5D..RHD199206-199710

DARK BLUE,TRIM8#

sub67620-1K340

sub67620-1L090

main67620-1K350-B0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67660-12010

main67620-1K350-J0iAE101,EE100..HB..5D..RHD199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67660-12010

main67620-1K351-B1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67620-1K291

main67620-1K351-J1iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

sub67620-1K291

main67620-1K630-B0iAE101,EE100..HB..5D..RHD199206-199304

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67620-1L810

main67620-1K630-J0iAE101,EE100..HB..5D..RHD199206-199304

W(SPEAKER),DARK BLUE,TRIM8#

sub67620-1L810

main67620-1K780-B0iEE100..STD199205-199304

SHADOW GRAY,TRIM1#

sub67620-1L820

main67620-1K780-J0iEE100..STD199205-199304

DARK BLUE,TRIM8#

sub67620-1L820

main67620-1K790-B0iEE100..STD199205-199304

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67620-1L830

main67620-1K790-J0iEE100..STD199205-199304

W(SPEAKER),DARK BLUE,TRIM8#

sub67620-1L830

main67620-1K840-B0iAE101..GCC199207-199704

SHADOW GRAY,TRIM1#

sub67620-1K850

main67620-1K840-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

sub67620-1K850

main67620-1K850-B0iAE101..GCC199207-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1K850-J0iAE101..GCC199207-199704

W(SPEAKER),DARK BLUE,TRIM8#

main67620-1K860-B0iAE101..GCC199207-199305

W(*PW),SHADOW GRAY,TRIM1#

sub67620-1K861

main67620-1K860-J0iAE101..GCC199207-199305

W(*PW),DARK BLUE,TRIM8#

sub67620-1K861

main67620-1K861-B0iAE101..GCC199305-199508

W(*PW),SHADOW GRAY,TRIM1#

main67620-1K861-J0iAE101..GCC199305-199508

W(*PW),DARK BLUE,TRIM8#

main67620-1K862-B0iAE101..GCC199508-199704

W(*PW),SHADOW GRAY,TRIM1#

main67620-1K862-J0iAE101..GCC199508-199704

W(*PW),DARK BLUE,TRIM8#

main67620-1L090-B0iEE100..HB..LHD..XL..GEN199206-199704

SHADOW GRAY,TRIM1#

main67620-1L090-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67620-1L090-J0iEE100..HB..LHD..XL..GEN199206-199704

DARK BLUE,TRIM8#

main67620-1L090-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67620-1L160-B0iAE101..LB199205-199505

SHADOW GRAY,TRIM1#

main67620-1L160-J0iAE101..LB199205-199505

DARK BLUE,TRIM8#

main67620-1L170-B0iAE101..LB..RHD199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67620-1L170-J0iAE101..LB..RHD199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67620-1L190-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

main67620-1L200-B0iAE102..ARL199402-199605

W(*PW),SHADOW GRAY,TRIM1#

main67620-1L220-B0iEE100..LB199205-199305

W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67620-1L221

main67620-1L220-J0iEE100..LB199205-199305

W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67620-1L221

main67620-1L221-B0iEE100..LB199305-199505

W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1L221-J0iEE100..LB199305-199505

W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67620-1L290-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC & W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L290-B0iEE100..HB..LHD..XL..GEN199206-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L290-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC & W(SPEAKER),DARK BLUE,TRIM8#

main67620-1L290-J0iEE100..HB..LHD..XL..GEN199206-199704

W(SPEAKER),DARK BLUE,TRIM8#

main67620-1L360-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L360-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L360-B0iEE100..GCC199207-199505

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L360-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67620-1L360-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67620-1L360-J0iEE100..GCC199207-199505

W(SPEAKER),DARK BLUE,TRIM8#

main67620-1L361-B1iEE100..HB..LHD..GEN199505-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L361-B1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L361-J1iEE100..HB..LHD..GEN199505-199704

W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#

main67620-1L361-J1iEE100..GCC199505-199704

W(SPEAKER),BLUE/GRAY,TRIM8#

main67620-1L410-B0iEE100..LB199205-199605

SHADOW GRAY,TRIM1#

sub67620-1L420

main67620-1L410-J0iEE100..LB199205-199605

DARK BLUE,TRIM8#

sub67620-1L420

main67620-1L420-B0iEE100..LB199205-199605

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L420-J0iEE100..LB199205-199605

W(SPEAKER),DARK BLUE,TRIM8#

main67620-1L430-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1L430-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67620-1L440-B0iEE100..LB199205-199505

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L440-J0iEE100..LB199205-199505

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67620-1L450-B0iAE101..LHD..GEN199205-199305

W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67620-1L451

main67620-1L450-J0iAE101..LHD..GEN199205-199305

W(*PW & *EL),DARK BLUE,TRIM8#

sub67620-1L451

main67620-1L451-B0iAE101..LHD..GEN199305-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67620-1L451-J0iAE101..LHD..GEN199305-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67620-1L620-B0iEE100..HB..LHD..XL..GEN199206-199305

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67620-1L621

main67620-1L620-B0iEE100..GCC199207-199305

W(*PW),SHADOW GRAY,TRIM1#

sub67620-1L621

main67620-1L620-J0iEE100..HB..LHD..XL..GEN199206-199305

W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67620-1L621

main67620-1L620-J0iEE100..GCC199207-199305

W(*PW),DARK BLUE,TRIM8#

sub67620-1L621

main67620-1L621-B0iEE100..GCC199305-199505

W(*PW),SHADOW GRAY,TRIM1#

main67620-1L621-B0iEE100..GCC199305-199505

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1L621-J0iEE100..GCC199305-199505

W(*PW),DARK BLUE,TRIM8#

main67620-1L621-J0iEE100..HB..LHD..XL..GEN199305-199505

W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67620-1L622-B1iEE100..GCC199505-199704

W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1L622-B1iEE100..HB..LHD..GEN199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67620-1L622-J1iEE100..GCC199505-199704

W(*PW & FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67620-1L622-J1iEE100..GCC199505-199704

W(*PW),BLUE/GRAY,TRIM8#

main67620-1L740-B0iAE101..LB199302-199306

SHADOW GRAY,TRIM1#

sub67620-1L160

main67620-1L740-J0iAE101..LB199302-199306

DARK BLUE,TRIM8#

sub67620-1L160

main67620-1L810-B0iAE101,EE100..HB..5D..RHD199304-199710

W(SPEAKER),SHADOW GRAY,TRIM1#

sub67650-1E250

main67620-1L810-J0iAE101,EE100..HB..5D..RHD199304-199710

W(SPEAKER),DARK BLUE,TRIM8#

sub67650-1E250

main67620-1L820-B0iEE100..STD199304-199505

SHADOW GRAY,TRIM1#

sub67620-1L830

main67620-1L820-J0iEE100..STD199304-199505

DARK BLUE,TRIM8#

sub67620-1L830

main67620-1L830-B0iEE100..STD199304-199505

W(SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L830-J0iEE100..STD199304-199505

W(SPEAKER),DARK BLUE,TRIM8#

main67620-1L881-B1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1L881-J1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

main67620-1L891-B1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1L891-J1iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#

main67620-1N310-B0iAE102..GEN199505-199710

NEW ZEALAND SPEC & W(*PW & *EL & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1N310-B0iAE101..GLI199505-199710

SHADOW GRAY,TRIM1#

main67620-1N310-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL & SPEAKER),DARK BLUE,TRIM8#

main67620-1N310-J0iAE102..GEN199505-199710

DARK BLUE,TRIM8#

main67620-1N320-B0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67620-1N310

main67620-1N320-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(*PW & *EL),DARK BLUE,TRIM8#

sub67620-1N310

main67620-1N330-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67620-1N340

main67620-1N330-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

sub67620-1N340

main67620-1N340-B0iEE100..LB199505-199605

W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#

main67620-1N340-J0iEE100..LB199505-199605

W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#

main67620-1N350-B0iEE100..LB199505-199605

W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67620-1N350-J0iEE100..LB199505-199605

W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67620-1N360-B0iAE101..LB..RHD199505-199710

SHADOW GRAY,TRIM1#

main67620-1N360-J0iAE101..LB..RHD199505-199710

DARK BLUE,TRIM8#

main67620-1N370-B0iAE101..LHD..GEN199505-199605

SHADOW GRAY,TRIM1#

sub67620-1N360

main67620-1N370-J0iAE101..LHD..GEN199505-199605

DARK BLUE,TRIM8#

sub67620-1N360

main67620-1N380-B0iAE101..LB..RHD199505-199710

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67620-1N380-J0iAE101..LB..RHD199505-199710

W(*PW & *EL),DARK BLUE,TRIM8#

main67620-1N390-B0iAE101..LHD..GEN199505-199605

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67620-1N390-J0iAE101..LHD..GEN199505-199605

W(*PW & *EL),DARK BLUE,TRIM8#

main67660-12010-B0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67660-12010-B0iEE100..HB..LHD..XL..GEN199206-199505

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main67660-12010-B0iEE100..GCC199207-199505

SHADOW GRAY,TRIM1#

main67660-12010-J0iEE100..GCC199207-199505

DARK BLUE,TRIM8#

main67660-12010-J0iEE100..HB..LHD..XL..GEN199206-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67660-12010-J0iEE100..HB..LHD..XL..GEN199206-199505

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main67660-12011-B1iEE100..HB..LHD..GEN199505-199704

SHADOW GRAY,TRIM1#

sub67620-1L361

main67660-12011-B1iEE100..GCC199505-199704

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

sub67620-1L361

main67660-12011-J1iEE100..HB..LHD..GEN199505-199704

BLUE/GRAY,TRIM8#

sub67620-1L361

main67660-12011-J1iEE100..GCC199505-199704

W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#

sub67620-1L361

67602ARETAINER, DOOR TRIM, LH

main67771-12030iAE101,EE100..HB..5D199310-199710

YELLOWISH GREEN

main67771-12050iAE101..GLI199505-199710

RED

main67771-12050iAE101..GLI199505-199710

NEW ZEALAND SPEC,RED

main67771-12050iAE101,EE100..HB..5D199401-199710

main67771-12070iAE101,EE100..HB..5D199205-199605

WHITE

main67771-12070iAE101..GLI199505-199710

NEW ZEALAND SPEC,WHITE

main67771-13030iAE101..HB;EE100..HB..GEN199505-199710

BROWN

main67771-13030iAE101,EE100..HB..5D..RHD..(4FC,5F)199401-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),BROWN

main67771-13030iAE101..HB;EE100..HB..GEN199401-199710

SABLE,PLANT K21

main67771-16160iAE101,EE100..HB..5D199205-199710

ORANGE

main67771-16160iAE101,EE100..HB..5D199206-199710

NEW ZEALAND SPEC,ORAMGE

main67771-16170iAE101,EE100..HB199401-199710

SABLE,PLANT A31,A32

main67771-16170iAE101..HB;EE100..HB..GEN199401-199710

SABLE

main67771-28020iEE100..LB199205-199605

main67771-28020iEE100..HB..LHD..XL199205-199306

RED

main90467-08179iAE102..GEN;AE101,EE100..HB199205-199710

YELLOW

main90467-08179iAE101..GLI199505-199710

NEW ZEALAND SPEC,YELLOW

67631BRETAINER, FRONT DOOR TRIM, UPPER

main67631-12040iEE100..STD199205-199505

67651HGRILLE, SPEAKER DOOR, RH

main67651-12020-B0iAE102..GEN;AE101,EE100..SI,XL,XLI199205-199710

SHADOW GRAY,TRIM1#

main67651-12020-B0iAE101..GLI199505-199710

W(*PW),SHADOW GRAY,TRIM1#

main67651-12020-J0iEE100..XL199205-199710

DARK BLUE,TRIM8#

main67651-12020-J0iAE101..GLI199505-199710

W(*PW),DARK BLUE,TRIM8#

main67651-12070-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main67651-12070-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main67651-19015-B0iAE101;EE100..HB;AE102..ARL199205-199710

FOR MOLD TYPE TRIM & W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67651-19015

main67651-19015-J0iAE101,EE100..LB199205-199710

FOR MOLD TYPE TRIM & W(*PW & *EL),DARK BLUE,TRIM8#

sub67651-19015

main67652-19015-B0iAE101..LB..RHD199505-199710

SHADOW GRAY,TRIM1#

sub67652-19015

main67652-19015-J0iAE101..LB..RHD199505-199710

DARK BLUE,TRIM8#

sub67652-19015

67652CGRILLE, SPEAKER DOOR, LH

main67652-12030-B0iAE101..GLI199505-199710

W(*PW),SHADOW GRAY,TRIM1#

sub67652-12030

main67652-12030-B0iEE100..XL199205-199710

SHADOW GRAY,TRIM1#

sub67652-12030

main67652-12030-J0iEE100..XL199205-199710

DARK BLUE,TRIM8#

sub67652-12030

main67652-12030-J0iAE101..GLI199505-199710

W(*PW),DARK BLUE,TRIM8#

sub67652-12030

main67652-12070-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main67652-12070-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main67652-19015-B0iAE101..LB;AE102..ARL199205-199710

SHADOW GRAY,TRIM1#

sub67652-19015

main67652-19015-B0iEE100..LB199205-199505

FOR MOLD TYPE TRIM & W(*PW & *EL),SHADOW GRAY,TRIM1#

sub67652-19015

main67652-19015-B0iAE101,EE100..HB..5D199206-199710

FOR MOLD TYPE TRIM & W(*PW),SHADOW GRAY,TRIM1#

sub67652-19015

main67652-19015-J0iEE100..LB199205-199505

FOR MOLD TYPE TRIM & W(*PW & *EL),DARK BLUE,TRIM8#

sub67652-19015

main67652-19015-J0iAE101..LB199205-199710

DARK BLUE,TRIM8#

sub67652-19015

main67652-19015-J0iAE101,EE100..HB..5D199206-199710

FOR MOLD TYPE TRIM & W(*PW),DARK BLUE,TRIM8#

sub67652-19015

67777POCKET, FRONT DOOR TRIM, RH

main67777-12140-B0iAE101..GLI199505-199710

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67777-12140-B0iAE101..HB;AE102..GEN;EE100..HB..XL..GEN199206-199710

SHADOW GRAY,TRIM1#

main67777-12140-J0iAE101..GLI199505-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67777-12140-J0iAE101..HB;AE102..GEN;EE100..HB..XL..GEN199206-199710

DARK BLUE,TRIM8#

67778POCKET, FRONT DOOR TRIM, LH

main67777-12140-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67777-12140-B0iAE102..GEN;AE101,EE100..LHD..(SI,XL)199205-199710

SHADOW GRAY,TRIM1#

main67777-12140-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199710

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67777-12140-J0iAE102..GEN;AE101,EE100..LHD..(SI,XL)199205-199710

DARK BLUE,TRIM8#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-12160iAE101,EE100..HB..5D199206-199710

main68171-12220iAE101,EE100..LB199205-199402

RH

main68171-12220iAE10#,EE100..LB199402

main68171-12230iEE100..STD199205-199505

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68172-12050iAE101,EE100..HB..5D199206-199710

main68172-12080iAE10#,EE100..LB199205

main68172-12150iEE100..STD199205-199505

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12050-B0iAE10#,EE100..5D199205-199710

SHADOW GRAY,TRIM1#

sub69751-12050

main69751-12050-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1

sub69751-12050

main69751-12050-J0iAE10#,EE100..5D..(GCC,GEN)199205-199710

DARK BLUE,TRIM8#

sub69751-12050

69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12050-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1

sub69751-12050

main69751-12050-B0iAE10#,EE100..5D199205-199710

SHADOW GRAY,TRIM1#

sub69751-12050

main69751-12050-J0iAE101,EE100..LB199205-199710

DARK BLUE,TRIM8#

sub69751-12050

9015940141

main90159-40141

9016840025

main90168-40025

9018303092

main90183-03092

9018904127

main90189-04127

9033320001

main90333-20001

23 parts on this diagram · 5 diagrams in section
