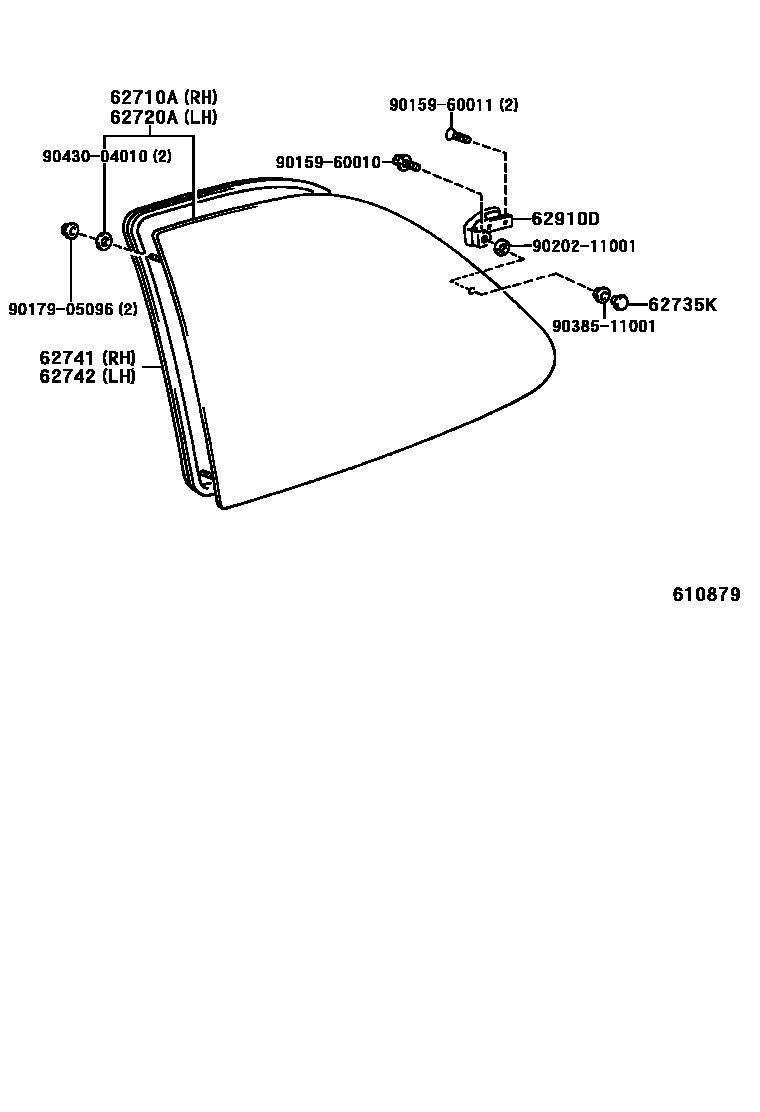

QUARTER WINDOW

0001 1 0002 1 0003 1

62710AWINDOW ASSY, QUARTER, RH

main62710-12750iEE100..STD199205-199505

*TEM,T=3.1,CLEAR

main62710-12770iAE101,EE100..HB..5D199206-199710

*TT,T=3.1,WHITE

main62710-12780iAE101,EE100..HB..5D199206-199710

*TT,T=3.1,BLUE

main62710-12790iAE101,EE100..LB..(GLI,XL)199205-199405

*TEM,T=3.1,CLEAR

main62710-12791iAE101,EE100..LB..(GLI,XL)199405-199710

*TEM,T=3.1,CLEAR

main62710-12800iAE10#,EE100..LB199205-199405

*TT,T=3.1,BLUE

main62710-12801iAE10#,EE100..LB199405-199710

*TT,T=3.1,BLUE

62720AWINDOW ASSY, QUARTER, LH

main62720-12750iEE100..STD199205-199505

*TEM,T=3.1,CLEAR

main62720-12770iAE101,EE100..HB..5D199206-199710

*TT,T=3.1,WHITE

main62720-12780iAE101,EE100..HB..5D199206-199710

*TT,T=3.1,BLUE

main62720-12790iAE101,EE100..LB..(GLI,XL)199205-199405

*TEM,T=3.1,CLEAR

main62720-12791iAE101,EE100..LB..(GLI,XL)199405-199710

*TEM,T=3.1,CLEAR

main62720-12800iAE10#,EE100..LB199205-199405

*TT,T=3.1,BLUE

main62720-12801iAE10#,EE100..LB199405-199710

*TT,T=3.1,BLUE

62735KRETAINER, QUARTER WINDOW HINGE

main62735-10030×2iEE100..STD199205-199505

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12160iEE100..STD199205-199505

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-12160iEE100..STD199205-199505

62910DLOCK ASSY, QUARTER WINDOW

main62910-12100iEE100..STD199205-199505

RH

main62920-12030iEE100..STD199205-199505

LH

9015960010

main90159-60010

9015960011

main90159-60011

9017905096

main90179-05096

9020211001

main90202-11001

9038511001

main90385-11001

9043004010

main90430-04010

12 parts on this diagram · 3 diagrams in section
