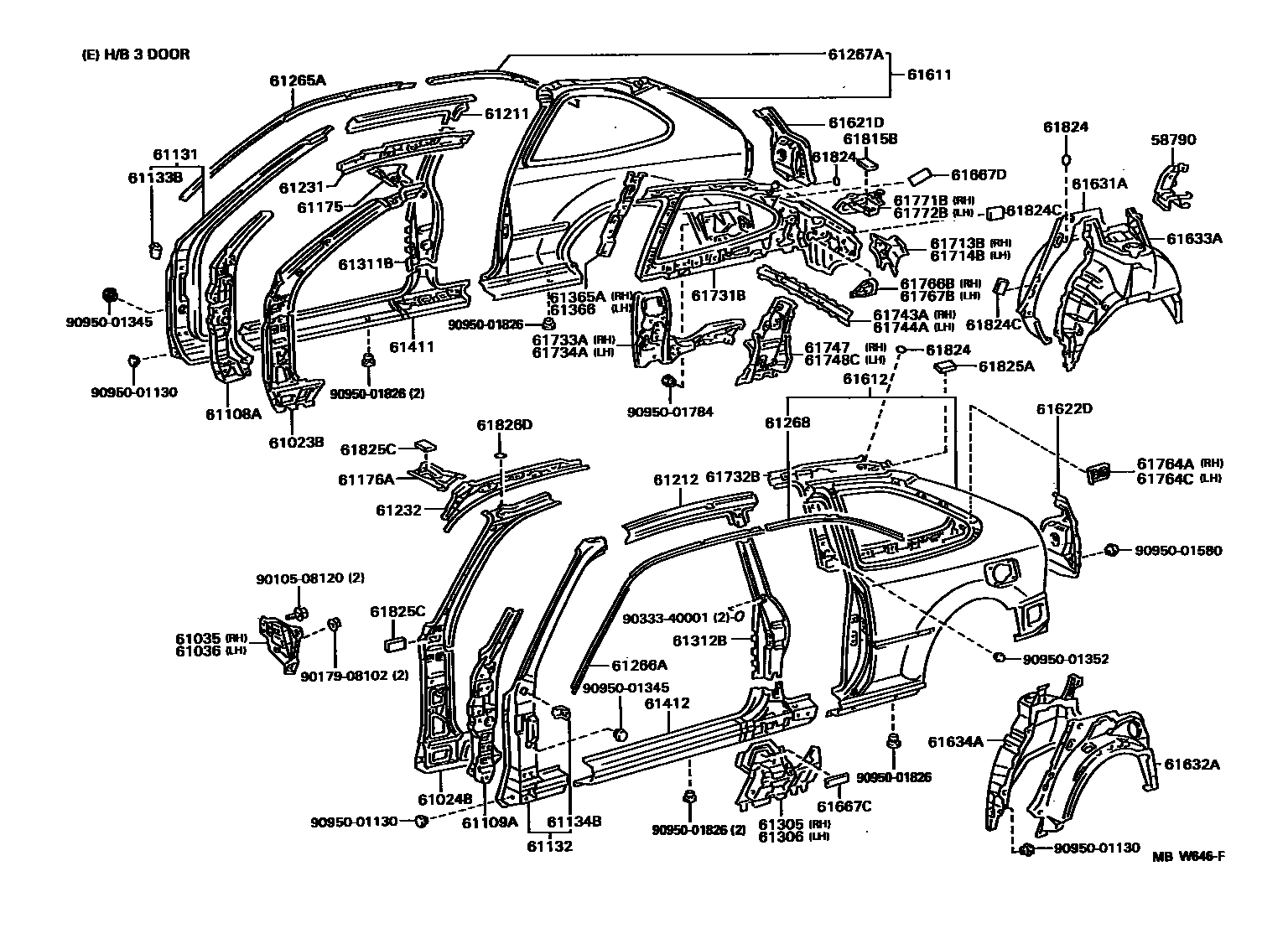

SIDE MEMBER

0001 1 0002 1 0003 1

58790CARRIER ASSY, JACK

main58790-12100iAE101,EE100..HB¥3,280199205

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12050iAE101,EE100..HB..RHD¥21,300199205-199710

main61023-12060iAE101,EE100..HB..LHD¥21,500199205-199704

main61023-12070iAE101,EE100..GCC¥41,300199608-199704

W(*80)

main61023-12110iAE101..LB..RHD¥21,500199205-199402

W(*SNR)

sub61023-12160¥21,200

main61023-12160iAE102..ARL;AE101..LB..RHD¥21,200199205-199402

main61023-12180iAE101,EE100..LB..LHD¥21,500199205-199605

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12050iAE101,EE100..HB..RHD¥21,300199205-199710

main61024-12060iAE101,EE100..HB..LHD¥21,500199205-199704

main61024-12070iAE101,EE100..GCC¥41,300199608-199704

W(*80)

main61024-12110iAE102..ARL;AE101..LB..RHD¥21,200199205-199402

main61024-12170iAE101,EE100..LB..LHD¥21,500199205-199605

main61024-12200iAE101..LB..RHD¥21,500199205-199402

W(*SNR)

sub61024-12110¥21,200

main61024-12210iAE101,EE100..LB..LHD¥21,200199505-199605

W(*SNR)

sub61024-12170¥21,500

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12050iAE101,EE100..LHD¥2,030199505-199704

main61035-12060iAE101,EE100..LHD¥2,020199205-199505

sub61035-12050¥2,030

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12050iAE10#,EE100..RHD¥2,870199205-199505

sub61036-12090¥2,870

main61036-12090iAE10#,EE100..RHD¥2,870199505

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12110iAE101,EE100..HB¥9,200199205-199710

main61108-12120iAE10#,EE100..LB¥9,200199205

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12100iAE101,EE100..HB¥9,200199205-199710

main61109-12110iAE10#,EE100..LB¥9,200199205

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12350iAE101,EE100..HB..5D..RHD¥21,300199206-199710

main61131-12360iAE101,EE100..HB..5D..LHD¥21,300199206-199704

main61131-12370iAE10#,EE100..LB¥21,200199205

main61131-12390iEE100..5F..STD¥21,200199205-199505

main61131-12410iEE100..4F¥21,200199205-199505

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12360iAE101,EE100..HB..5D..RHD¥21,300199206-199710

main61132-12370iAE101,EE100..HB..5D..LHD¥21,300199206-199704

main61132-12380iAE10#,EE100..LB¥21,200199205

main61132-12400iEE100..4F¥21,200199205-199505

main61132-12420iEE100..5F..STD¥21,200199205-199505

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190iAE101,EE100..HB¥410199205-199710

main61133-12240iAE10#,EE100..LB¥390199205

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190iAE101,EE100..HB¥410199205-199710

main61134-12210iAE10#,EE100..LB¥480199205

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12080iAE101,EE100..HB¥1,460199205-199710

main61175-12090iAE10#,EE100..LB¥1,440199205

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12080iAE101,EE100..HB¥1,460199205-199710

main61176-12090iAE10#,EE100..LB¥1,440199205

61211RAIL, ROOF SIDE, OUTER RH

main61211-12290iAE101,EE100..HB..5D¥7,900199206-199710

main61211-12310iAE10#,EE100..LB¥7,800199205

main61211-12330iEE100..STD¥6,200199205-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-12290iAE101,EE100..HB..5D¥7,900199206-199710

main61212-12310iAE10#,EE100..LB199205

main61212-12330iEE100..STD¥6,200199205-199505

61231RAIL, ROOF SIDE, INNER RH

main61231-12500iAE101,EE100..HB..5D¥6,200199206-199710

sub61231-12680¥6,300

main61231-12680iAE101,EE100..HB..5D¥6,300199206-199710

W(*SNR)

main61231-12770iEE100..STD¥4,510199205-199505

main61231-12810iAE10#,EE100..LB¥7,200199205

main61231-12820iAE102..ARL;AE101,EE100..LB¥7,200199205

W(*SNR)

61232RAIL, ROOF SIDE, INNER LH

main61232-12550iAE101,EE100..HB..5D¥6,200199206-199710

sub61232-12590¥6,300

main61232-12590iAE101,EE100..HB..5D¥6,300199206-199710

W(*SNR)

main61232-12650iEE100..STD¥4,510199205-199505

main61232-12690iAE10#,EE100..LB¥7,200199205

main61232-12700iAE102..ARL;AE101,EE100..LB¥7,200199205

W(*SNR)

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12180iAE101,EE100..HB..5D¥2,880199206-199710

main61265-12200iEE100..STD¥2,420199205-199505

main61265-12220iAE10#,EE100..LB¥2,970199205

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12180iAE101,EE100..HB..5D¥2,880199206-199710

main61266-12200iEE100..STD¥2,420199205-199505

main61266-12220iAE10#,EE100..LB¥2,970199205

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12160iEE100..STD¥2,100199205-199505

main61267-12170iAE101,EE100..HB..5D¥1,320199206-199710

main61267-12190iAE10#,EE100..LB¥1,870199205

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12160iEE100..STD¥2,100199205-199505

main61268-12170iAE101,EE100..HB..5D¥1,320199206-199710

main61268-12190iAE10#,EE100..LB¥1,870199205

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-12100iEE100..STD¥4,020199205-199505

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-12100iEE100..STD¥4,020199205-199505

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12190iAE101,EE100..HB..5D¥16,900199206-199710

main61311-12200iAE10#,EE100..LB¥22,400199205

main61311-12220iEE100..STD¥27,500199205-199505

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12230iAE101,EE100..HB..5D¥16,900199206-199710

main61312-12240iAE10#,EE100..LB¥22,400199205

main61312-12260iEE100..STD¥27,500199205-199505

61365AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3

main61365-12160iEE100..STD¥1,650199205-199505

61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH

main61366-12100iEE100..STD¥1,650199205-199505

61411PANEL, ROCKER, OUTER RH

main61411-12530iAE101,EE100..HB..5D¥15,200199206-199710

main61411-12540iAE10#,EE100..LB¥15,400199205

main61411-12560iEE100..STD¥15,400199205-199505

61412PANEL, ROCKER, OUTER LH

main61412-12520iAE101,EE100..HB..5D¥15,200199206-199710

main61412-12530iAE10#,EE100..LB¥15,400199205

main61412-12550iEE100..STD¥15,400199205-199505

61611PANEL, QUARTER, RH

main61601-1E690iAE10#,EE100..LB¥54,700199205

main61601-1E923iAE101,EE100..HB..5D¥45,100199206-199710

main61601-1E924iEE100..STD¥45,100199205-199505

W(SIDE PROTECTION MOULDING)

main61601-1E927iEE100..STD¥45,100199205-199505

61612PANEL, QUARTER, LH

main61602-1E590iAE10#,EE100..LB¥54,700199205

main61602-1E929iAE101,EE100..HB..5D¥45,100199206-199710

main61602-1E930iEE100..STD¥45,100199205-199505

W(SIDE PROTECTION MOULDING)

main61602-1E933iEE100..STD¥45,100199205-199505

61621DTROUGH, BACK DOOR OPENING, RH

main61621-12907iAE101,EE100..HB¥4,330199205

61622DTROUGH, BACK DOOR OPENING, LH

main61622-12907iAE101,EE100..HB¥4,330199205

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12210iAE10#,EE100¥11,700199205

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12210iAE10#,EE100¥11,700199205

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12560iEE100..STD¥20,400199205-199505

main61607-12590iAE101,EE100..HB..5D¥20,400199206-199710

main61607-12630iAE10#,EE100..LB¥22,000199205

main61607-12640iAE101..GLI¥22,200199205-199402

W(*66)

sub61607-12630¥22,000

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12540iEE100..STD¥20,400199205-199505

main61608-12570iAE101,EE100..HB..5D¥20,400199206-199710

main61608-12610iAE10#,EE100..LB¥22,000199205

main61608-12620iAE101..GLI¥22,200199205-199402

W(*66)

sub61608-12610¥22,000

61667CSEAL, QAURTER PANEL, NO.1

main61667-12050iEE100..STD¥380199205-199401

61667DSEAL, QUARTER PANEL

main61667-12050iAE101,EE100..HB¥380199205

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-12080iAE10#,EE100..LB¥5,700199205

main61713-12090iAE101,EE100..HB¥1,260199205-199710

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-12070iAE10#,EE100..LB¥5,700199205

main61714-12080iAE101,EE100..HB¥1,260199205-199710

61731BPANEL, ROOF SIDE, INNER RH

main61701-12280iAE10#,EE100..LB¥12,300199205

main61701-12280iAE102¥12,300199402-199505

W(ABS & *SNR)

main61701-12290iAE10#,EE100..LB¥12,300199205-199505

W(*SNR)

sub61701-12280¥12,300

main61731-12580iAE101,EE100..HB..5D¥12,100199206-199710

main61731-12590iEE100..STD¥12,100199205-199505

61732BPANEL, ROOF SIDE, INNER LH

main61702-12280iAE102¥12,300199402-199505

W(ABS & *SNR)

main61702-12280iAE10#,EE100..LB¥12,300199205

main61702-12290iAE10#,EE100..LB¥12,300199205-199505

W(*SNR)

sub61702-12280¥12,300

main61732-12540iAE101,EE100..HB..5D¥12,100199206-199710

main61732-12550iEE100..STD¥12,100199205-199505

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-12903iEE100..STD¥4,580199205-199505

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-12903iEE100..STD¥4,580199205-199505

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61703-12030iAE101..GLI¥2,300199505-199710

NEW ZEALAND SPEC

main61703-12030iAE102¥2,300199402-199710

main61743-12030iAE101,EE100..LB¥2,890199205

main61743-12040iAE101,EE100..HB¥2,910199205-199710

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61704-12100iAE102¥2,300199402-199710

main61704-12100iAE101..GLI¥2,300199505-199710

NEW ZEALAND SPEC

main61744-12030iAE101,EE100..LB¥2,890199205

main61744-12040iAE101,EE100..HB¥2,910199205-199710

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61703-12020iAE10#,EE100..LB¥7,000199205

main61747-12901iEE100..STD¥7,200199205-199505

main61747-12902iAE101,EE100..HB..5D¥7,200199206-199710

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61704-12070iAE10#,EE100..LB¥7,000199205

main61748-12901iEE100..STD¥7,200199205-199505

main61748-12902iAE101,EE100..HB..5D¥7,200199206-199710

61764APLATE, QUARTER WINDOW LOCK GUSSET

main61764-12060iEE100..STD¥480199205-199505

61764CPLATE, QUARTER WINDOW LOCK GUSSET

main61765-12070iEE100..STD¥480199205-199505

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-12270iAE101,EE100..HB¥1,360199205

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-12230iAE101,EE100..HB¥1,360199205

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-12030iAE101,EE100..HB..5D¥2,640199206

main61771-12040iEE100..STD¥2,560199205-199505

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-12030iAE101,EE100..HB..5D¥2,640199206

main61772-12040iEE100..STD¥2,560199205-199505

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32020iAE101,EE100..HB¥760199205

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iAE101,EE100..HB¥220199205

main61824-12040iAE101,EE100..HB..5D¥220199206

W(*SNR)

61824CPAD, NOISE SHUTTER, NO.1

main61824-12040iAE10#,EE100..LB¥220199205

W(SUN ROOF)

main61826-12020iAE101,EE100..HB..5D¥160199205-199710

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE10#,EE100..LB¥190199205

main61825-12040iAE101,EE100..HB¥1,460199205-199710

61825CPAD, NOISE SHUTTER, NO.2

main61815-32020iAE101,EE100..HB¥760199205-199710

main61825-12010iAE101,EE100..LB¥190199205-199401

61826DPLATE, NOISE CONTROL, NO.3

main61824-12040iAE101,EE100..HB¥220199205-199710

main61824-12040iAE101,EE100..HB..5D¥220199206-199710

W(*SNR)

main61827-12030iAE10#,EE100..LB¥200199205

9010508120

main90105-08120¥90

9017908102

main90179-08102¥160

9033340001

main90333-40001¥100

9095001130

main90950-01130¥390

9095001345

main90950-01345¥400

9095001352

main90950-01352¥270

9095001580

main90950-01580¥230

9095001784

main90950-01784¥190

9095001826

main90950-01826¥110

70 parts on this diagram · 3 diagrams in section
