FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-12140iAE101..GLI199205-199211

main58041-12150iAE10#..GLI199211-199505

main58151-12200iAE101..GLI;AE102..ARL199505

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12110iAE101..GLI199205-199211

main58153-12120iAE101..GLI;AE102..ARL199211-199611

main58153-12140iAE101..GLI199611

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-12010iEE100..HB;AE101..GLI,XLI199205-199207

main58044-12040iAE10#,EE100199211

58327BINSULATOR, MAIN MUFFLER HEAT

main58031-12070iAE101..GLI199205-199207

main58031-12090iAE10#,EE100..LB199211

main58327-12130iAE101,EE100..HB199205-199710

9011906741

main90119-06741

9017906169

main90179-06169

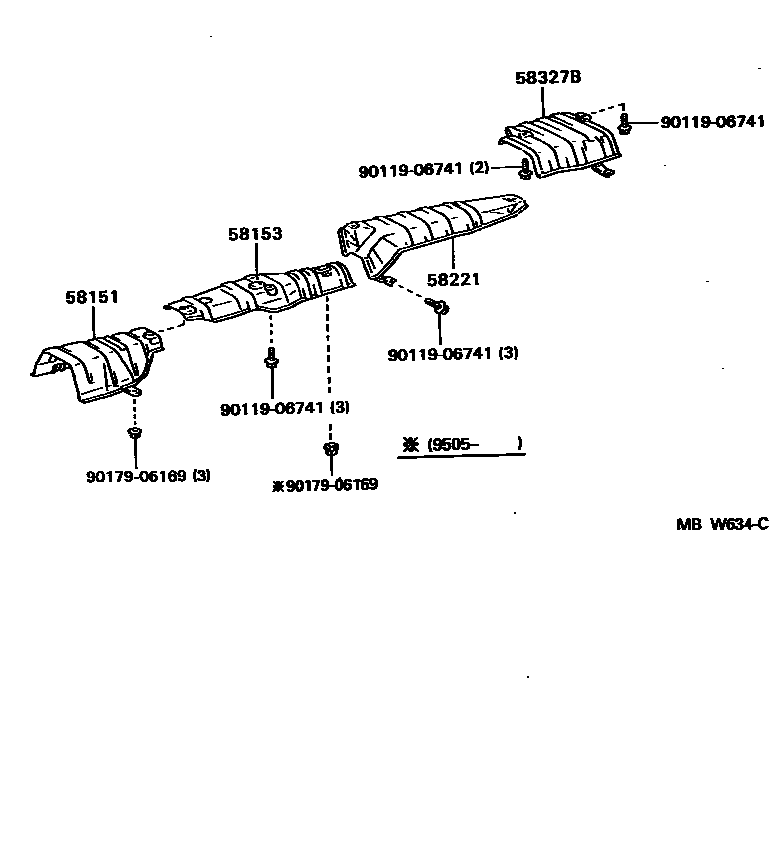

6 parts on this diagram · 1 diagram in section
